Quarter Lower Rear Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

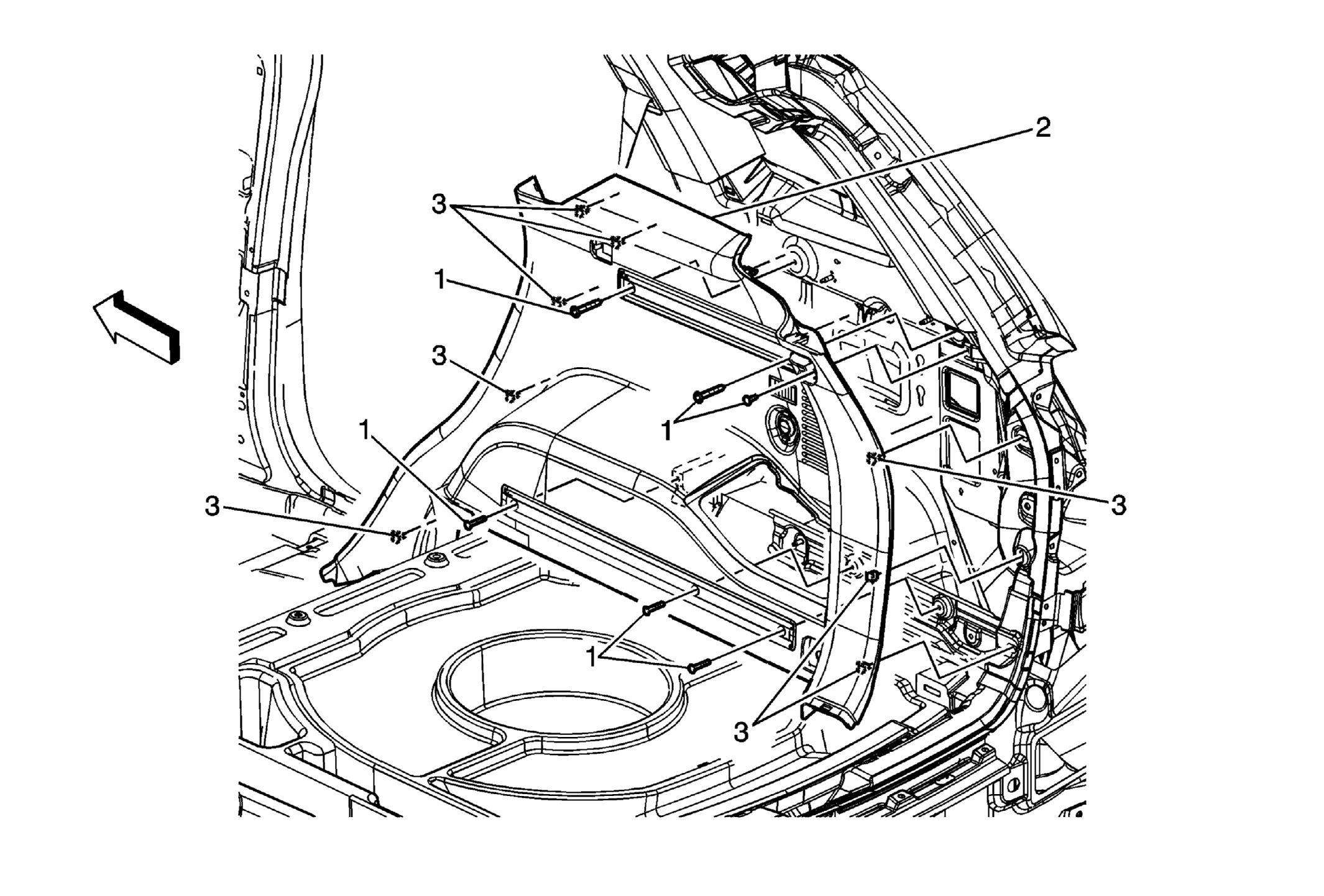

Fig 1: Rear Quarter Lower Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the cargo accessory shelves, if equipped. Remove the rear seat belt anchor bolt. Refer to Rear Seat Belt Replacement . Remove the liftgate door sill plate. Refer to Liftgate Door Sill Plate Replacement . Rotate the rear seats to the forward position.
1	Rear Quarter Lower Trim Panel Retaining Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 6 N.m (53 lb in)
2	Rear Quarter Lower Trim Panel Assembly Procedure: Disconnect the electrical connectors.
3	Rear Quarter Lower Trim Panel Retainer (Qty: 6)
