Front Fender Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

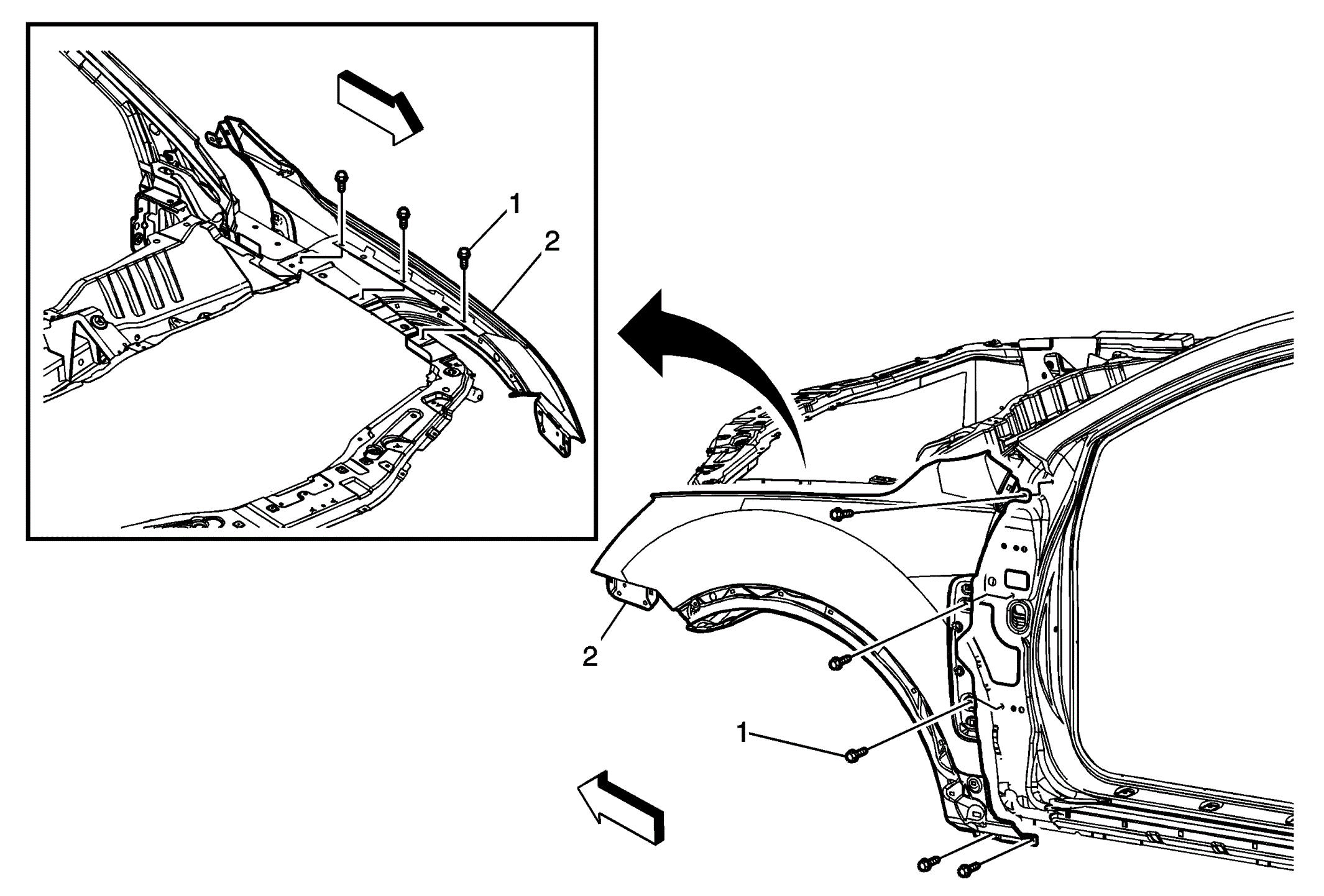

Fig 1: Front Fender
GM1896290Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the bumper fascia. Refer to Front Bumper Fascia Replacement (Base) or Front Bumper Fascia Replacement (Red Line) .
  2. Remove Front Fender Wheel Opening Molding. Refer to Front Fender Wheel Opening Molding Replacement .
  3. Remove the wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  4. Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement .
  5. Remove the front fender center molding. Refer to Front Fender Center Molding Replacement .
1 Front Fender Bolt (Qty: 9)
CAUTION: Refer to Fastener Caution .

Tighten:  9 N.m (80 lb in)
2 Front Fender
