Rocker Panel Molding Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

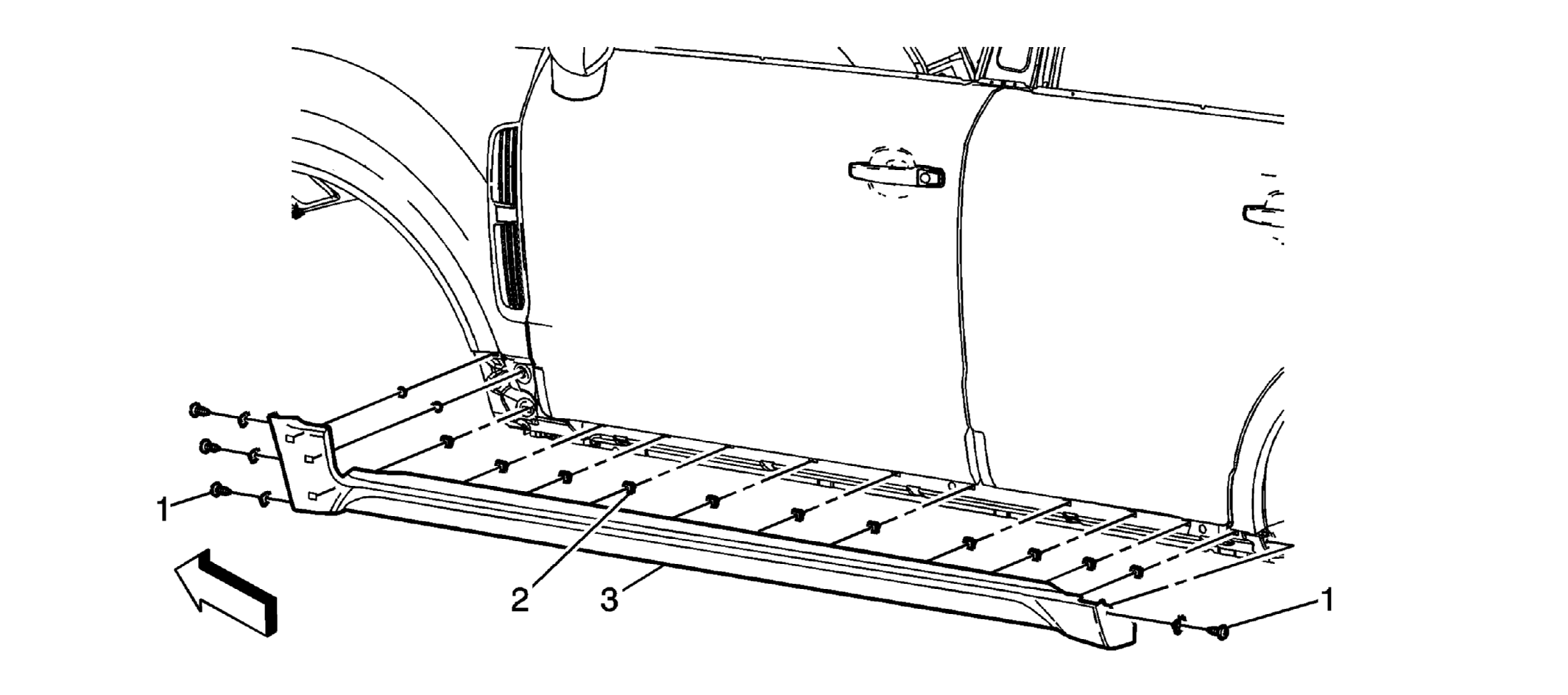

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Open the bodyside doors on the side the lower rocker moldings will be serviced from. |
|
| 1 | Lower Rocker Molding Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 1.5 N.m (13 lb in) |
| 2 | Rocker Panel Molding Retainer (Qty: 18) Procedure: Release the 7 lower retainers first followed by the 11 upper retainers. |
| 3 | Rocker Panel Molding Assembly |
