Air Conditioning Condenser Replacement (Without HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

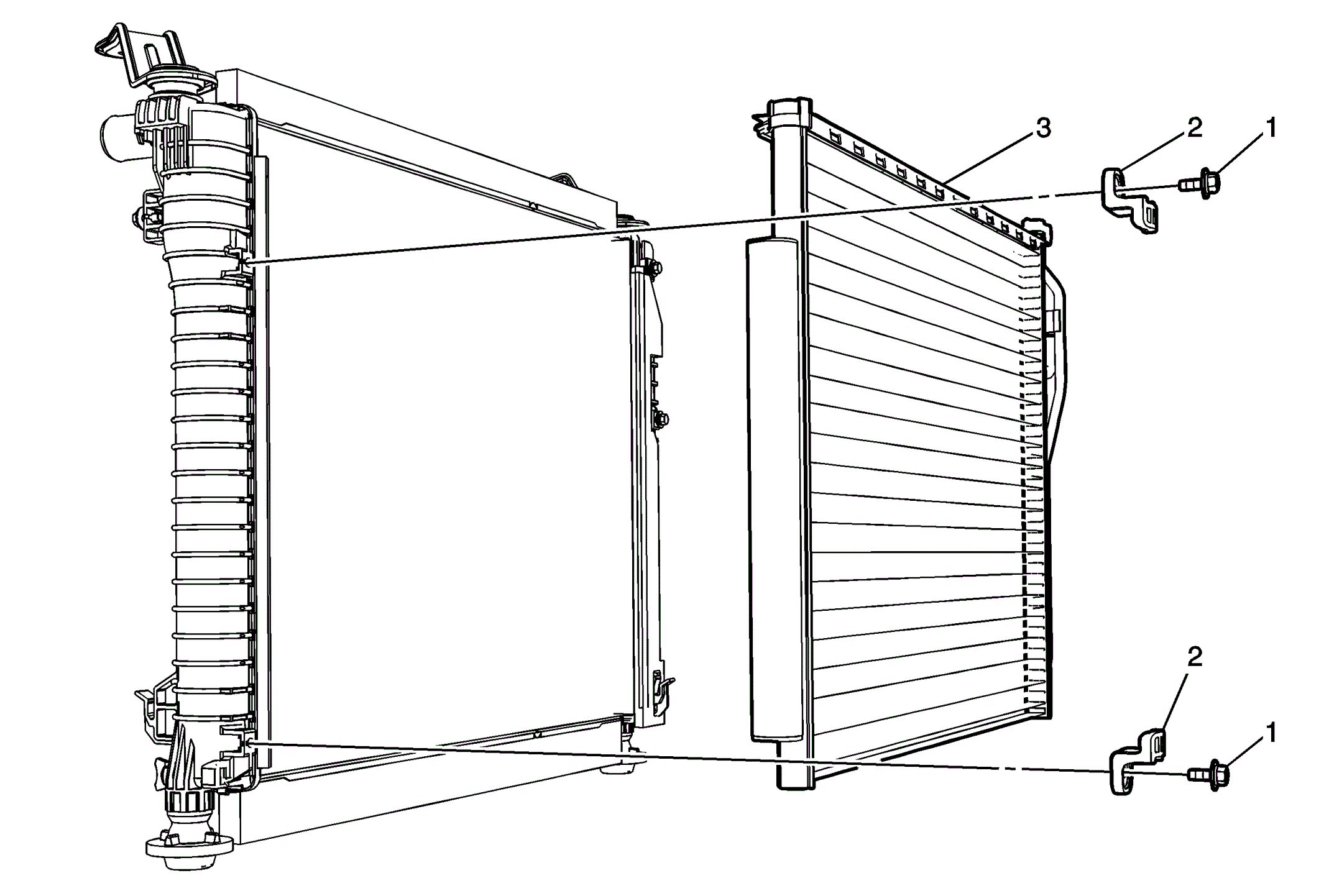

Fig 1: Air Conditioning Condenser

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (With HP5) or Refrigerant Recovery and Recharging (Without HP5) . Remove the radiator opening upper cover. Refer to Radiator Opening Upper Cover Replacement . Remove the A/C compressor hose at condenser. Refer to Air Conditioning Compressor Hose Replacement (LZ4) or Air Conditioning Compressor Hose Replacement (LAT) or Air Conditioning Compressor Hose Replacement (LY7) or Air Conditioning Compressor Hose Replacement (LE5) . Remove the A/C liquid line at condenser. Refer to Air Conditioning Condenser and Air Conditioning Evaporator Tube Replacement (HP5) or Air Conditioning Condenser and Air Conditioning Evaporator Tube Replacement (LAT) or Air Conditioning Condenser and Air Conditioning Evaporator Tube Replacement (LE5, LZ4, LY7) .
1	Condenser Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 5 N.m (44 lb in)
2	Condenser Bracket
3	Condenser Assembly Procedure: Slide condenser to the right and upward to remove.
