Removal & Installation (Side Impact)

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. For driver side impact air bag module, see ZONE 7  under DISABLING & ACTIVATING AIR BAG SYSTEM.. For passenger side impact air bag module, see ZONE 9  under DISABLING & ACTIVATING AIR BAG SYSTEM..
  2. Remove applicable front seat. Remove "J" clips from seat back. Remove plastic moulding that holds air bag module to seat back. Make note of wire harness routing for installation. See Fig 4. Remove side impact air bag module from seat back.
  3. To install, reverse removal procedure. Ensure wiring harness is routed correctly. Tighten seat mounting bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. For passenger side impact air bag module, see ZONE 9  under DISABLING & ACTIVATING AIR BAG SYSTEM.. For driver side impact air bag module, see ZONE 7  under DISABLING & ACTIVATING AIR BAG SYSTEM..
Fig 1: Identifying Air Bag Remover
G99H23397Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Driver-side Air Bag Module
G99J23399Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Passenger-side Air Bag Module
G98J13473Courtesy of GENERAL MOTORS CORP.

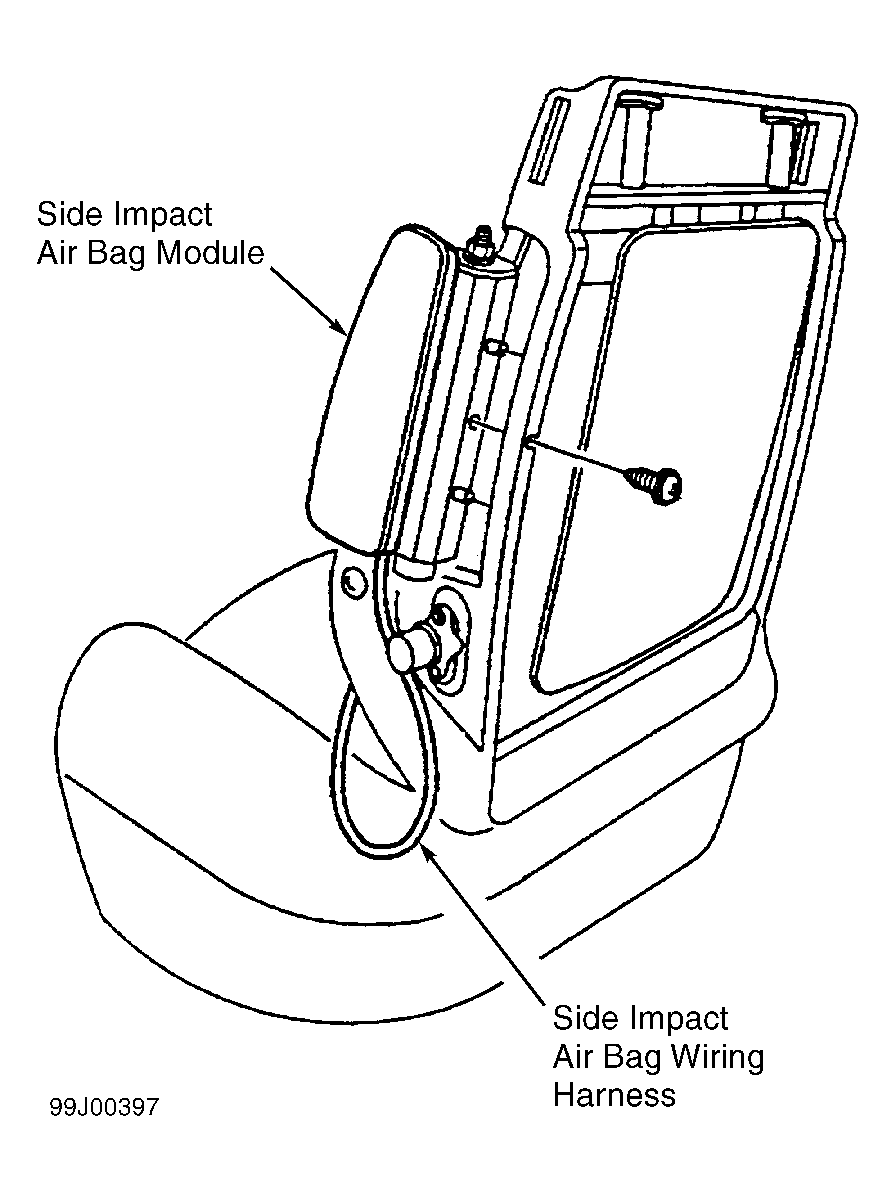

Fig 4: Identifying Side Impact Air Bag Module
G99J00397Courtesy of GENERAL MOTORS CORP.
