Steering Shaft, Lower Bearing, and Jacket - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply lithium grease to the exposed shaft engagement areas and then install the steering shaft to the centering sphere.

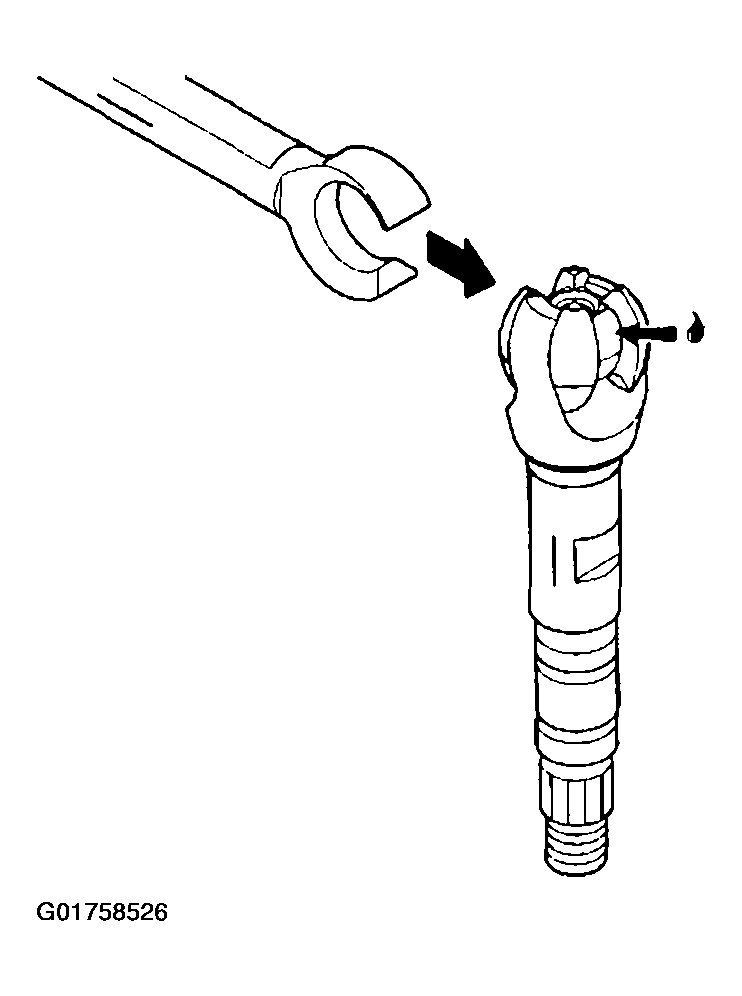

    Fig 1: Installing Steering Shaft To Centering Sphere
    G01758526Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE

    Important:  Replace steering column support assembly after column has been staked 3 times.

  2. Install the steering column support assembly (2) to the steering column jacket assembly (3) by using the 4 Torx® head screws (1).

    Tighten

    Tighten the screws to 17 N.m (13 lb ft).

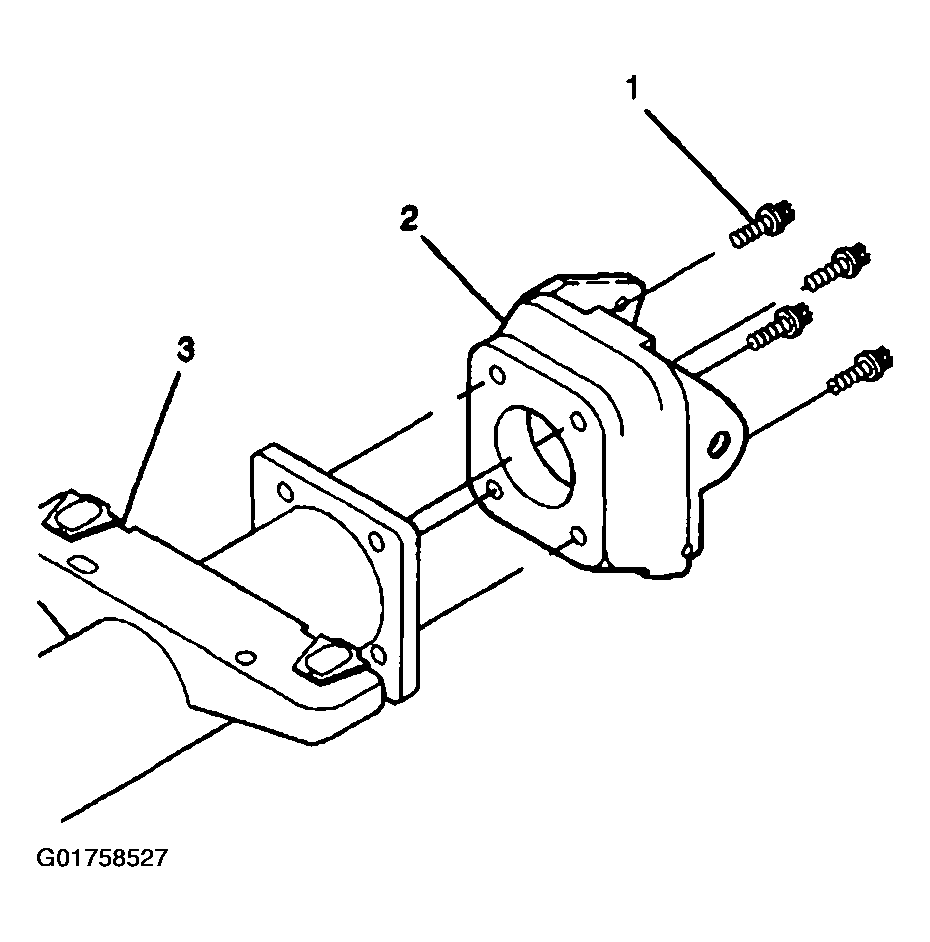

    Fig 2: Installing Torx® Head Screws, Steering Column Support Assembly And Steering Column Jacket Assembly
    G01758527Courtesy of GENERAL MOTORS CORP.
  3. Install the steering shaft assembly to the steering column jacket assembly.

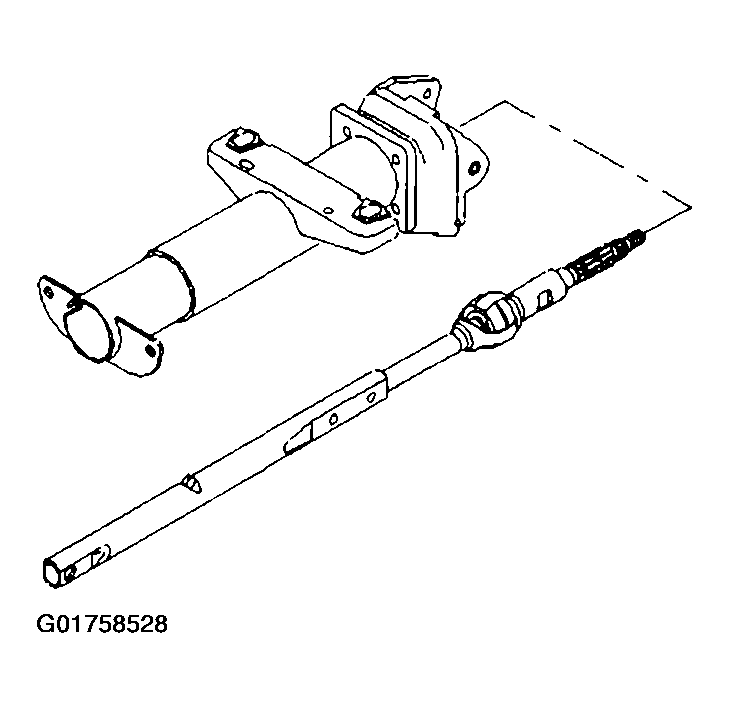

    Fig 3: Installing Steering Shaft Assembly To Steering Column Jacket Assembly
    G01758528Courtesy of GENERAL MOTORS CORP.
  4. Install the upper tilt head assembly onto the steering column support assembly.

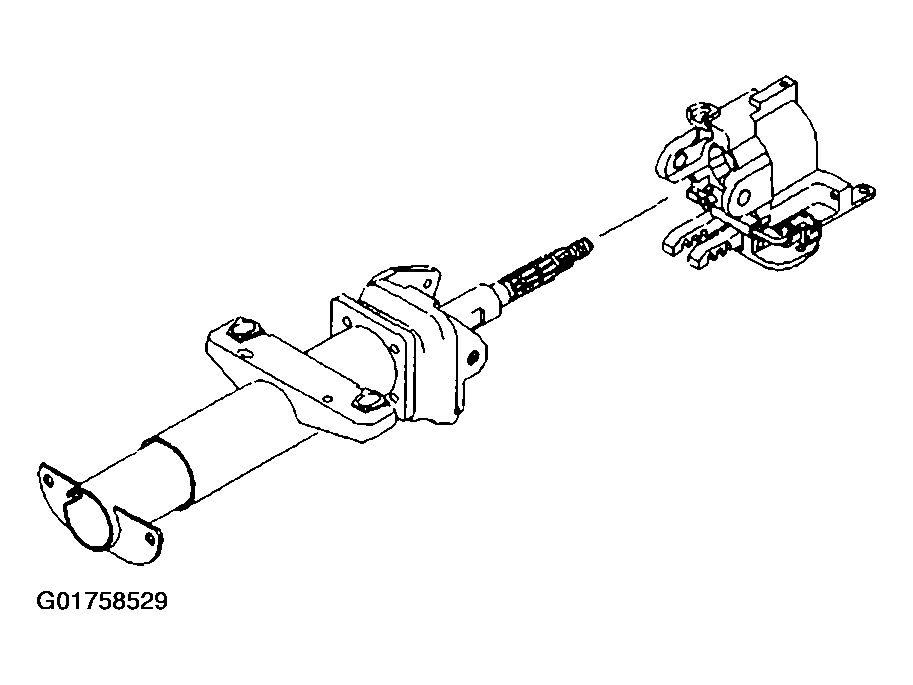

    Fig 4: Installing Upper Tilt Head Assembly Onto Steering Column Support Assembly
    G01758529Courtesy of GENERAL MOTORS CORP.
  5. Install the 2 pivot pins (1).

    Stake the pivot pins in 3 locations.

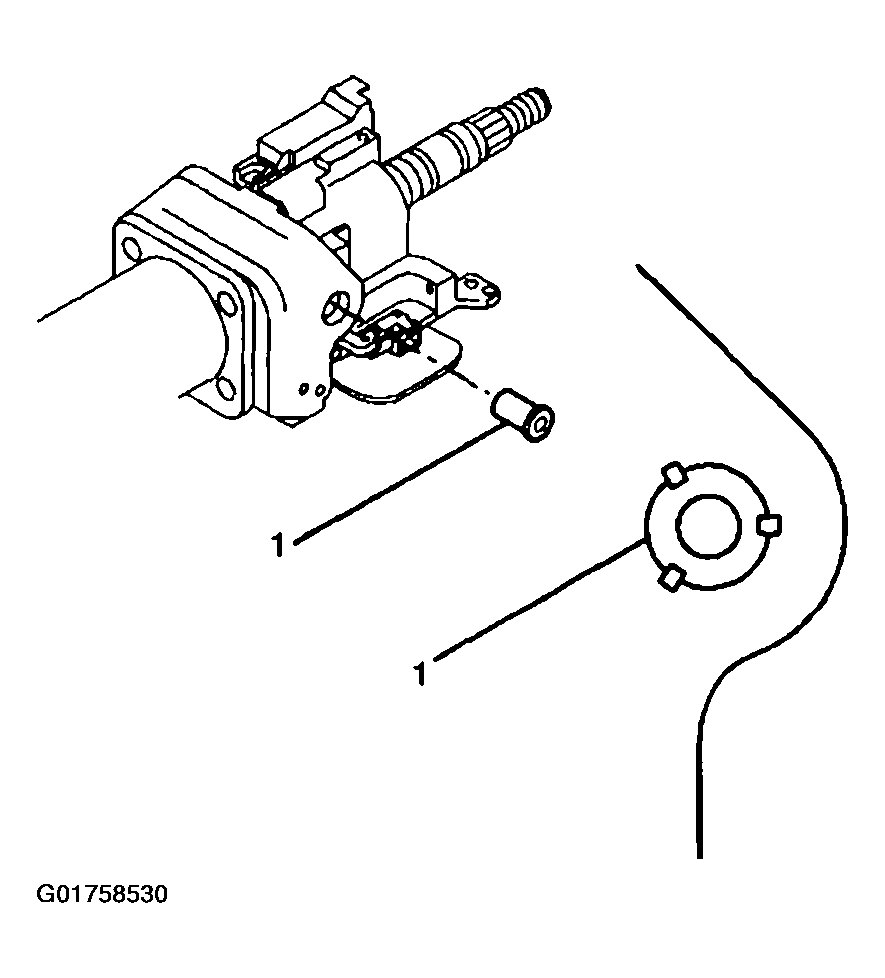

    Fig 5: Installing Pivot Pins
    G01758530Courtesy of GENERAL MOTORS CORP.
  6. Install the adapter and bearing assembly (4).
  7. Install the lower bearing seat (3). The lower bearing seat must be in contact with the adapter and bearing assembly.
  8. Install the lower bearing spring (2).
  9. Install the lower spring retainer (1).

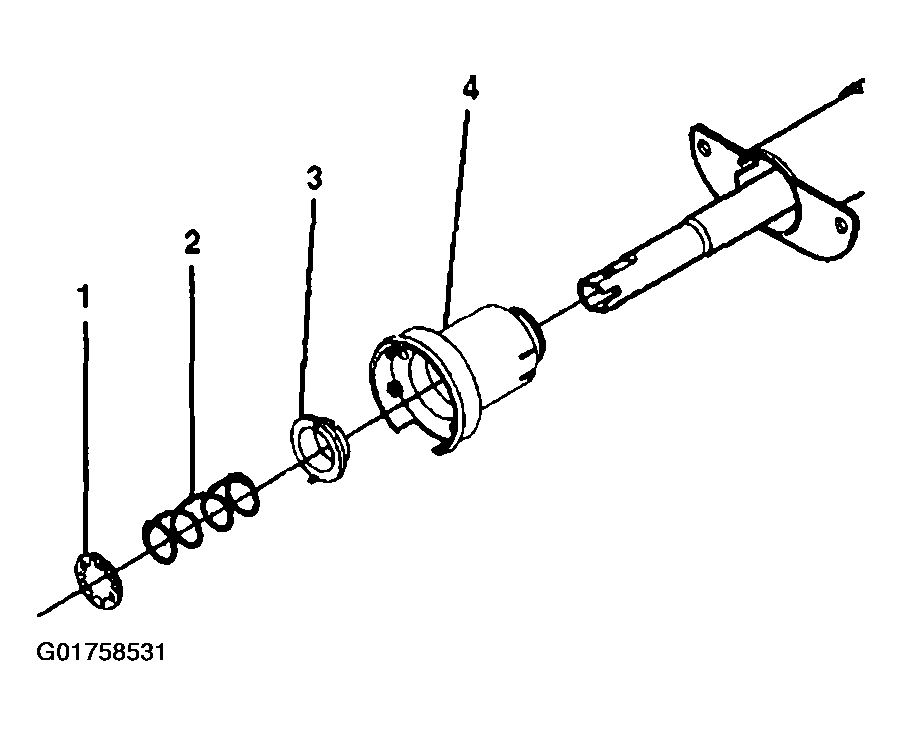

    Fig 6: Installing Lower Spring Retainer, Bearing Spring, Bearing Seat And Bearing Assembly
    G01758531Courtesy of GENERAL MOTORS CORP.
  10. Press the lower spring retainer (1) to compress the lower bearing spring (2).
  11. Measure the distance from the adapter and bearing assembly (3) to the lower spring retainer (1).
  12. The spring height must equal 15.00 mm (0.6 in).

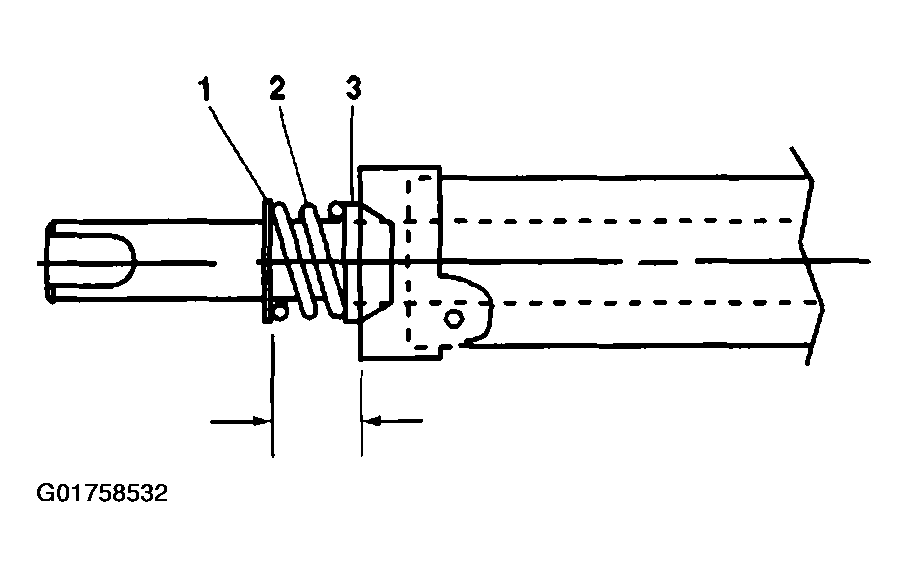

    Fig 7: Lower Spring Retainer, Bearing Spring, Adapter And Bearing Assembly
    G01758532Courtesy of GENERAL MOTORS CORP.
  13. The upper steering shaft assembly must be rotated to the center position with the block tooth (1) in the 12 o'clock position.

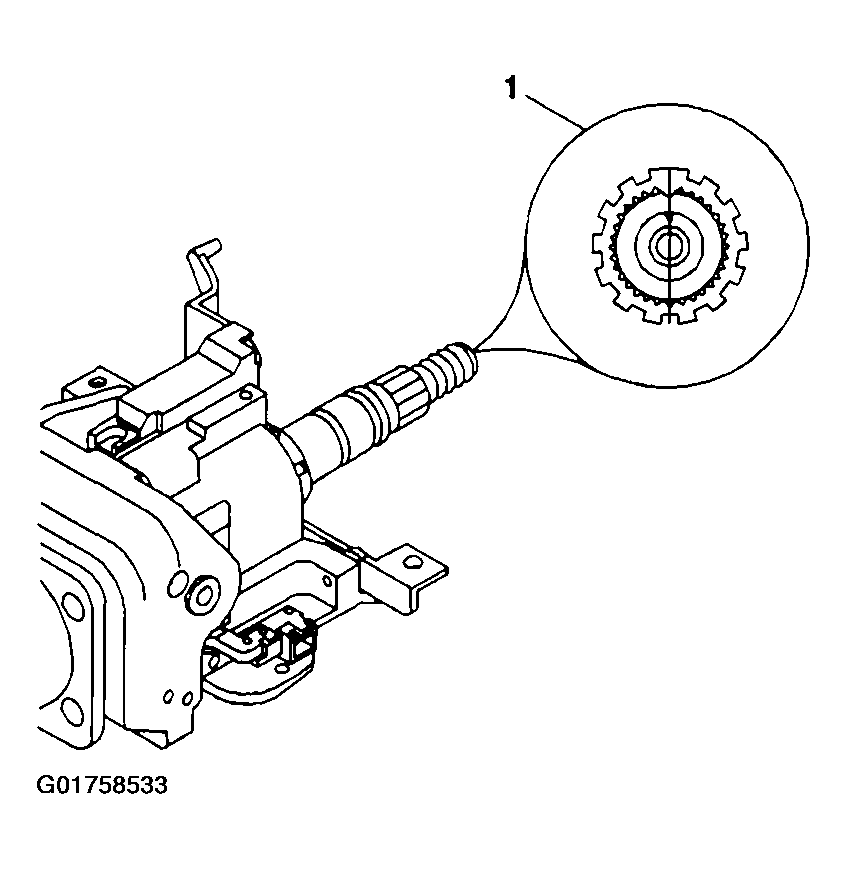

    Fig 8: Block Tooth
    G01758533Courtesy of GENERAL MOTORS CORP.
  14. Install the bosch sensor (1).

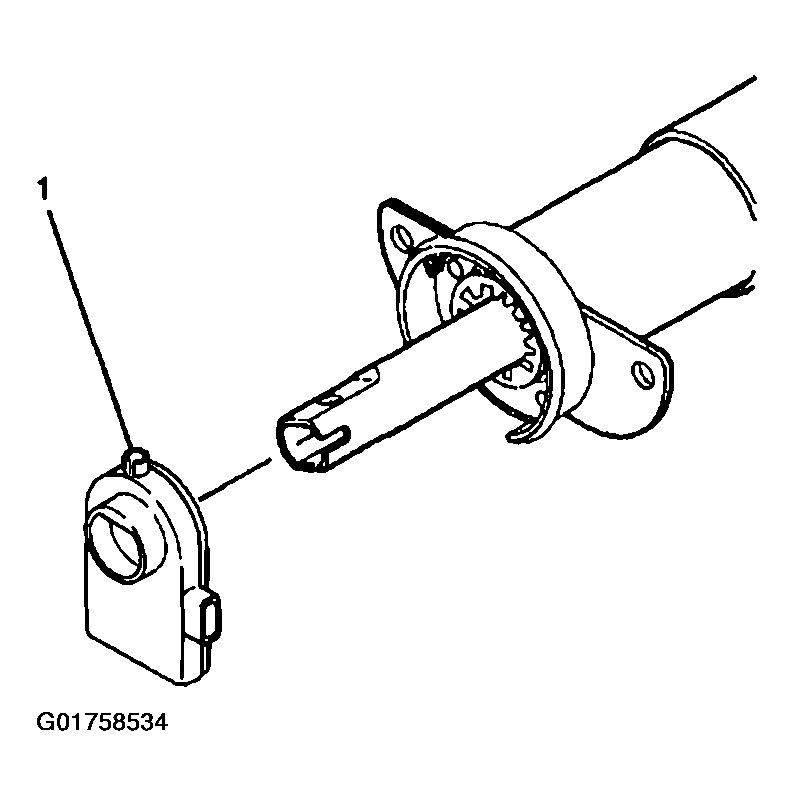

    Fig 9: Installing Bosch Sensor
    G01758534Courtesy of GENERAL MOTORS CORP.
  15. Install the sensor retainer (1). Align the slots of the sensor retainer to the ribs of the adapter and bearing assembly. Push the sensor retainer (1) until it contacts the analog extended range sensor assembly.
  16. Install the steering shaft seal (2).
  17. Install the tilt spring assembly. Refer to Tilt Spring - Assemble - Off Vehicle
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION
  18. Install the turn signal and multifunction switch assembly. Refer to Turn Signal and Multifunction Switch Assembly - Assemble - Off Vehicle

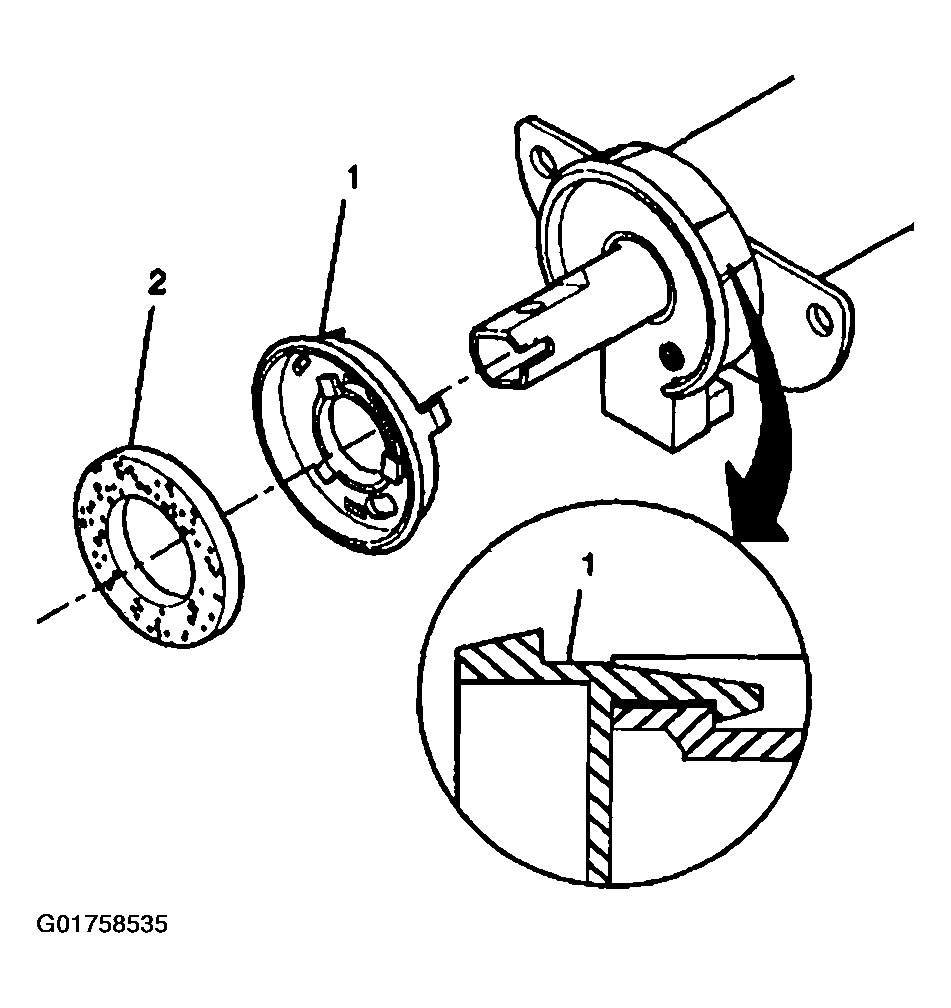

    Fig 10: Installing Sensor Retainer And Steering Shaft Seal
    G01758535Courtesy of GENERAL MOTORS CORP.
  19. Install the windshield wiper and washer switch assembly. Refer to Windshield Wiper and Washer Switch Assembly - Assemble - Off Vehicle
  20. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM in SIR.
