Windshield Wiper and Washer Switch Assembly - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE

Install the signal switch housing assembly (2) and secure by using 3 pan head tapping screws (1).
Tighten

Tighten the screws to 7 N.m (62 lb in).

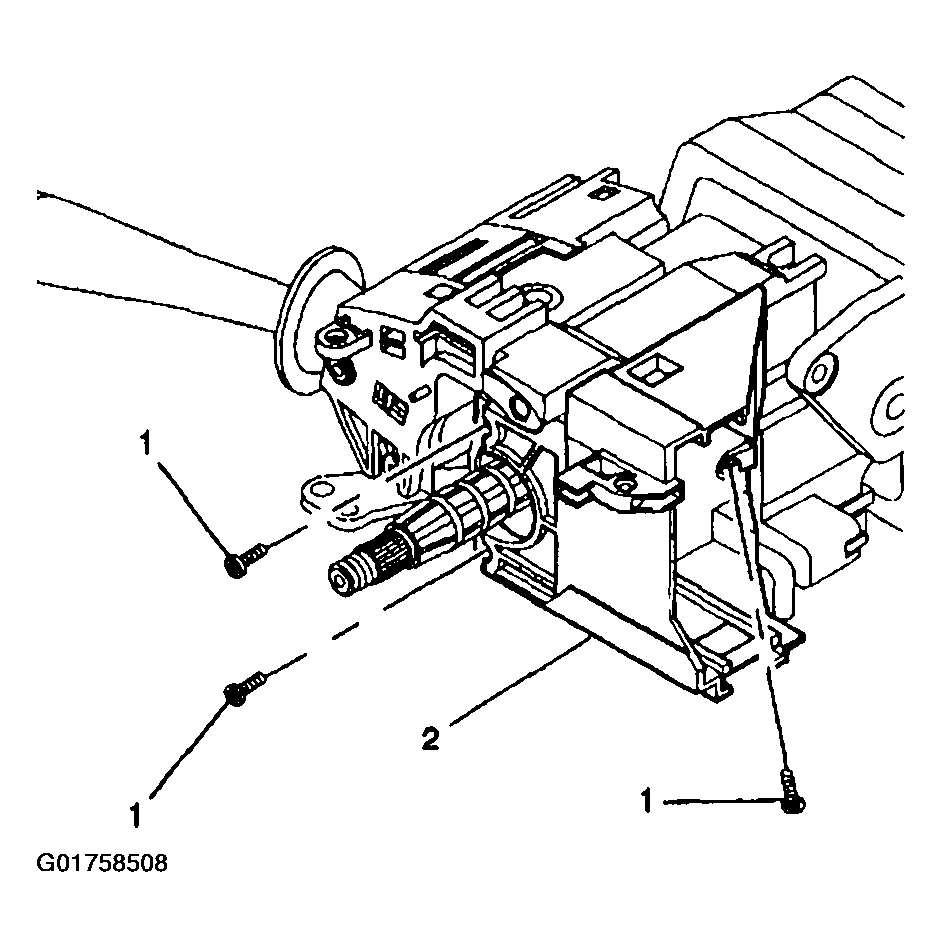

Fig 1: Installing Signal Switch Housing Assembly And Pan Head Tapping Screws
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION
Install windshield wiper and washer switch assembly to signal switch housing assembly.
Install the steering column tilt head housing. Refer to Steering Column Tilt Head Housing - Assemble - Off Vehicle
Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM in SIR.

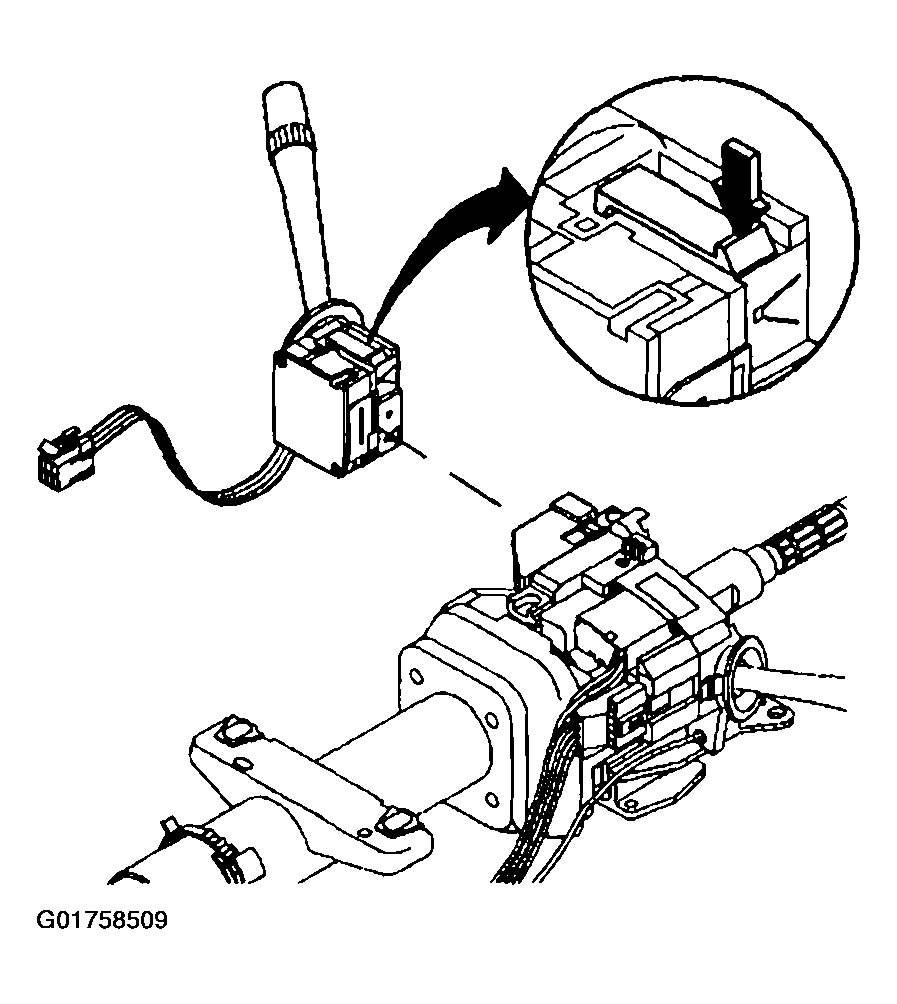

Fig 2: Installing Windshield Wiper And Washer Switch Assembly
Courtesy of GENERAL MOTORS CORP.
