Tilt Spring - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the spring guide to the tilt spring. Lubricate with synthetic grease.

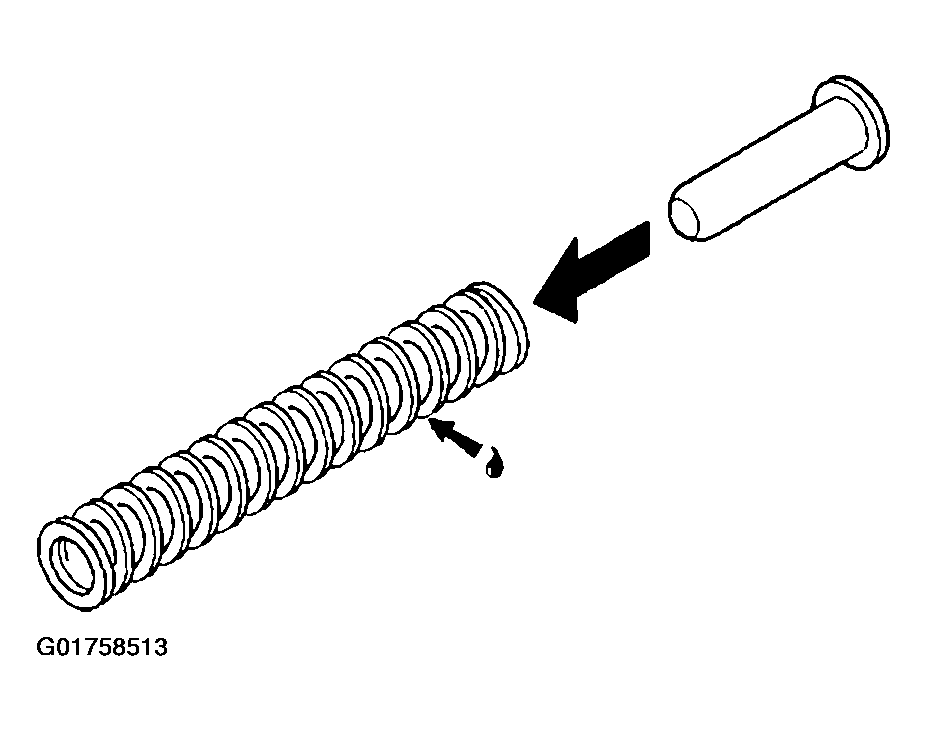

    Fig 1: Installing spring guide to tilt spring
    G01758513Courtesy of GENERAL MOTORS CORP.
    CAUTION: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal. Secure the spring with locking pliers during installation. Bodily injury may result during removal and installation of the tilt spring and the spring guide. Always use caution during removal and installation of the tilt spring and the spring guide.
  2. Install the tilt spring (1).
    1. 2.1. Install the tilt spring (1) to the post on the steering column support assembly (2).
    2. 2.2. Secure the tilt spring (1).
  3. Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle
  4. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM in SIR.

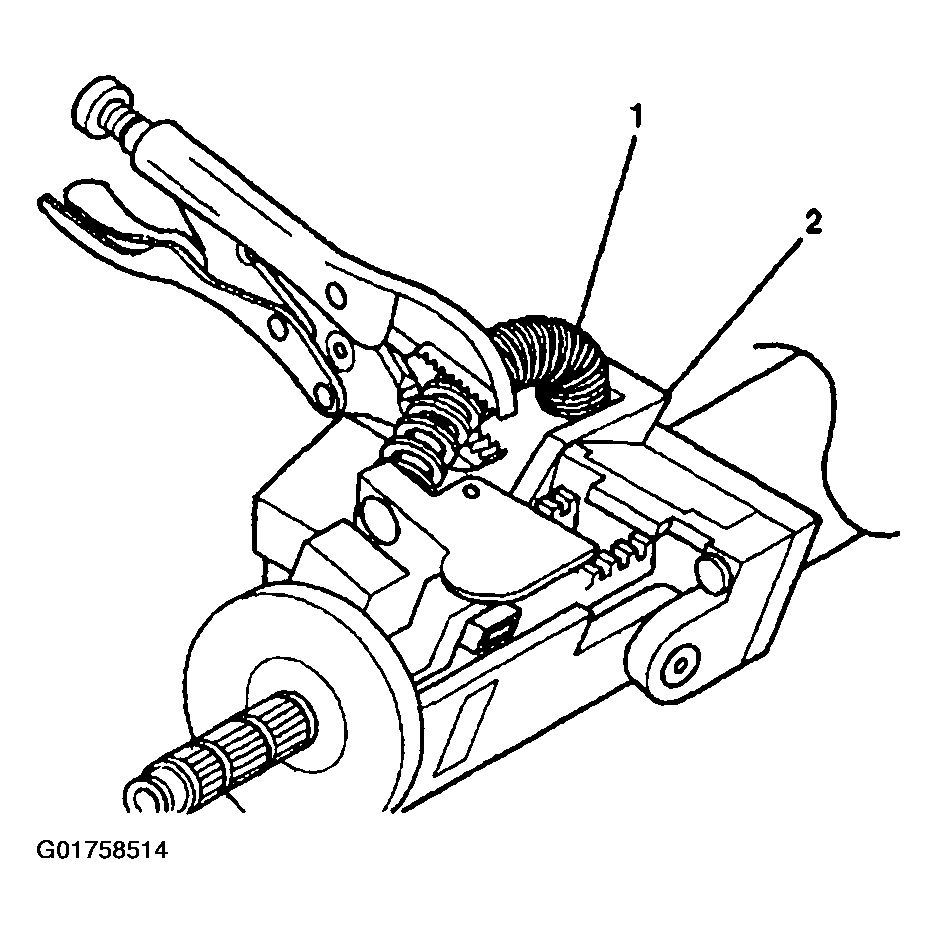

    Fig 2: Installing Tilt Spring To Steering Column Support Assembly Post
    G01758514Courtesy of GENERAL MOTORS CORP.
