Fastener Specifications
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Callouts in the following chart represent components shown in graphic above.

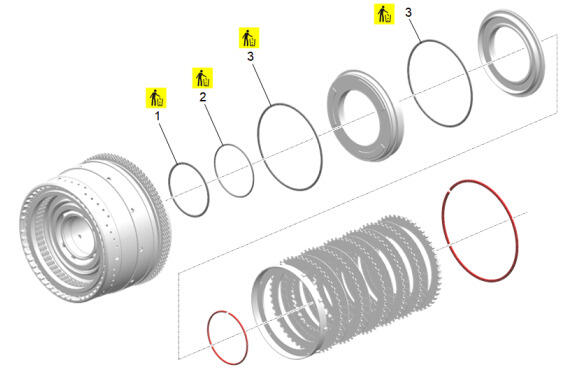

1-2-3-4-6-7-8-10 Reverse Clutch Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal- Inner | Yes | - | - | Triple Clutch Housing Assemble |
| 2 | 1-2-3-4-6-7-8-10-Reverse Clutch Piston Dam Seal | Yes | - | - | Triple Clutch Housing Assemble |
| 3 | 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal- Outer [2x] | Yes | - | - | Triple Clutch Housing Assemble |
NOTE:
Callouts in the following chart represent components shown in graphic above.

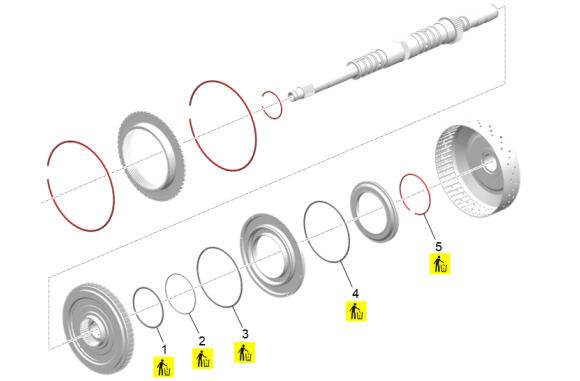

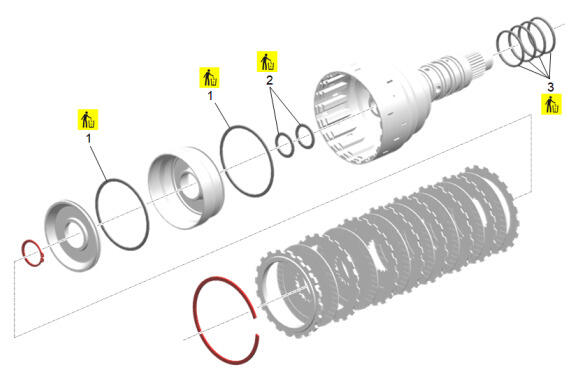

1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | 1-3-5-6-7-8-9 Clutch Piston Seal- Inner | Yes | - | - | 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble |
| 2 | 1-3-5-6-7-8-9 Clutch Piston Dam Seal- Inner | Yes | - | - | 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble |
| 3 | 1-3-5-6-7-8-9 Clutch Piston Seal- Outer | Yes | - | - | 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble |
| 4 | 1-3-5-6-7-8-9 Clutch Piston Dam Seal- Outer | Yes | - | - | 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble |
| 5 | 1-3-5-6-7-8-9 Clutch Piston Dam Retaining Ring | Yes | - | - | 1-3-5-6-7-8-9 Clutch Hub and Output Sun Gear Assemble |
NOTE:
Callouts in the following chart represent components shown in graphic above.

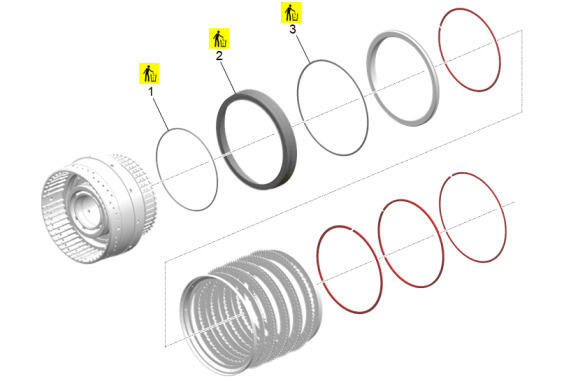

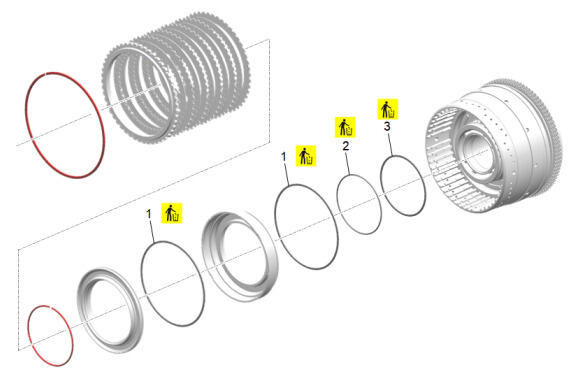

2-3-4-5-7-9-10 Clutch Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | 2-3-4-5-7-9-10 Clutch Piston Seal- Outer [2x] | Yes | - | - | Triple Clutch Housing Assemble |
| 2 | 2-3-4-5-7-9-10 Clutch Piston Dam Seal | Yes | - | - | Triple Clutch Housing Assemble |
| 3 | 2-3-4-5-7-9-10 Clutch Piston Seal- Inner | Yes | - | - | Triple Clutch Housing Assemble |
NOTE:
Callouts in the following chart represent components shown in graphic above.
4-5-6-7-8-9-10 Reverse Clutch Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | 4-5-6-7-8-9-10-Reverse Clutch Piston Dam Seal- Inner | Yes | - | - | Triple Clutch Housing Assemble |
| 2 | 4-5-6-7-8-9-10-Reverse Clutch Piston | Yes | - | - | Triple Clutch Housing Assemble |
| 3 | 4-5-6-7-8-9-10-Reverse Clutch Piston Dam Seal- Outer | Yes | - | - | Triple Clutch Housing Assemble |
NOTE:
Callouts in the following chart represent components shown in graphic above.

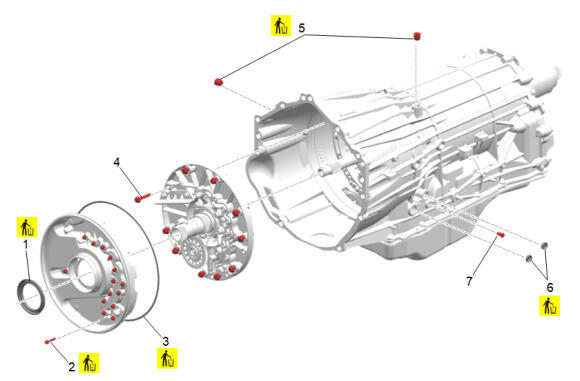

Automatic Transmission Case and Associated Components 1 of 2
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Torque Converter Fluid Seal | Yes | - | - | Torque Converter Fluid Seal Installation |
| 2 | Automatic Transmission Case Front Cover Bolt M6 x 30 [15x] | - | - | Automatic Transmission Case Front Cover Bolt Tightening Sequence | Automatic Transmission Case Front Cover Installation |
| 3 | Automatic Transmission Case Front Cover Seal | Yes | - | - | Automatic Transmission Case Front Cover Installation |
| 4 | Automatic Transmission Case Cover Bolt M8 x 45 [10x] | - | - | Stator Shaft Support Assembly Bolt Tightenine Sequence | Stator Shaft Support Installation (with M1F) , or Stator Shaft Support Installation (without M1F) |
| 5 | Automatic Transmission Case Hole PlugM8 x 1.5 [2x] | Yes | - | 40 N.m (30 lb ft) | Automatic Transmission Case Plug Installation |
| 6 | Transmission Fluid Cooler Pipe Fitting Seal [2x] | Yes | - | - | Transmission Fluid Cooler Pipe Fitting Seal Installation |
| 7 | Automatic Transmission Fluid Pressure Test Hole Plug1/8-27 NPTF | - | - | 11 N.m (97 lb in) | Automatic Transmission Fluid Pressure Test Hole Plug Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

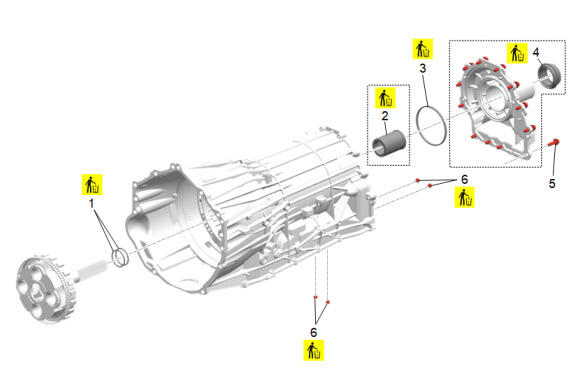

Automatic Transmission Case and Associated Components 2 of 2
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Output Shaft Seal [2x] | Yes | - | - | Output Carrier Assembly and Output Carrier Thrust Bearings Installation (2WD) , or Output Carrier Assembly and Output Carrier Thrust Bearings Installation (4WD) |
| 2 | Propeller Shaft Oil Seal Sleeve-Model Dependent | Yes | - | - | Propeller Shaft Oil Seal Sleeve Installation (2WD) |
| 3 | Automatic Transmission Case Extension Seal | Yes | - | - | Case Extension Assembly Installation |
| 4 | Propeller Shaft Transmission Flange Fluid Seal-Model Dependent | Yes | - | - | Case Extension Assemble |
| 5 | Automatic Transmission Case Extension Bolt M10 x 35 [12x] | - | - | Automatic Transmission Case Extension Bolt Tightening Sequence | Case Extension Assembly Installation |
| 6 | Automatic Transmission Case PlugM10 x 1.25 [4x] | Yes | - | 15 N.m (11 lb ft) | Automatic Transmission Case Plug Installation |
NOTE:
Callouts in the following chart represent components shown in graphic above.

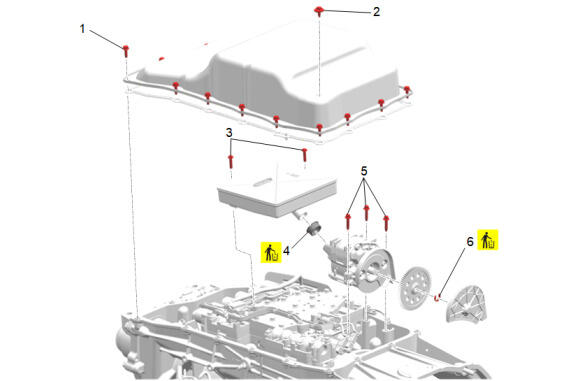

Automatic Transmission Fluid Pan, Automatic Transmission Fluid Filter, and Automatic Transmission Fluid Pump
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Transmission Fluid Pan Bolt M6 x 20.65 [16x] | - | - | Automatic Transmission Fluid Pan Bolt Tightenine Sequence | Transmission Fluid Pan and Filter Assembly Installation |
| 2 | Automatic Transmission Fluid Filter Bolt M6 x 25 [2x] | - | - | 5 N.m (44 lb in) | Transmission Fluid Pan and Filter Assembly Installation |
| 3 | Automatic Transmission Fluid Pump Seal | Yes | - | - | Automatic Transmission Fluid Pump Installation |
| 4 | Automatic Transmission Fluid Pump Bolt M6 x 28.6 [3x] | - | - | 8 N.m (71 lb in) | Automatic Transmission Fluid Pump Installation |
| 5 | Automatic Transmission Fluid Pump Drive Shaft Retaining Ring | Yes | - | - | Automatic Transmission Fluid Pump Driven Gear Installation |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Automatic Transmission Range Selector Lever Bracket Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Transmission Range Selector Lever Cable Bracket Bolt | - | - | 22 N.m (16 lb ft) | Automatic Transmission Range Selector Lever Cable Bracket Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Fluid Cooler Pipe Bracket
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Stud | - | - | 22 N.m (16 lb ft) | Transmission Replacement (4WD, L5P, NQH) , or Transmission Replacement (4WD, L5P, NQF) , or Transmission Replacement (2WD, L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

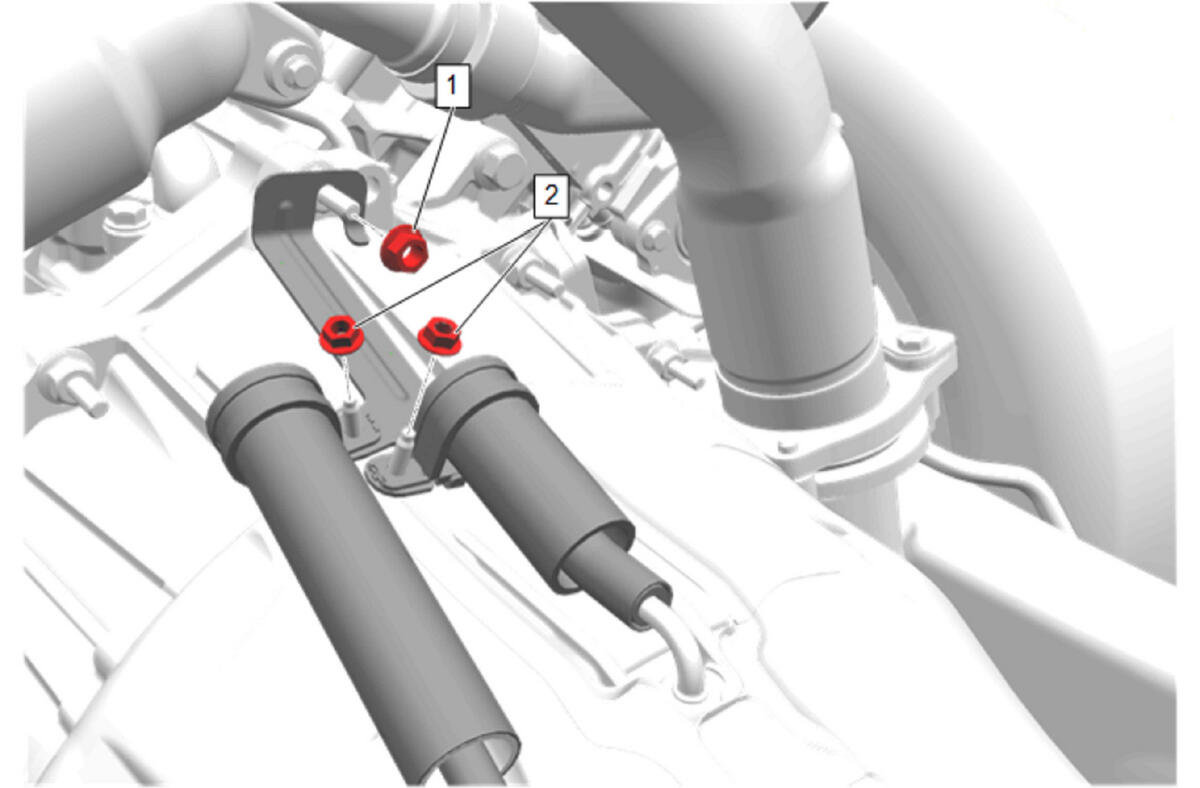

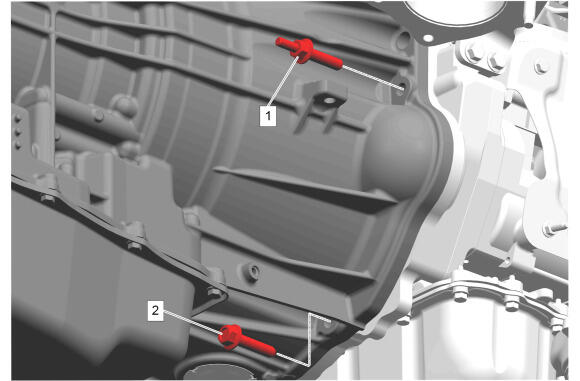

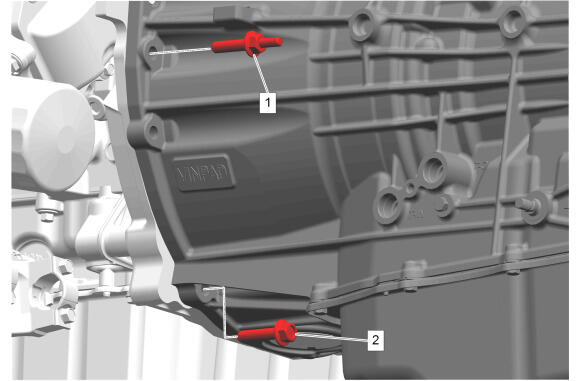

Automatic Transmission Range Selector Lever Cable at Transmission
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Transmission Range Selector Lever Cable Bolt | - | - | 9 N.m (80 lb in) | Automatic Transmission Range Selector Lever Cable Replacement |
| 2 | Automatic Transmission Range Selector Lever Cable Bolt | - | Yes | 9 N.m (80 lb in) | Automatic Transmission Range Selector Lever Cable Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

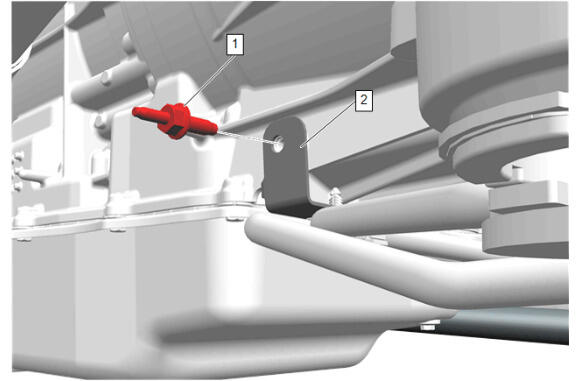

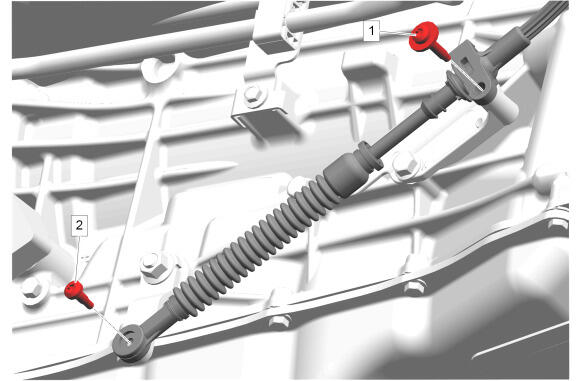

Automatic Transmission Range Selector Lever Cable at Transmission Control
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Transmission Range Selector Lever Cable Bracket Bolt | - | - | 9 N.m (80 lb in) | Automatic Transmission Range Selector Lever Cable Replacement |
| 2 | Automatic Transmission Range Selector Lever Cable Bolt | - | Yes | 9 N.m (80 lb in) | Automatic Transmission Range Selector Lever Cable Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

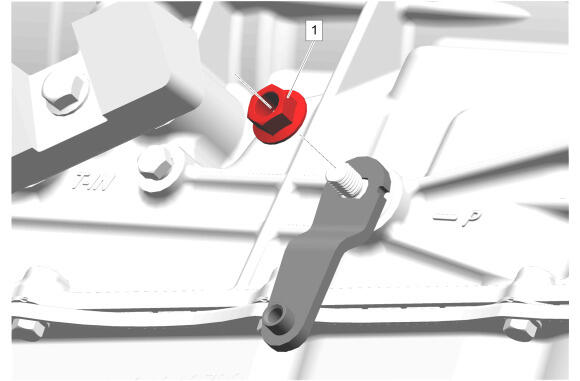

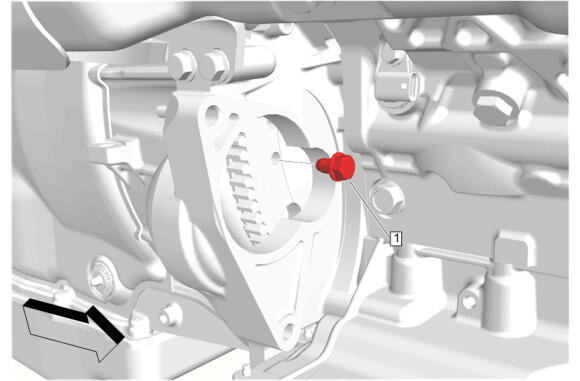

Automatic Transmission Range Selector Lever Cable Lever Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Transmission Range Selector Lever Cable Lever Nut | - | - | 30 N.m (22 lb ft) | Automatic Transmission Range Selector Lever Cable Lever Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

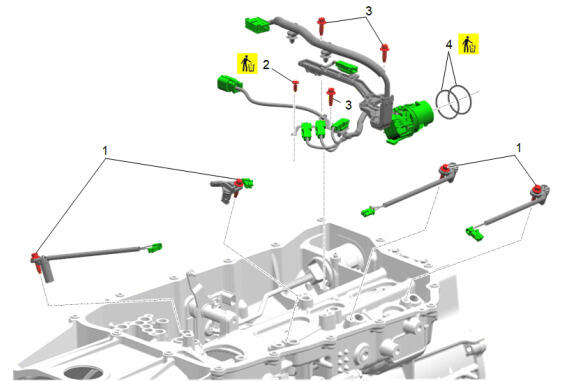

Automatic Transmission Wiring Harness and Associated Components
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Automatic Transmission Speed Sensor Bolt M6 x 20 [4x] | - | - | 7 N.m (62 lb in) | Control Valve Assembly and Transmission Wiring Harness Installation |
| 2 | Automatic Transmission Control Wiring Harness Retainer | Yes | - | - | Control Valve Assembly and Transmission Wiring Harness Installation |
| 3 | Automatic Transmission Control Wiring Harness Clip Bracket Bolt M6 x 19 [3x] | - | - | 12 N.m (9 lb ft) | Control Valve Assembly and Transmission Wiring Harness Installation |
| 4 | Wiring Harness Connector Seal [2x] | Yes | - | - | Control Valve Assembly and Transmission Wiring Harness Installation |
NOTE:
Callouts in the following chart represent components shown in graphic above.

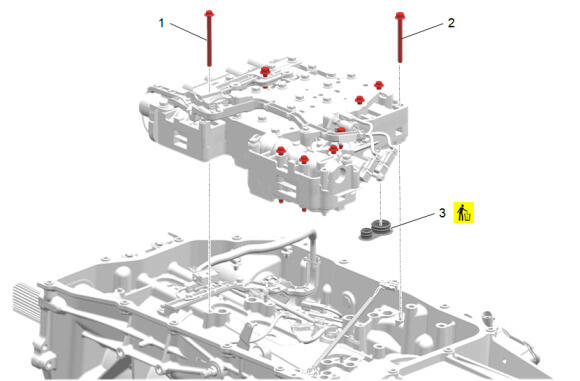

Control Valve Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Control Valve Body Bolt M6 x 75 [6x] | - | - | Control Valve Solenoid Body Bolt Tightenine Sequence | Control Valve Assembly and Transmission Wiring Harness Installation |
| 2 | Control Valve Body Bolt M6 x 65 [3x] | - | - | Control Valve Solenoid Body Bolt Tightenine Sequence | Control Valve Assembly and Transmission Wiring Harness Installation |
| 3 | Automatic Transmission Fluid Pump Seal | Yes | - | - | Control Valve Assembly Assemble |
NOTE:
Callouts in the following chart represent components shown in graphic above.

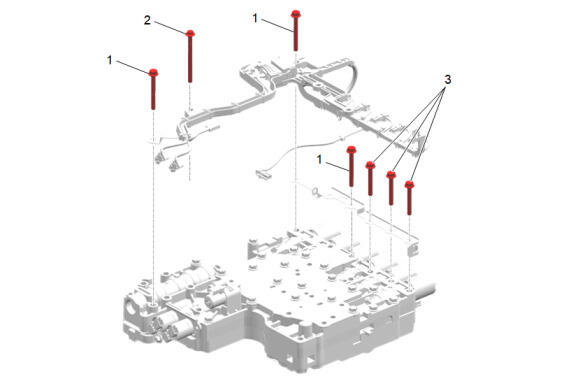

Control Valve Body Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Control Valve Upper Body Bolt M6 x 55 [3x] | - | - | 10.5 N.m (93 lb in) | Control Valve Assembly Assemble |
| 2 | Valve Body Bolt M6 x 75 | - | - | 10.5 N.m (93 lb in) | Control Valve Assembly Assemble |
| 3 | Control Valve Upper Body Bolt M6 x 45 [3x] | - | - | 10.5 N.m (93 lb in) | Control Valve Assembly Assemble |
NOTE:
Callouts in the following chart represent components shown in graphic above.

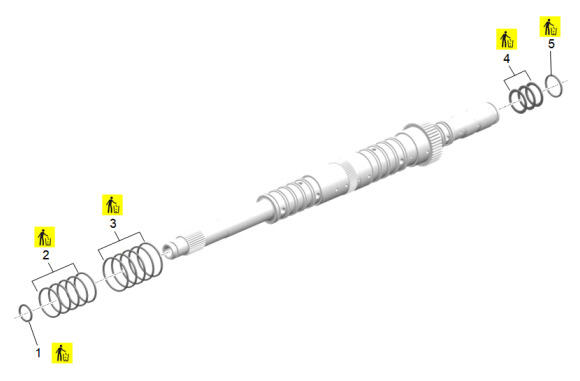

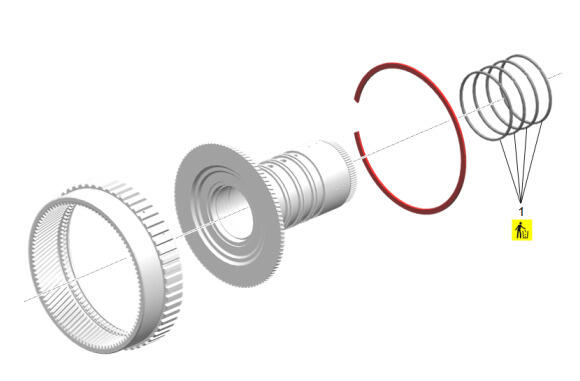

Input Internal Gear Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Direct Overdrive Sun Gear Shaft Seal [4x] | Yes | - | - | Input Internal Gear Assemble |
NOTE:
Callouts in the following chart represent components shown in graphic above.

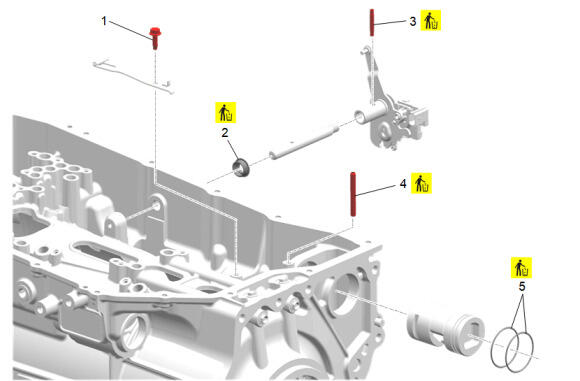

Park System Components
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Manual Shift Detent Spring Bolt M6 x 20.65 | - | - | 9 N.m (80 lb in) | Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation |
| 2 | Manual Shift Shaft Seal | Yes | - | - | Manual Shift Shaft Seal Installation |
| 3 | Manual Shift Shaft Pin | Yes | - | - | Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation |
| 4 | Park Pawl Actuator Guide Pin | Yes | - | - | Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation |
| 5 | Park Pawl Actuator Guide Seal [2x] | Yes | - | - | Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Installation |
NOTE:
Callouts in the following chart represent components shown in graphic above.

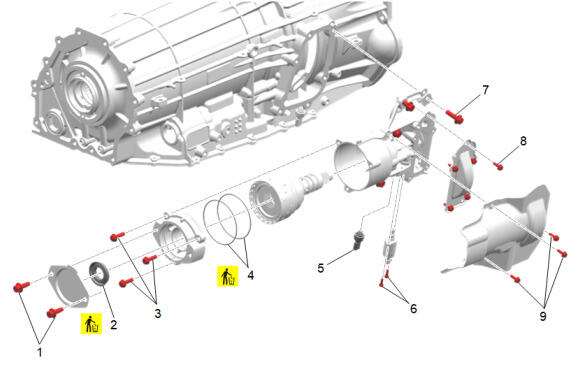

Power Take Off Assembly 1 of 2
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Power Take-Off Cover Bolt M10 x 30.4 [2x] | - | - | 8 N.m (71 lb in) | Power Take-Off Housing Cover Installation |
| 2 | Output Shaft Seal | Yes | - | - | Output Shaft Seal Installation |
| 3 | Power Take-Off Housing Cover Bolt M8 x 30 [3x] | - | - | 8 N.m (71 lb in) | Power Take-Off Housing Cover Installation |
| 4 | Power Take-Off Housing Cover Seal [2x] | Yes | - | - | Power Take-Off Housing Cover Installation |
| 5 | Automatic Transmission Fluid Pressure Sensor | - | - | 11 N.m (97 lb in) | Power Take-Off Housing Installation |
| 6 | Shift Solenoid Valve Bolt M5 x 16.5 [2x] | - | - | 6 N.m (53 lb in) | Power Take-Off Housing Installation |
| 7 | Power Take-Off Housing Bolt M10 x 35 [6x] | - | - | Power Take-Off Housing Bolt Tightening Sequence | Power Take-Off Housing Installation |
| 8 | Power Take-Off Drive Link Cover Bolt M6 x 20.65 [5x] | - | - | Power Take-Off Drive Link Cover Bolt Tightening Sequence | Power Take-Off Drive Link Cover Installation |
| 9 | Transmission Heat Shield Bolt M6 x 20.65 [3x] | - | - | 9 N.m (80 lb in) | Power Take-Off Drive Link Cover Installation |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Power Take Off Assembly 2 of 2
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Power Take-Off Clutch Piston Seal [2x] | Yes | - | - | Power Take-Off Clutch Assemble |
| 2 | Power Take-Off Clutch Piston Inner Seal [2x] | Yes | - | - | Power Take-Off Clutch Assemble |
| 3 | Power Take-Off Clutch Fluid Seal [4x] | Yes | - | - | Power Take-Off Clutch Assemble |
NOTE:
Callouts in the following chart represent components shown in graphic above.

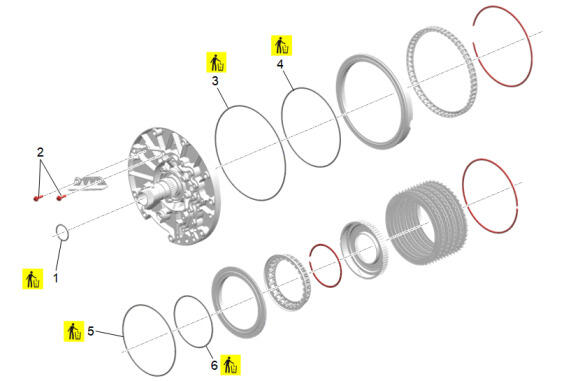

Stator Shaft Support Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Bolt M5 x 15.5 | - | - | 6 N.m (53 lb in) | Stator Shaft Support Assemble |
| 2 | Stator Shaft Front Seal | Yes | - | - | Stator Shaft Support Assemble |
| 3 | Transmission Bolt M6 x 25.65 [2x]-Model Dependent | - | - | 9 N.m (80 lb in) | Stator Shaft Support Installation (with M1F) , or Stator Shaft Support Installation (without M1F) |
| 4 | 1-2-3-4-5-6-Reverse Clutch Piston Seal- Outer | Yes | - | - | Stator Shaft Support Assemble |
| 5 | 1-2-3-4-5-6-Reverse Clutch Piston Seal- Inner | Yes | - | - | Stator Shaft Support Assemble |
| 6 | 1-2-8-9-10-Reverse Clutch Piston Outer Seal | Yes | - | - | Stator Shaft Support Assemble |
| 7 | 1-2-8-9-10-Reverse Clutch Piston Inner Seal | Yes | - | - | Stator Shaft Support Assemble |
NOTE:
Callouts in the following chart represent components shown in graphic above.

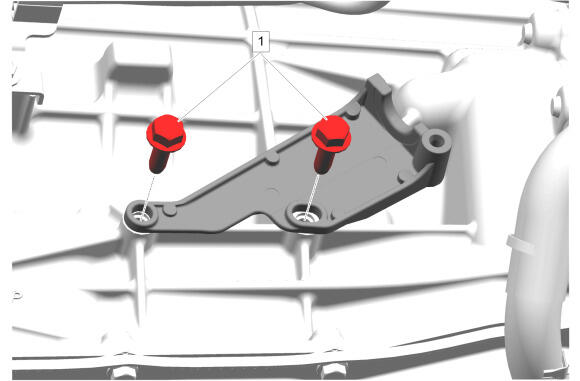

Transmission Control Module Bracket Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Control Module Bracket Nut [2x] | - | - | 9 N.m (80 lb in) | Transmission Control Module Bracket Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

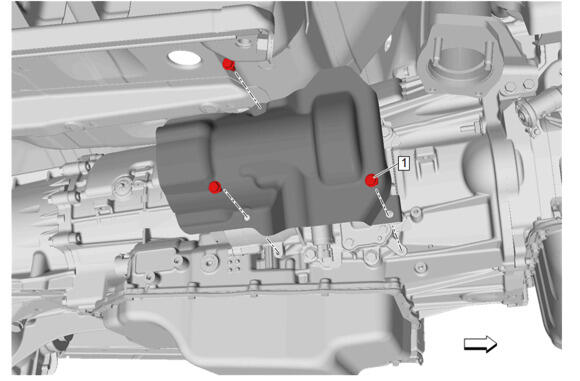

Transmission Heat Shield
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Heat Shield Bolt [3x] | - | - | 9 N.m (80 lb in) | Transmission Heat Shield Replacement |
NOTE:
Callouts in the following chart represent components shown in graphic above.

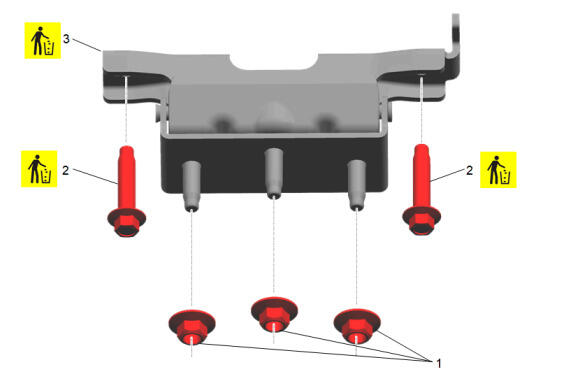

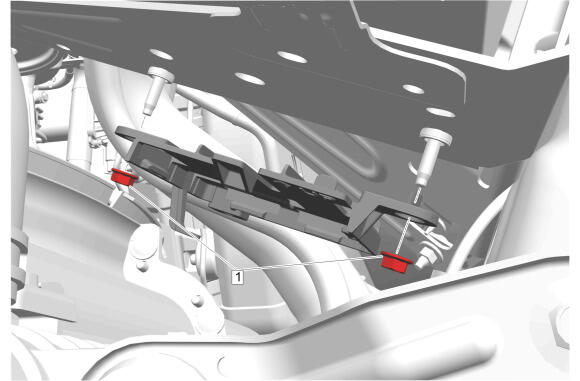

Transmission Mount
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Mount Nut [3x] | - | - | First Pass: 45 N.m (33 lb ft) Final Pass: 45 degrees |
Transmission Mount Replacement (4WD) , or Transmission Mount Replacement (2WD) |
| 2 | Transmission Mount Bolt [2x] | Yes | - | First Pass: 100 N.m (74 lb ft) Final Pass: 60 degrees |
Transmission Mount Replacement (4WD) , or Transmission Mount Replacement (2WD) |
| 3 | Transmission Mount | Yes | - | - | Transmission Mount Replacement (4WD) , or Transmission Mount Replacement (2WD) |
NOTE:
Callouts in the following chart represent components shown in graphic above.

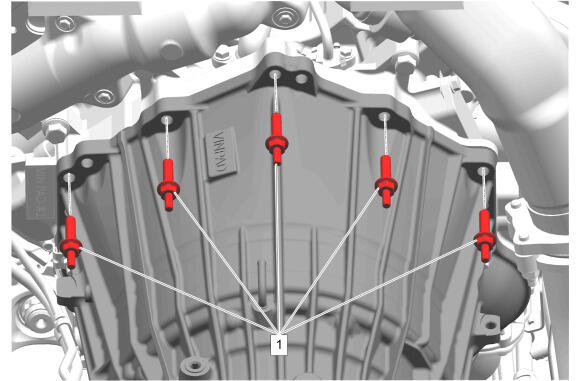

Transmission Studs - Upper
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Stud [5x] | - | - | 58 N.m (43 lb ft) | Transmission Replacement (4WD, L5P, NQH) , or Transmission Replacement (4WD, L5P, NQF) , or Transmission Replacement (2WD, L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Studs and Bolts - Left Side
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Stud | - | - | 58 N.m (43 lb ft) | Transmission Replacement (4WD, L5P, NQH) , or Transmission Replacement (4WD, L5P, NQF) , or Transmission Replacement (2WD, L5P) |
| 2 | Transmission Bolt | - | - | 58 N.m (43 lb ft) | Transmission Replacement (4WD, L5P, NQH) , or Transmission Replacement (4WD, L5P, NQF) , or Transmission Replacement (2WD, L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Studs and Bolts - Right Side
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Stud | - | - | 58 N.m (43 lb ft) | Transmission Replacement (4WD, L5P, NQH) , or Transmission Replacement (4WD, L5P, NQF) , or Transmission Replacement (2WD, L5P) |
| 2 | Transmission Bolt | - | - | 58 N.m (43 lb ft) | Transmission Replacement (4WD, L5P, NQH) , or Transmission Replacement (4WD, L5P, NQF) , or Transmission Replacement (2WD, L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Torque Converter Bolt
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Torque Converter Bolt [6x] | - | Yes | 63 N.m (46 lb ft) | Transmission Replacement (4WD, L5P, NQH) , or Transmission Replacement (4WD, L5P, NQF) , or Transmission Replacement (2WD, L5P) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Transmission Vent Hose Clip Bracket Nut
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transfer Case Vent Hose Clip Nut | - | - | 22 N.m (16 lb ft) | Transmission Vent Hose Clip Bracket Replacement (4WD) , or Transmission Vent Hose Clip Bracket Replacement (2WD) |
| 2 | Transmission Vent Hose Clip Bracket Nut [2x] | - | - | 9 N.m (80 lb in) | Transmission Vent Hose Clip Bracket Replacement (4WD) , or Transmission Vent Hose Clip Bracket Replacement (2WD) |
NOTE:
Callouts in the following chart represent components shown in graphic above.
Turbine Shaft Assembly
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Turbine Shaft Seal | Yes | - | - | Turbine Shaft Seal Installation |
| 2 | Turbine Shaft Seal [5x] | Yes | - | - | Rotating Clutch, Gear, and Shaft Shell Assembly Assemble |
| 3 | Turbine Shaft Seal [5x] | Yes | - | - | Turbine Shaft Seal Installation |
| 4 | Turbine Shaft Seal [3x] | Yes | - | - | Turbine Shaft Seal Installation |
| 5 | Turbine Shaft Seal | Yes | - | - | Rotating Clutch, Gear, and Shaft Shell Assembly Assemble |
