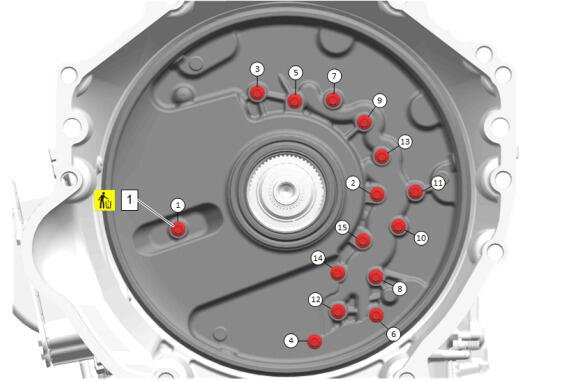

Automatic Transmission Case Front Cover Bolt Tightening Sequence
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Automatic Transmission Case Front Cover Bolt Tightening Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
| Metric (English) | |||||
| 1 | Automatic Transmission Case Front Cover Bolt M6 x 30 [15x] | - | - | First Pass: Hand Tighten Second Pass: 5 N.m (44 lb in) Final Pass: 14.5 N.m (11 lb ft) |
Automatic Transmission Case Front Cover Installation |
