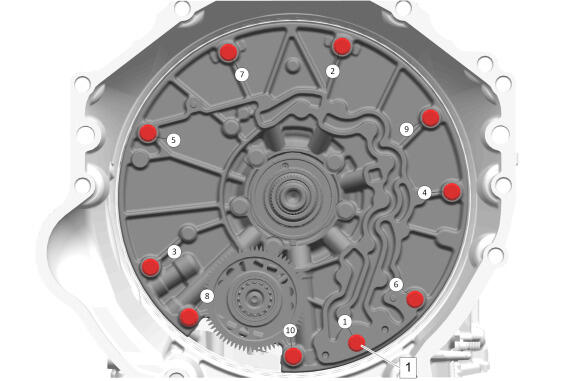

Stator Shaft Support Assembly Bolt Tightenine Sequence
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Stator Shaft Support Assembly Bolt Tightenine Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
| Metric (English) | |||||
| 1 | Automatic Transmission Case Cover Bolt M8 x 45 [10x] | - | - | First Pass: Hand Tighten Second Pass: 15 N.m (11 lb ft) Final Pass: 35 N.m (26 lb ft) |
Stator Shaft Support Installation (with M1F) , or Stator Shaft Support Installation (without M1F) |
