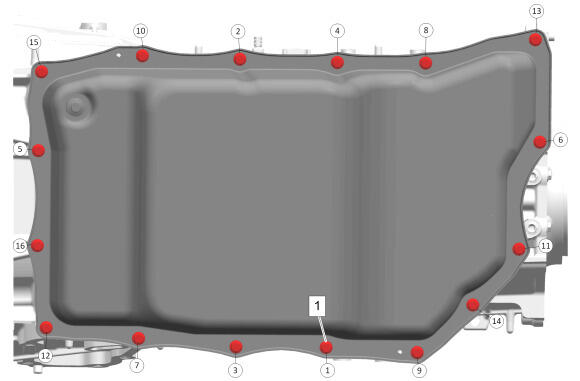

Automatic Transmission Fluid Pan Bolt Tightenine Sequence
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
| Automatic Transmission Fluid Pan Bolt Tightenine Sequence | |||||
|---|---|---|---|---|---|
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
| Metric (English) | |||||
| 1 | Automatic Transmission Fluid Pan Bolt M6 x 20.65 [16x] | - | - | 9 N.m (80 lb in) | Transmission Fluid Pan and Filter Assembly Installation |
