Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

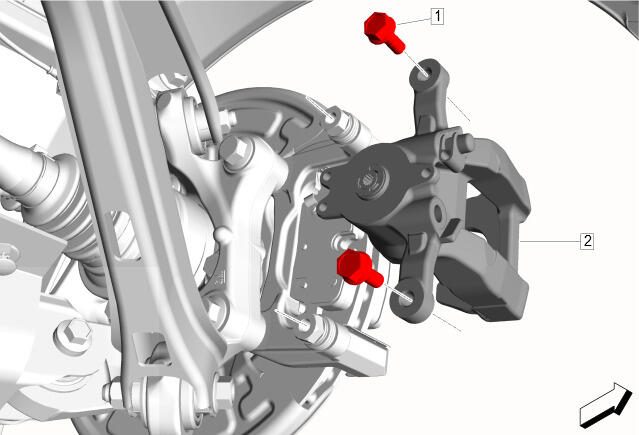

Rear Brake Caliper (2) - Install
- Rear Brake Caliper Guide Pin Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Remove the plug from the brake hose outlet.
- Remove the plug the rear brake caliper inlet.
Rear Brake Hose Fitting Gasket (2) - Install NEW [2x]
- Rear Brake Hose (3) @ Rear Brake Caliper - Install
- Rear Brake Hose Fitting (1) - Install and tighten - Fastener Specifications

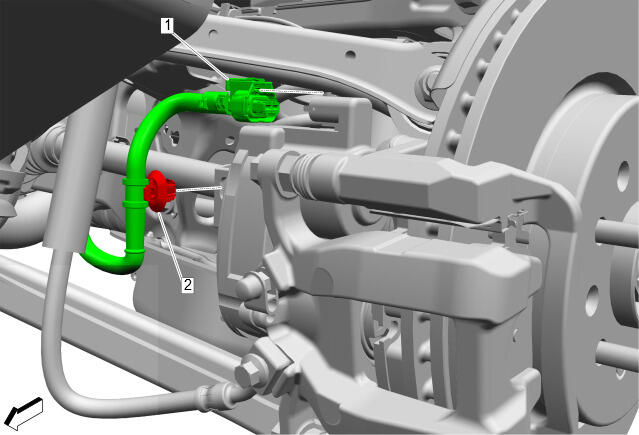

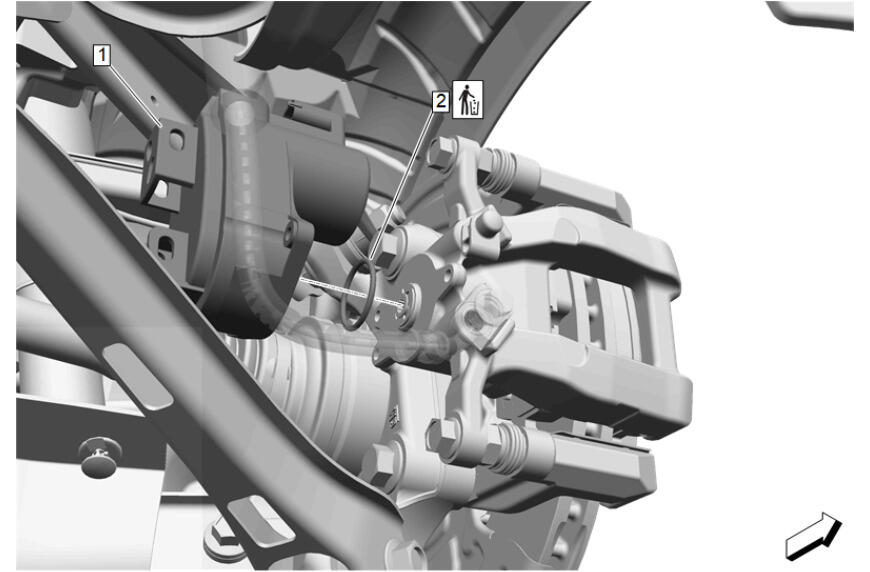

Rear Parking Brake Actuator Lever Seal (2) - Install NEW
- Rear Parking Brake Actuator (1) - Install
Retainer (2) @ Rear Parking Brake Actuator - Secure
- Electrical Connector (1) @ Rear Parking Brake Actuator - Connect
Rear Parking Brake Actuator Bolt (1) - Install and tighten [2x] - Fastener Specifications
{If equipped} Rear Disc Brake Pad Wear Sensor (1) - Install
- {If equipped} Rear Brake Caliper Bleeder Valve Cap (2) - Install
- {If equipped} Retainer (3) - Install
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Bleed the brake system. Hydraulic Brake System Bleeding (JE5, J6G) , or Hydraulic Brake System Bleeding (J55)
- Check for brake system leaks.
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
- Calibrate the park brake. Park Brake Calibration
