Fastener Specifications
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

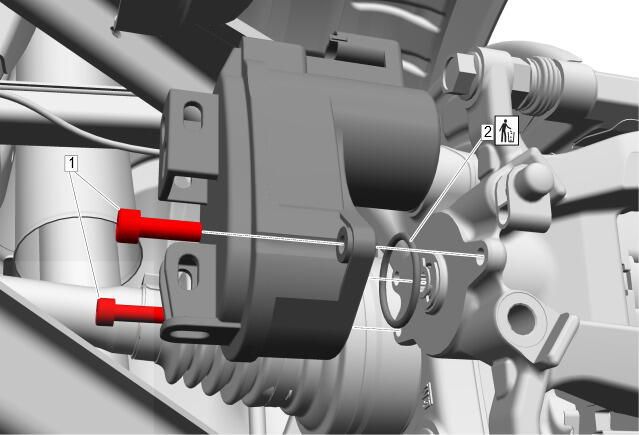

Parking Brake Actuator Replacement JE5, J55
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Parking Brake Actuator Bolt [2x] | - | - | 9 N.m (80 lb in) | Parking Brake Actuator Replacement |
| 2 | Rear Parking Brake Actuator Lever Seal | Yes | - | - | Parking Brake Actuator Replacement |

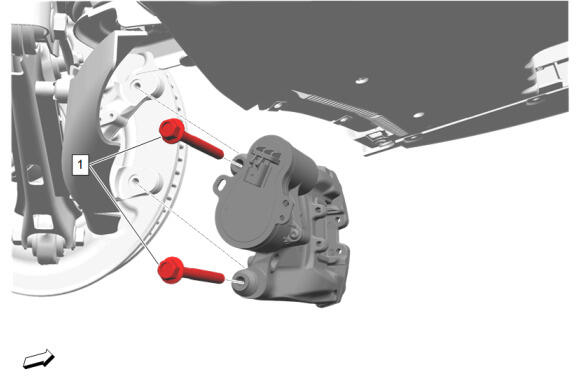

Parking Brake Caliper J6G
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Parking Brake Bolt [2x] | - | - | 58 N.m (43 lb ft) | Parking Brake Caliper Replacement (J6G) |
