Fastener Specifications

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

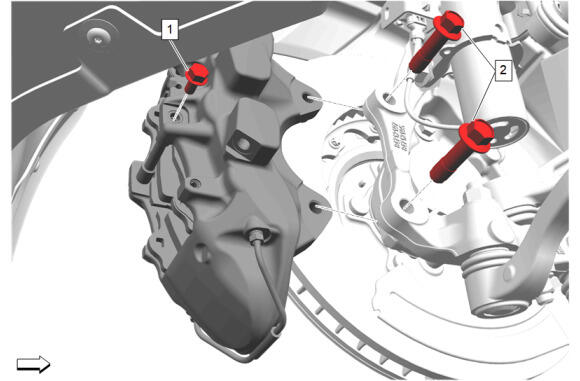

GM5877044Courtesy of GENERAL MOTORS COMPANY
Front Brake Caliper J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Caliper Guide Pin Bolt - - 30 N.m (22 lb ft) Front Brake Caliper Hardware Replacement (J6G)
2 Front Brake Caliper Bracket Bolt [2x] - Yes First Pass: 150 N.m (111 lb ft)
Final Pass: 15 - 30 degrees		 Front Brake Caliper Replacement (JE5) , or Front Brake Caliper Replacement (J55) , or Front Brake Caliper Replacement (J6G)

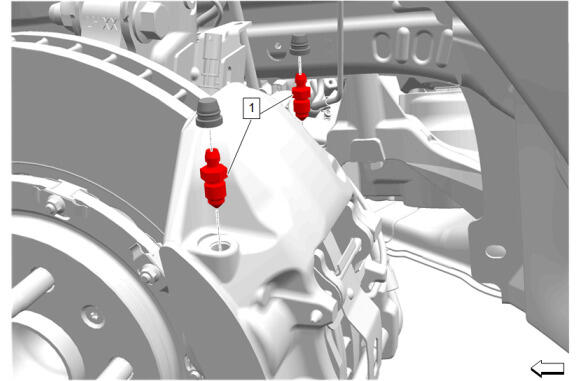

GM5877043Courtesy of GENERAL MOTORS COMPANY
Front Brake Caliper Bleeders J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Caliper Bleeder Valve [2x] - - 18.5 N.m (14 lb ft) Front Brake Caliper Bleeder Valve Replacement (JE5) , or Front Brake Caliper Bleeder Valve Replacement (J55) , or Front Brake Caliper Bleeder Valve Replacement (J6G)

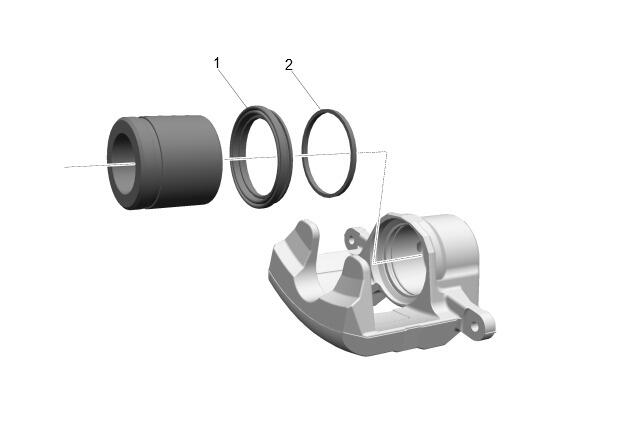

GM5479585Courtesy of GENERAL MOTORS COMPANY
Front Brake Caliper Overhaul JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Caliper Piston Boot Yes - - Front Brake Caliper Overhaul (JE5) , or Front Brake Caliper Overhaul (J55) , or Front Brake Caliper Overhaul (J6G)
2 Front Brake Caliper Piston Seal Yes - - Front Brake Caliper Overhaul (JE5) , or Front Brake Caliper Overhaul (J55) , or Front Brake Caliper Overhaul (J6G)

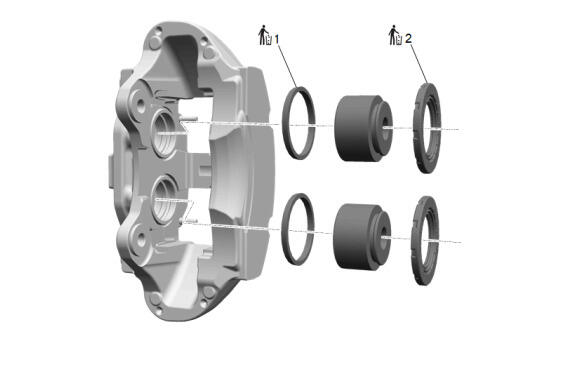

GM5509226Courtesy of GENERAL MOTORS COMPANY
Front Brake Caliper Overhaul Inboard J55

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Caliper Piston Seal [2x] Yes - - Front Brake Caliper Overhaul (JE5) , or Front Brake Caliper Overhaul (J55) , or Front Brake Caliper Overhaul (J6G)
2 Front Brake Caliper Piston Boot [2x] Yes - - Front Brake Caliper Overhaul (JE5) , or Front Brake Caliper Overhaul (J55) , or Front Brake Caliper Overhaul (J6G)
GM5877046Courtesy of GENERAL MOTORS COMPANY

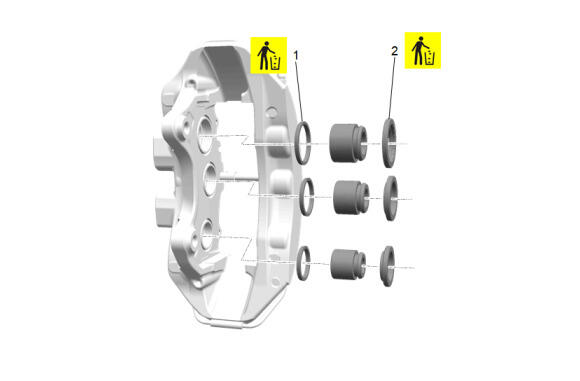

Front Brake Caliper Overhaul Inboard J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Caliper Piston Seal [3x] Yes - - Front Brake Caliper Overhaul (JE5) , or Front Brake Caliper Overhaul (J55) , or Front Brake Caliper Overhaul (J6G)
2 Front Brake Caliper Piston Boot [3x] Yes - - Front Brake Caliper Overhaul (JE5) , or Front Brake Caliper Overhaul (J55) , or Front Brake Caliper Overhaul (J6G)

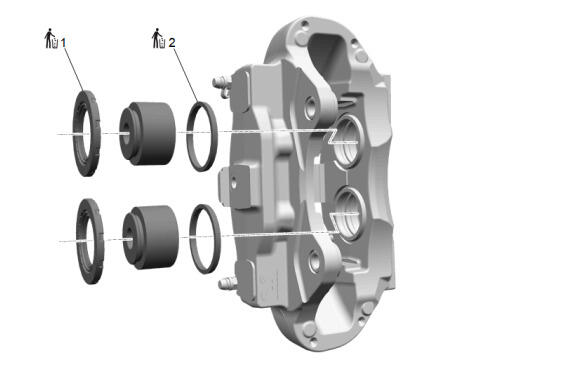

GM5509227Courtesy of GENERAL MOTORS COMPANY
Front Brake Caliper Overhaul Outboard J55

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Caliper Piston Boot [2x] Yes - - Front Brake Caliper Overhaul (JE5) , or Front Brake Caliper Overhaul (J55) , or Front Brake Caliper Overhaul (J6G)
2 Front Brake Caliper Piston Seal [2x] Yes - - Front Brake Caliper Overhaul (JE5) , or Front Brake Caliper Overhaul (J55) , or Front Brake Caliper Overhaul (J6G)
GM5877048Courtesy of GENERAL MOTORS COMPANY

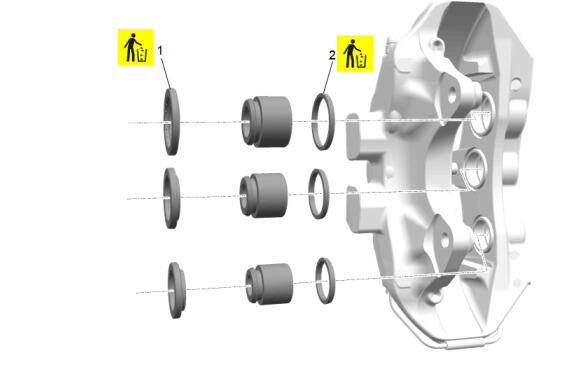

Front Brake Caliper Overhaul Outboard J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Caliper Piston Boot [3x] Yes - - Front Brake Caliper Overhaul (JE5) , or Front Brake Caliper Overhaul (J55) , or Front Brake Caliper Overhaul (J6G)
2 Front Brake Caliper Piston Seal [3x] Yes - - Front Brake Caliper Overhaul (JE5) , or Front Brake Caliper Overhaul (J55) , or Front Brake Caliper Overhaul (J6G)

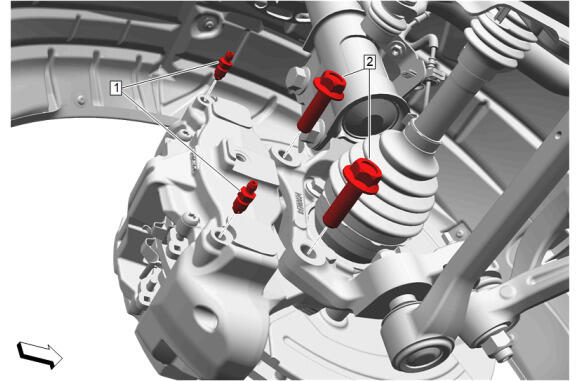

GM5509228Courtesy of GENERAL MOTORS COMPANY
Front Brake Corner J55

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Caliper Bleeder Valve [2x] - - 17 N.m (13 lb ft) Front Brake Caliper Bleeder Valve Replacement (JE5) , or Front Brake Caliper Bleeder Valve Replacement (J55) , or Front Brake Caliper Bleeder Valve Replacement (J6G)
2 Front Brake Caliper Bolt [2x] - Yes First Pass: 150 N.m (111 lb ft)
Final Pass: 15 - 30 degrees		 Front Brake Caliper Replacement (JE5) , or Front Brake Caliper Replacement (J55) , or Front Brake Caliper Replacement (J6G)
GM5479584Courtesy of GENERAL MOTORS COMPANY

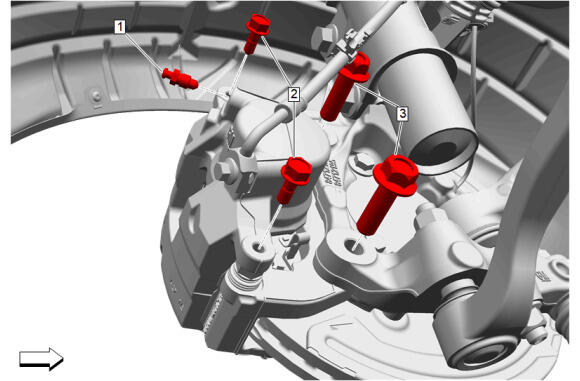

Front Brake Corner JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Caliper Bleeder Valve - - 17 N.m (13 lb ft) Front Brake Caliper Bleeder Valve Replacement (JE5) , or Front Brake Caliper Bleeder Valve Replacement (J55) , or Front Brake Caliper Bleeder Valve Replacement (J6G)
2 Front Brake Caliper Guide Pin Bolt [2x] - - 40 N.m (30 lb ft) Front Brake Caliper Replacement (JE5) , or Front Brake Caliper Replacement (J55) , or Front Brake Caliper Replacement (J6G)
3 Front Brake Caliper Bolt [2x] - Yes First Pass: 150 N.m (111 lb ft)
Final Pass: 15 - 30 degrees		 Front Brake Caliper Bracket Replacement (JE5)

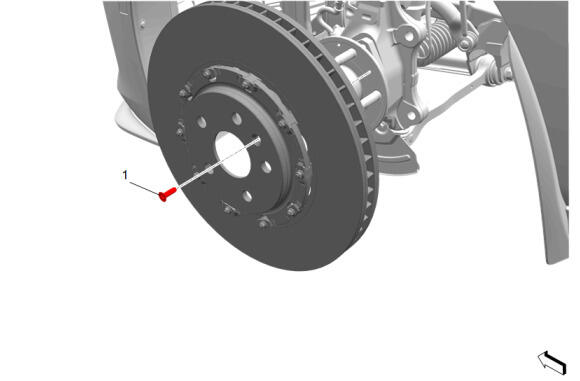

GM5877050Courtesy of GENERAL MOTORS COMPANY
Front Brake Rotor Bolt J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Rotor Bolt - - 9 N.m (80 lb in) Front Brake Rotor Replacement (JE5) , or Front Brake Rotor Replacement (J55) , or Front Brake Rotor Replacement (J6G)

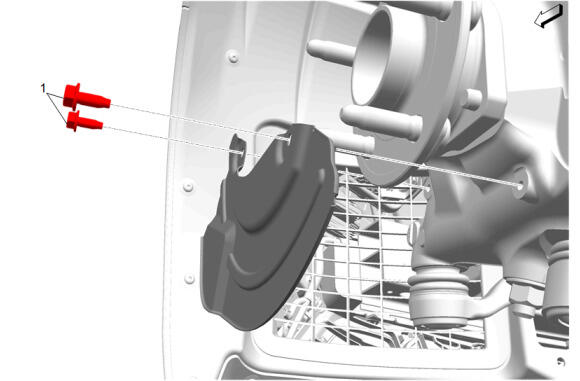

GM5877051Courtesy of GENERAL MOTORS COMPANY
Front Brake Shield J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Shield Bolt [2x] - - 9 N.m (80 lb in) Front Brake Shield Replacement (JE5, J55) , or Front Brake Shield Replacement (J6G)
GM5500959Courtesy of GENERAL MOTORS COMPANY

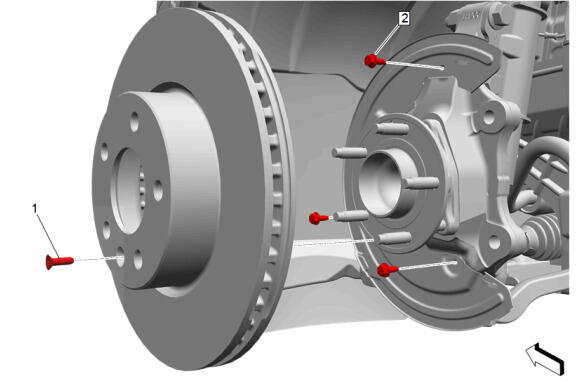

Front Brake Shield and Rotor Bolt J55, JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Rotor Bolt - - 9 N.m (80 lb in) Front Brake Rotor Replacement (JE5) , or Front Brake Rotor Replacement (J55) , or Front Brake Rotor Replacement (J6G)
2 Front Brake Shield Bolt [3x] - - 9 N.m (80 lb in) Front Brake Shield Replacement (JE5, J55) , or Front Brake Shield Replacement (J6G)
GM5877052Courtesy of GENERAL MOTORS COMPANY

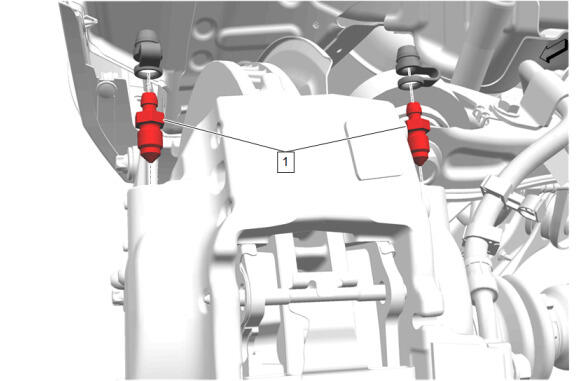

Rear Brake Bleeders J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Bleeder Valve [2x] - Yes 18.5 N.m (14 lb ft) Rear Brake Bleeder Valve Replacement (JE5, J55) , or Rear Brake Bleeder Valve Replacement (J6G)

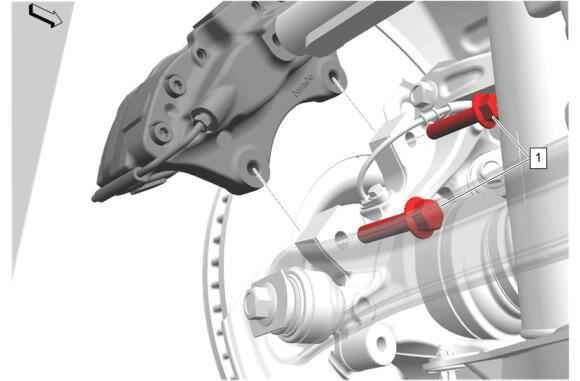

GM5877054Courtesy of GENERAL MOTORS COMPANY
Rear Brake Caliper J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Caliper Bracket Bolt [2x] - Yes First Pass: 100 N.m (74 lb ft)
Final Pass: 15 - 30 degrees		 Rear Brake Caliper Bracket Replacement

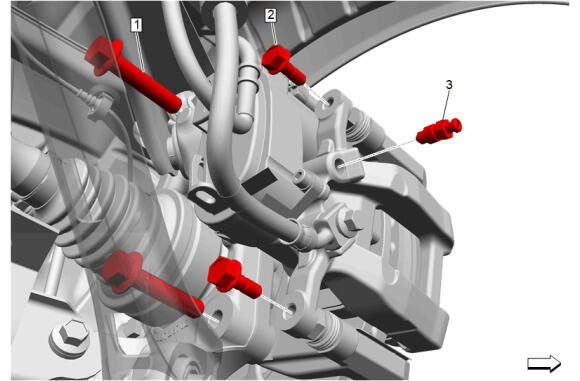

GM5479588Courtesy of GENERAL MOTORS COMPANY
Rear Brake Caliper and Bracket J55, JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Caliper Bracket Bolt [2x] - Yes First Pass: 100 N.m (74 lb ft)
Final Pass: 15 - 30 degrees		 Rear Brake Caliper Bracket Replacement
2 Rear Brake Caliper Guide Pin Bolt [2x] - - 40 N.m (30 lb ft) Rear Brake Caliper Replacement (JE5, J55) , or Rear Brake Caliper Replacement (J6G)
3 Rear Brake Bleeder Valve - - 17 N.m (13 lb ft) Rear Brake Bleeder Valve Replacement (JE5, J55) , or Rear Brake Bleeder Valve Replacement (J6G)

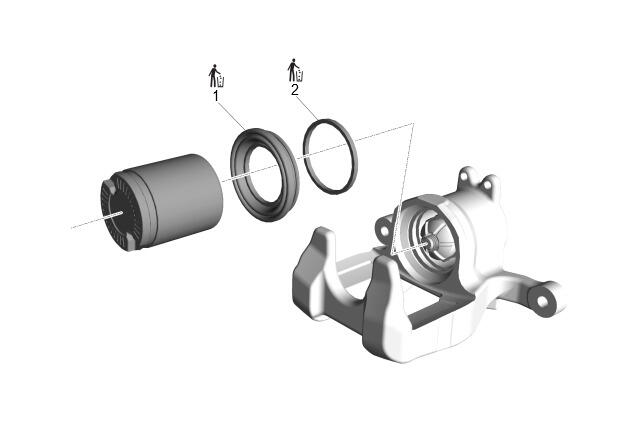

GM5479589Courtesy of GENERAL MOTORS COMPANY
Rear Brake Caliper Overhaul J55, JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Caliper Piston Boot Yes - - Rear Brake Caliper Overhaul (JE5, J55) , or Rear Brake Caliper Overhaul (J6G)
2 Rear Brake Caliper Piston Seal Yes - - Rear Brake Caliper Overhaul (JE5, J55) , or Rear Brake Caliper Overhaul (J6G)

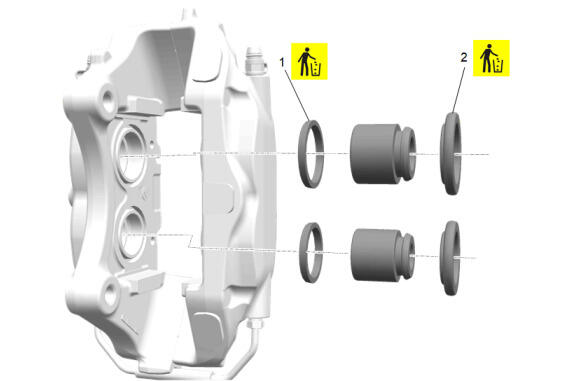

GM5877056Courtesy of GENERAL MOTORS COMPANY
Rear Brake Caliper Overhaul Inboard J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Caliper Piston Seal [2x] Yes - - Rear Brake Caliper Overhaul (JE5, J55) , or Rear Brake Caliper Overhaul (J6G)
2 Rear Brake Caliper Piston Boot [2x] Yes - - Rear Brake Caliper Overhaul (JE5, J55) , or Rear Brake Caliper Overhaul (J6G)

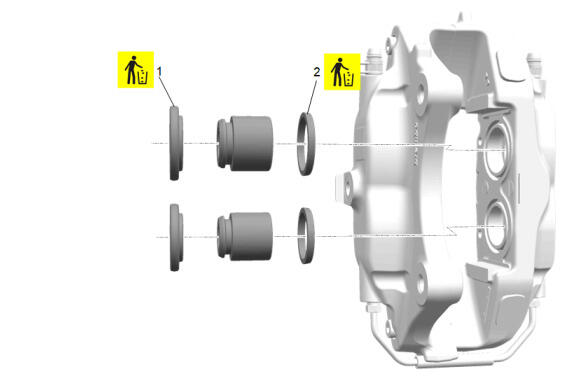

GM5877059Courtesy of GENERAL MOTORS COMPANY
Rear Brake Caliper Overhaul Outboard J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Caliper Piston Boot [2x] Yes - - Rear Brake Caliper Overhaul (JE5, J55) , or Rear Brake Caliper Overhaul (J6G)
2 Rear Brake Caliper Piston Seal [2x] Yes - - Rear Brake Caliper Overhaul (JE5, J55) , or Rear Brake Caliper Overhaul (J6G)

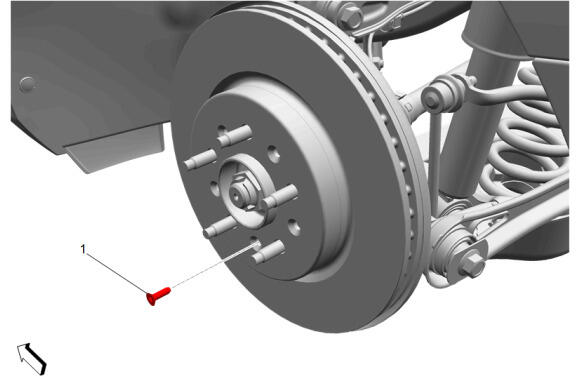

GM5500960Courtesy of GENERAL MOTORS COMPANY
Rear Brake Rotor Bolt J55. JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Rotor Bolt - - 9 N.m (80 lb in) Rear Brake Rotor Replacement (JE5, J55) , or Rear Brake Rotor Replacement (J6G)

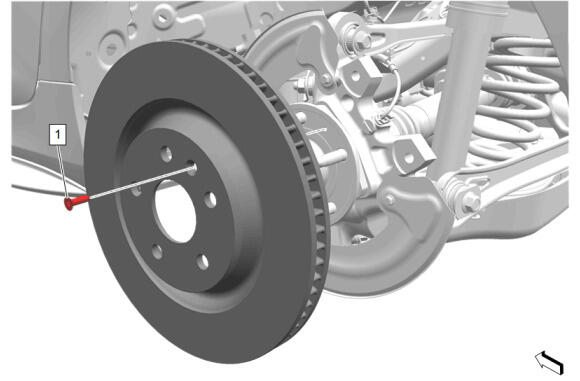

GM5877060Courtesy of GENERAL MOTORS COMPANY
Rear Brake Rotor Bolt J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Rotor Bolt - - 9 N.m (80 lb in) Rear Brake Rotor Replacement (JE5, J55) , or Rear Brake Rotor Replacement (J6G)

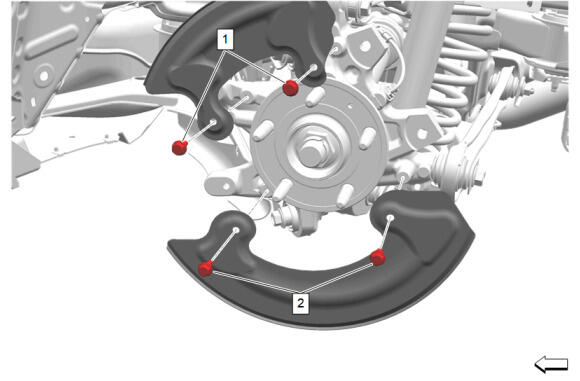

GM5877061Courtesy of GENERAL MOTORS COMPANY
Rear Brake Rotor Shield J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Shield Bolt [2x] - - 9 N.m (80 lb in) Rear Brake Shield Replacement (JE5, J55) , or Rear Brake Shield Replacement (J6G)
2 Rear Brake Shield Bolt [2x] - - 9 N.m (80 lb in) Rear Brake Lower Shield Replacement (J6G)
