Fastener Specifications

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

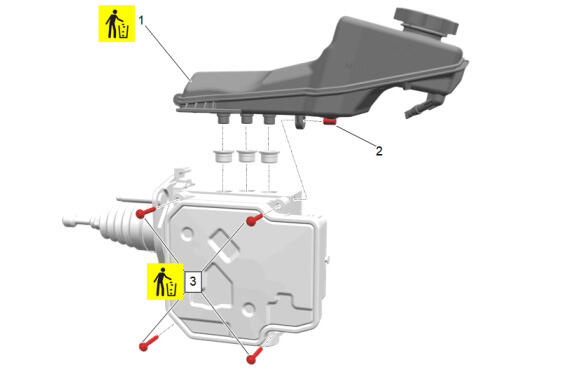

GM5992471Courtesy of GENERAL MOTORS COMPANY
Brake Master Cylinder Components

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Brake Master Cylinder Reservoir Yes - - Brake Master Cylinder Reservoir Replacement (without Blackwing) , or Brake Master Cylinder Reservoir Replacement (Blackwing MHU) , or Brake Master Cylinder Reservoir Replacement (Blackwing MG9)
2 Brake Master Cylinder Reservoir Bolt - - 5.5 N.m (49 lb in) Brake Master Cylinder Reservoir Replacement (without Blackwing) , or Brake Master Cylinder Reservoir Replacement (Blackwing MHU) , or Brake Master Cylinder Reservoir Replacement (Blackwing MG9)
3 Electronic Brake Control Module Bolt [4x] Yes - 3 N.m (27 lb in) Brake System Control Module Replacement (without Blackwing) , or Brake System Control Module Replacement (with Blackwing)

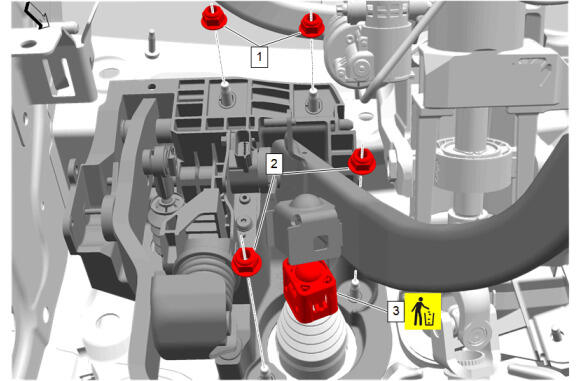

GM5898835Courtesy of GENERAL MOTORS COMPANY
Brake Pedal Assembly Replacement with MG9

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Brake Pedal Nut [2x] - - 25 N.m (18 lb ft) Brake Pedal Assembly Replacement (without MG9) , or Brake Pedal Assembly Replacement (with MG9)
2 Brake Master Cylinder Nut [2x] - - 25 N.m (18 lb ft) Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module (without Blackwing) , or Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module (Blackwing MHU) , or Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module (Blackwing MG9)
3 Brake Pedal Retainer Yes - - Brake Pedal Assembly Replacement (without MG9) , or Brake Pedal Assembly Replacement (with MG9)
GM5500630Courtesy of GENERAL MOTORS COMPANY
Brake Pedal Assembly Replacement without MG9

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Brake Pedal Nut [2x] - - 25 N.m (18 lb ft) Brake Pedal Assembly Replacement (without MG9) , or Brake Pedal Assembly Replacement (with MG9)
2 Brake Master Cylinder Nut [2x] - - 25 N.m (18 lb ft) Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module (without Blackwing) , or Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module (Blackwing MHU) , or Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module (Blackwing MG9)
3 Brake Pedal Retainer Yes - - Brake Pedal Assembly Replacement (without MG9) , or Brake Pedal Assembly Replacement (with MG9)
GM5483728Courtesy of GENERAL MOTORS COMPANY
Front Brake Hose Fitting Bolt

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Hose Fitting Bolt - - 9 N.m (80 lb in) Front Brake Hose Replacement (JE5) , or Front Brake Hose Replacement (J55) , or Front Brake Hose Replacement (J6G)
GM5509273Courtesy of GENERAL MOTORS COMPANY
Front Brake Hose Fitting and Washers J55

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Hose Washer [2x] Yes - - Front Brake Hose Replacement (JE5) , or Front Brake Hose Replacement (J55) , or Front Brake Hose Replacement (J6G)
2 Front Brake Hose Fitting - - 40 N.m (30 lb ft) Front Brake Hose Replacement (JE5) , or Front Brake Hose Replacement (J55) , or Front Brake Hose Replacement (J6G)

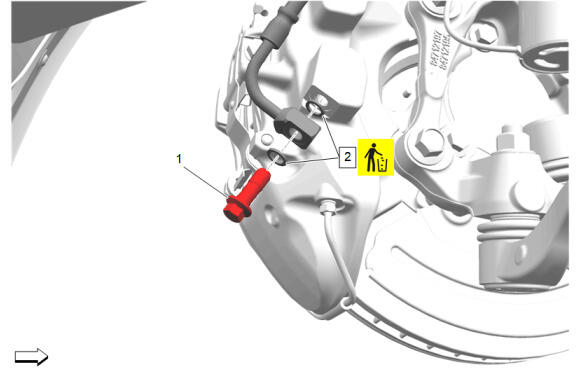

GM5898834Courtesy of GENERAL MOTORS COMPANY
Front Brake Hose Fitting and Washers J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Hose Fitting - - 40 N.m (30 lb ft) Front Brake Hose Replacement (JE5) , or Front Brake Hose Replacement (J55) , or Front Brake Hose Replacement (J6G)
2 Front Brake Hose Washer [2x] Yes - - Front Brake Hose Replacement (JE5) , or Front Brake Hose Replacement (J55) , or Front Brake Hose Replacement (J6G)
GM5500631Courtesy of GENERAL MOTORS COMPANY
Front Brake Hose Fitting and Washers JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Hose Fitting - - 40 N.m (30 lb ft) Front Brake Hose Replacement (JE5) , or Front Brake Hose Replacement (J55) , or Front Brake Hose Replacement (J6G)
2 Front Brake Hose Washer [2x] Yes - - Front Brake Hose Replacement (JE5) , or Front Brake Hose Replacement (J55) , or Front Brake Hose Replacement (J6G)
GM5501877Courtesy of GENERAL MOTORS COMPANY
Front Brake Pipe Replacement J55, JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Pipe Nut [2x] - - 18 N.m (13 lb ft) Front Brake Pipe Replacement - Right Side (without Blackwing) , or Front Brake Pipe Replacement - Right Side (with Blackwing)
2 Front Brake Pipe Nut [2x] - - 18 N.m (13 lb ft) Front Brake Front Pipe Replacement - Right Side (Rear Brake Front Pipe) , or Front Brake Front Pipe Replacement - Right Side (Blackwing with MG9) , or Front Brake Front Pipe Replacement - Right Side (Blackwing with MHU)
3 Front Brake Pipe Nut [2x] - - 18 N.m (13 lb ft) Front Brake Front Pipe Replacement - Left Side (Front Brake Pipe without Blackwing) , or Front Brake Front Pipe Replacement - Left Side (Front Brake Pipe MHU with Blackwing) , or Front Brake Front Pipe Replacement - Left Side (Front Brake Pipe MG9 with Blackwing)
4 Front Brake Pipe Nut [2x] - - 18 N.m (13 lb ft) Front Brake Pipe Replacement - Left Side (Front Brake Pipe without Blackwing) , or Front Brake Pipe Replacement - Left Side (Front Brake Pipe with Blackwing)

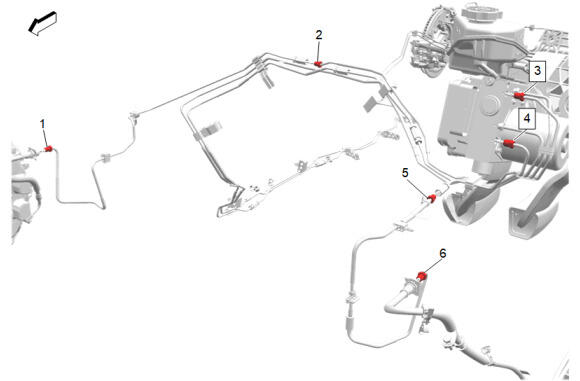

GM5898833Courtesy of GENERAL MOTORS COMPANY
Front Brake Pipe Replacement J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Brake Pipe Nut - - 18 N.m (13 lb ft) Front Brake Pipe Replacement - Right Side (without Blackwing) , or Front Brake Pipe Replacement - Right Side (with Blackwing)
2 Front Brake Pipe Nut - - 18 N.m (13 lb ft) Front Brake Front Pipe Replacement - Right Side (Rear Brake Front Pipe) , or Front Brake Front Pipe Replacement - Right Side (Blackwing with MG9) , or Front Brake Front Pipe Replacement - Right Side (Blackwing with MHU)
3 Front Brake Pipe Nut - - 18 N.m (13 lb ft) Front Brake Front Pipe Replacement - Right Side (Rear Brake Front Pipe) , or Front Brake Front Pipe Replacement - Right Side (Blackwing with MG9) , or Front Brake Front Pipe Replacement - Right Side (Blackwing with MHU)
4 Front Brake Pipe Nut - - 18 N.m (13 lb ft) Front Brake Front Pipe Replacement - Left Side (Front Brake Pipe without Blackwing) , or Front Brake Front Pipe Replacement - Left Side (Front Brake Pipe MHU with Blackwing) , or Front Brake Front Pipe Replacement - Left Side (Front Brake Pipe MG9 with Blackwing)
5 Front Brake Pipe Nut - - 18 N.m (13 lb ft) Front Brake Pipe Replacement - Left Side (Front Brake Pipe without Blackwing) , or Front Brake Pipe Replacement - Left Side (Front Brake Pipe with Blackwing)
6 Front Brake Pipe Nut - - 18 N.m (13 lb ft) Front Brake Pipe Replacement - Left Side (Front Brake Pipe without Blackwing) , or Front Brake Pipe Replacement - Left Side (Front Brake Pipe with Blackwing)
GM5501879Courtesy of GENERAL MOTORS COMPANY
Rear Brake Crossover Pipe Replacement J55, JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Pipe Nut [2x] - - 18 N.m (13 lb ft) Rear Brake Crossover Pipe Replacement (without Blackwing) , or Rear Brake Crossover Pipe Replacement (with Blackwing)

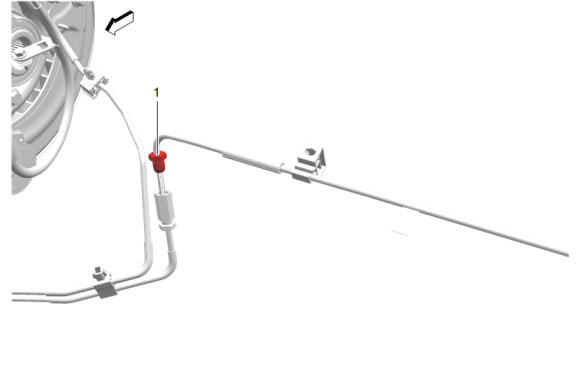

GM5898836Courtesy of GENERAL MOTORS COMPANY
Rear Brake Crossover Pipe Replacement J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Pipe Nut - - 18 N.m (13 lb ft) Rear Brake Crossover Pipe Replacement (without Blackwing) , or Rear Brake Crossover Pipe Replacement (with Blackwing)
GM5500632Courtesy of GENERAL MOTORS COMPANY
Rear Brake Hose Fitting and Gaskets J55, JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Hose Fitting - - 40 N.m (30 lb ft) Rear Brake Hose Replacement (J55, JE5) , or Rear Brake Hose Replacement (J6G)
2 Rear Brake Hose Fitting Gasket [2x] Yes - - Rear Brake Hose Replacement (J55, JE5) , or Rear Brake Hose Replacement (J6G)

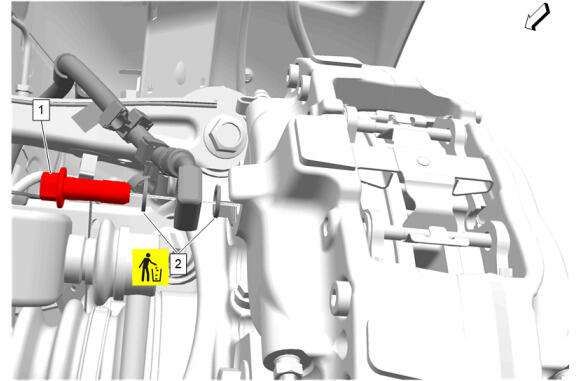

GM5898840Courtesy of GENERAL MOTORS COMPANY
Rear Brake Hose Fitting and Gaskets J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Hose Fitting - - 40 N.m (30 lb ft) Rear Brake Hose Replacement (J55, JE5) , or Rear Brake Hose Replacement (J6G)
2 Rear Brake Hose Fitting Gasket [2x] Yes - - Rear Brake Hose Replacement (J55, JE5) , or Rear Brake Hose Replacement (J6G)

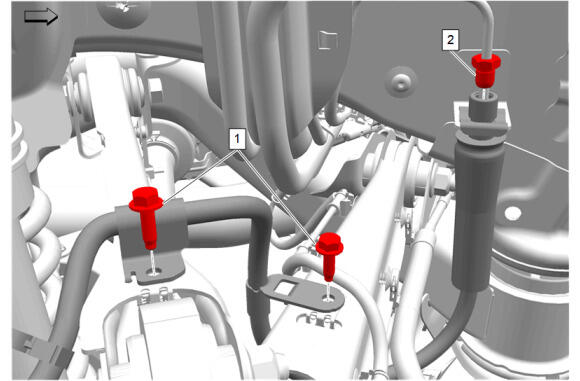

GM5898838Courtesy of GENERAL MOTORS COMPANY
Rear Brake Hose Replacement

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Hose Clip Bolt [2x] - - 9 N.m (80 lb in) Rear Brake Hose Replacement (J55, JE5) , or Rear Brake Hose Replacement (J6G)
2 Rear Brake Pipe Nut - - 18 N.m (13 lb ft) Rear Brake Crossover Pipe Replacement (without Blackwing) , or Rear Brake Crossover Pipe Replacement (with Blackwing)
GM5501880Courtesy of GENERAL MOTORS COMPANY
Rear Brake Pipe Replacement J55, JE5

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Pipe Nut [2x] - - 18 N.m (13 lb ft) Rear Brake Front Pipe Replacement - Right Side (Rear Brake Pipe Fitting) , or Rear Brake Front Pipe Replacement - Right Side (Blackwing with MHU) , or Rear Brake Front Pipe Replacement - Right Side (Blackwing with MG9)
2 Rear Brake Pipe Nut [2x] - - 18 N.m (13 lb ft) Rear Brake Front Pipe Replacement - Left Side (Rear Brake Rear Pipe) , or Rear Brake Front Pipe Replacement - Left Side (Blackwing with MG9) , or Rear Brake Front Pipe Replacement - Left Side (Blackwing with MHU)
3 Rear Brake Pipe Nut [2x] - - 18 N.m (13 lb ft) Rear Brake Pipe Replacement - Left Side (Rear Brake Front Pipe)
4 Rear Brake Pipe Nut [2x] - - 18 N.m (13 lb ft) Rear Brake Pipe Replacement - Right Side (Rear Brake Front Pipe)

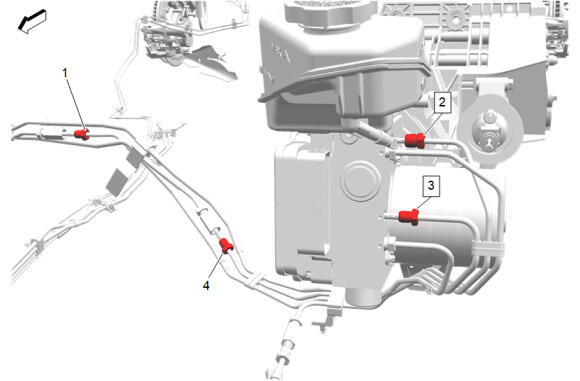

GM5898839Courtesy of GENERAL MOTORS COMPANY
Rear Brake Pipe Replacement J6G

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Brake Pipe Nut - - 18 N.m (13 lb ft) Rear Brake Front Pipe Replacement - Right Side (Rear Brake Pipe Fitting) , or Rear Brake Front Pipe Replacement - Right Side (Blackwing with MHU) , or Rear Brake Front Pipe Replacement - Right Side (Blackwing with MG9)
2 Rear Brake Pipe Nut - - 18 N.m (13 lb ft) Rear Brake Front Pipe Replacement - Left Side (Rear Brake Rear Pipe) , or Rear Brake Front Pipe Replacement - Left Side (Blackwing with MG9) , or Rear Brake Front Pipe Replacement - Left Side (Blackwing with MHU)
3 Rear Brake Pipe Nut - - 18 N.m (13 lb ft) Rear Brake Front Pipe Replacement - Right Side (Rear Brake Pipe Fitting) , or Rear Brake Front Pipe Replacement - Right Side (Blackwing with MHU) , or Rear Brake Front Pipe Replacement - Right Side (Blackwing with MG9)
4 Rear Brake Pipe Nut - - 18 N.m (13 lb ft) Rear Brake Front Pipe Replacement - Left Side (Rear Brake Rear Pipe) , or Rear Brake Front Pipe Replacement - Left Side (Blackwing with MG9) , or Rear Brake Front Pipe Replacement - Left Side (Blackwing with MHU)
