Rear Seat Back Cushion Removal and Installation

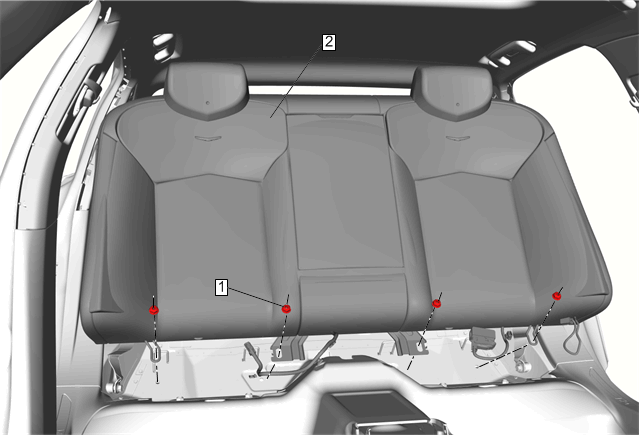

GM4254049

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Rear Seat Cushion Removal and Installation (except Platinum) Rear Seat Cushion Removal and Installation (Platinum 40%) Rear Seat Cushion Removal and Installation (Platinum 20%)
Disconnect the center seat belt lower anchor. Rear Center Seat Belt Retractor Replacement (except Platinum)Rear Center Seat Belt Retractor Replacement (Platinum)

1

Rear Seat Back Cushion Nut [4x]

CAUTION:

Refer to Fastener Caution

Tighten
45 N.m (33 lb ft)

2

Rear Seat Back Cushion

Disconnect the electrical connector.
With the aid of an assistant, lift up and remove the seat back cushion.
