Rear Seat Cushion Removal and Installation (Platinum 40%)

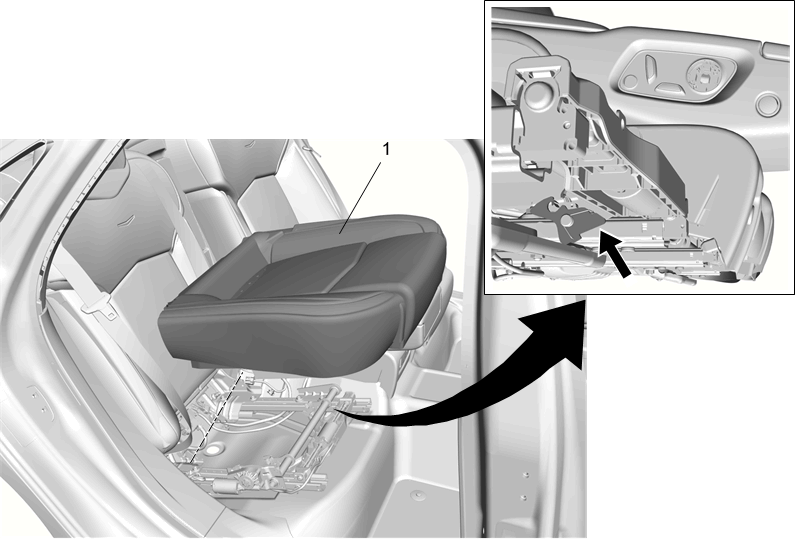

GM4254412Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Cushion

Procedure

  1. Use a flat bladed tool to pry up and release the latch.
  2. Lift up on the front of the seat cushion.
  3. Disconnect the electrical connector.
NOTE:

The latch is located on the left hand side of both seat cushions.
