Rear Center Seat Belt Retractor Replacement (Platinum)

Courtesy of GENERAL MOTORS COMPANY

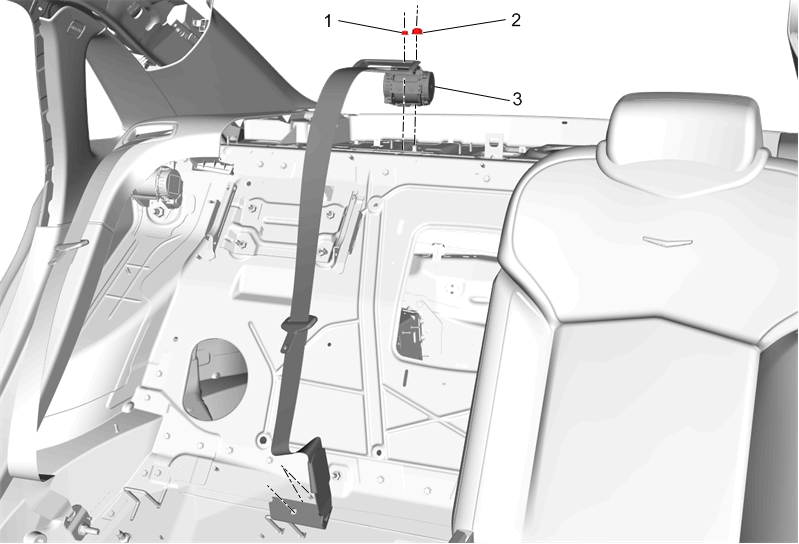

Callout	Component Name
Preliminary Procedures  Rear Window Panel Trim Replacement (Without Platinum)Rear Window Panel Trim Replacement (With Platinum)
1	Rear Seat Center Belt Nut-Upper Front CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Rear Seat Center Belt Nut-Upper Rear Tighten  45 N.m (33 lb ft)
3	Rear Center Seat Belt Retractor
