Rear Seat Cushion Removal and Installation (Platinum 20%)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove right side rear seat cushion.

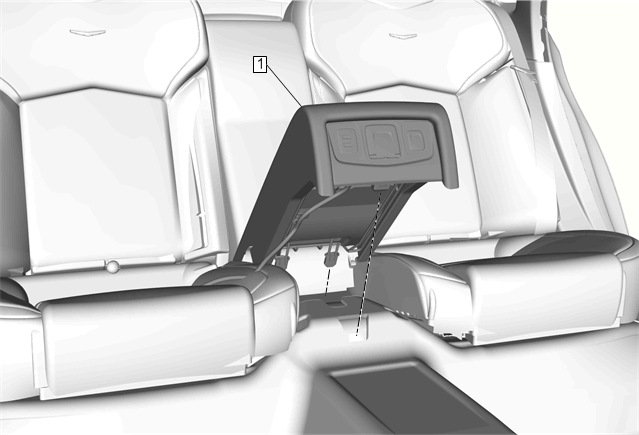

1	Rear Seat Cushion Procedure Disconnect the electrical connector. Pull up on the front of the seat cushion and lift out of the vehicle. Inspect sheet metal interface for flushness before replacing plastic retainer. NOTE: DISCARD the plastic retainer and replace with NEW. Retainers are single use ONLY.

Callout

Component Name

Preliminary Procedure
Remove right side rear seat cushion.

Rear Seat Cushion

Procedure

NOTE:

DISCARD the plastic retainer and replace with NEW. Retainers are single use ONLY.
