Front Wheelhouse Panel Extension Replacement (CT6)

Courtesy of GENERAL MOTORS COMPANY

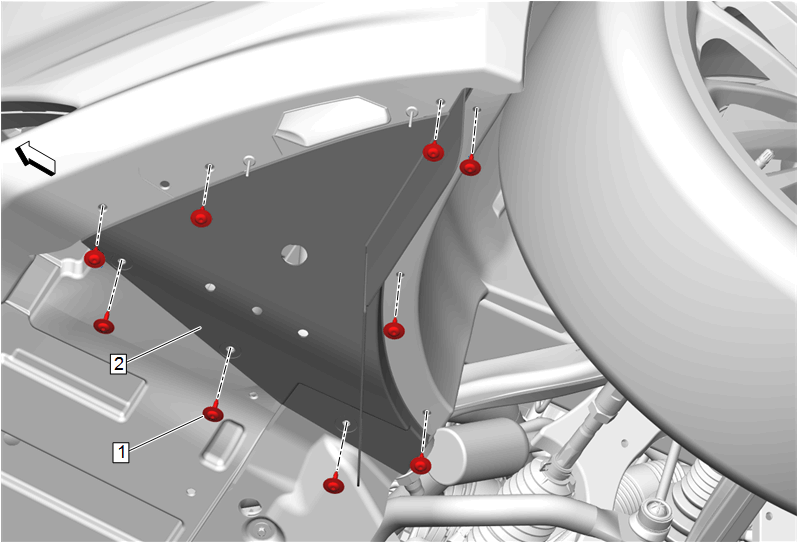

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Remove the front wheelhouse liner retainer if equipped.
1	Front Wheelhouse Panel Extension Bolt [9x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
3	Front Wheelhouse Panel Extension Procedure Remove the support and lower the vehicle.

Callout

Component Name

Preliminary Procedures

Front Wheelhouse Panel Extension Bolt [9x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Wheelhouse Panel Extension
Procedure
Remove the support and lower the vehicle.
