Engine Front Splash Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

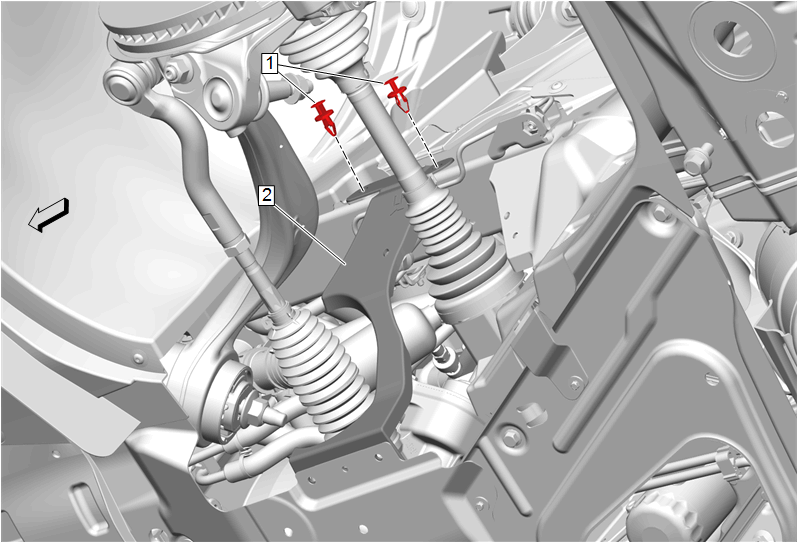

Callout	Component Name
Preliminary Procedures Remove the tire and wheel assembly. Tire and Wheel Removal and Installation Remove 2 underbody air deflector bolts. Underbody Front Air Deflector Replacement Remove the engine lower front splash shield, if equipped.
1	Engine Front Splash Shield Retainer [2x]
2	Engine Front Splash Shield Procedure Install the tire and wheel assembly. Tire and Wheel Removal and Installation

Callout

Component Name

Preliminary Procedures

Remove the tire and wheel assembly. Tire and Wheel Removal and Installation
Remove 2 underbody air deflector bolts. Underbody Front Air Deflector Replacement
Remove the engine lower front splash shield, if equipped.

Engine Front Splash Shield Retainer [2x]

Engine Front Splash Shield
Procedure
Install the tire and wheel assembly. Tire and Wheel Removal and Installation
