Engine Front Splash Rear Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

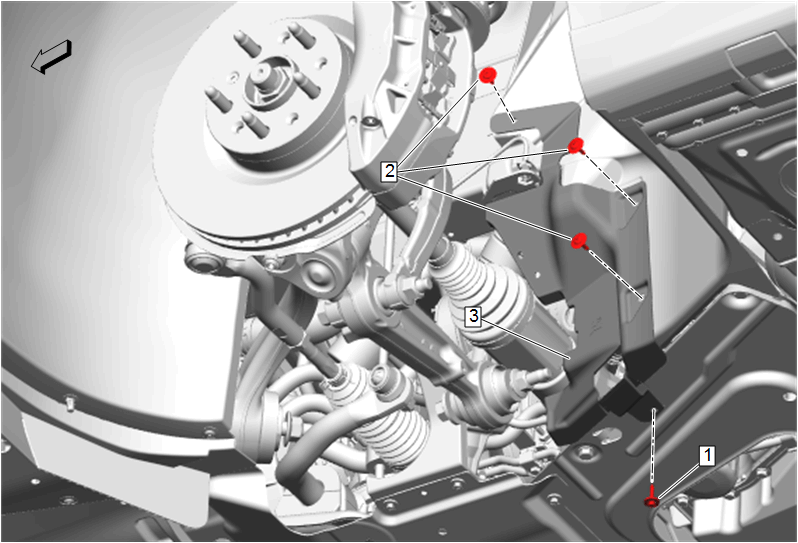

Callout	Component Name
Preliminary Procedures Remove the tire and wheel assembly. Tire and Wheel Removal and Installation Remove the engine lower front splash shield, if equipped.
1	Front Wheelhouse Panel Splash Shield Lower Bolt CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Wheelhouse Panel Splash Shield Bolt [3x] Tighten 2.5 N.m (22 lb in)
3	Engine Front Splash Rear Shield Procedure Install the tire and wheel assembly. Tire and Wheel Removal and Installation
