Rear Compartment Lid Hinge Replacement

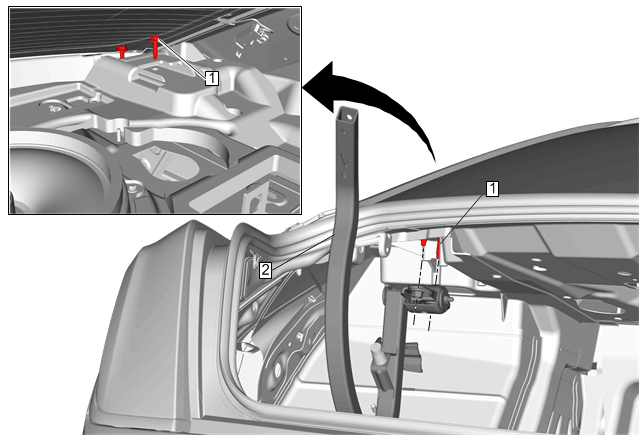

GM4254610Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Rear Compartment Lid Replacement
  2. Rear Window Panel Trim Replacement (Without Platinum)Rear Window Panel Trim Replacement (With Platinum)
  3. Rear Compartment Lid Hinge Spring Replacement
  4. Rear Compartment Lid Power Assist Actuator Replacement
1 Rear Compartment Lid Hinge Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Rear Compartment Lid Hinge

Procedure

  1. With the aid of an assistant, remove the rear compartment lid hinge.
  2. Rear Compartment Lid Adjustment
