Rear Window Panel Trim Replacement (With Platinum)

Courtesy of GENERAL MOTORS COMPANY

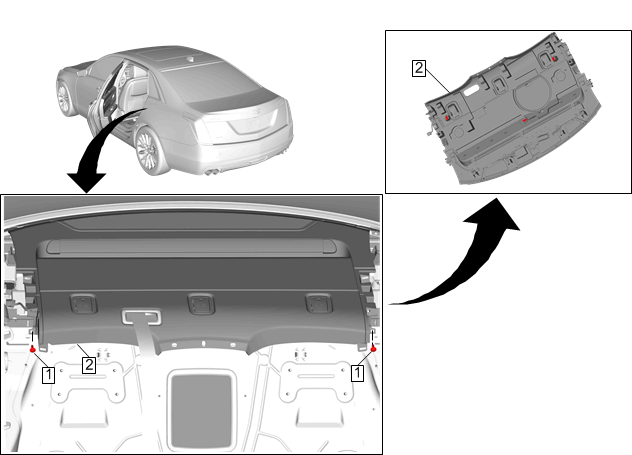

Callout	Component Name
Preliminary Procedures Rear Seat Belt Guide Trim Cover Replacement (except Platinum)Rear Seat Belt Guide Trim Cover Replacement (Platinum) Rear Seat Back Center Panel Replacement Auxiliary Air Conditioning Air Outlet Duct Replacement (Right Side)Auxiliary Air Conditioning Air Outlet Duct Replacement (Left Side)
1	Rear Window Panel Trim Retainer [2x] Procedure Use a flat bladed plastic trim tool.
2	Rear Window Panel Trim Procedure Loosen the 3 integral nuts in the panel rear window sheet metal and slide rear window panel trim forward slightly to clear keyhole slots. Rear Window Inside Sunshade Replacement Disconnect the electrical connector. Lift up on the rear window panel to release the retainers under the forward portion of the panel. With the aid of an assistant, guide the rear window panel forward in the vehicle and upwards to clear the speaker system. When replacing the rear window panel trim assembly, transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Rear Window Panel Trim Retainer [2x]
Procedure
Use a flat bladed plastic trim tool.

Rear Window Panel Trim

Procedure

Loosen the 3 integral nuts in the panel rear window sheet metal and slide rear window panel trim forward slightly to clear keyhole slots. Rear Window Inside Sunshade Replacement
Disconnect the electrical connector.
Lift up on the rear window panel to release the retainers under the forward portion of the panel.
With the aid of an assistant, guide the rear window panel forward in the vehicle and upwards to clear the speaker system.
When replacing the rear window panel trim assembly, transfer all necessary components.
