Rear Compartment Lid Power Assist Actuator Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. CAUTION: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result. Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side

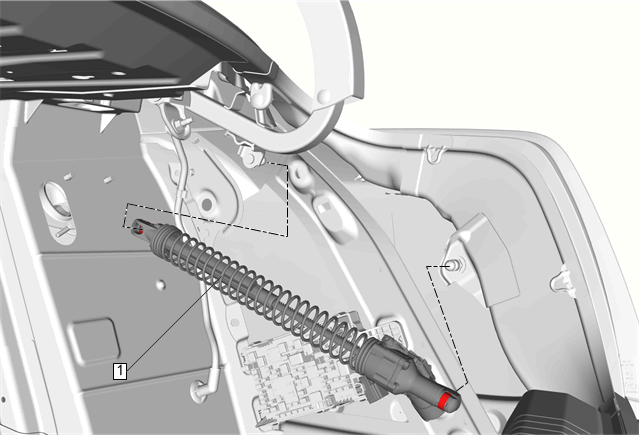

1	Rear Compartment Lid Power Assist Actuator Procedure Disconnect the electrical connector. Release Wiring Harness Retainer Release the locking tabs on the strut. Ensure the clip is fully seated when the strut is installed. If the clip cannot be fully seated, install a NEW strut.

Callout

Component Name

WARNING:

When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

CAUTION:

Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.

Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side

Rear Compartment Lid Power Assist Actuator

Procedure

Disconnect the electrical connector.
Release Wiring Harness Retainer
Release the locking tabs on the strut.
Ensure the clip is fully seated when the strut is installed. If the clip cannot be fully seated, install a NEW strut.
