Rear Compartment Lid Adjustment

Courtesy of GENERAL MOTORS COMPANY

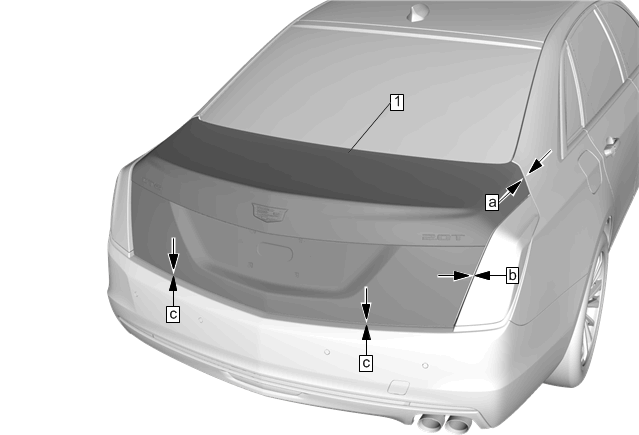

Callout	Component Name
1	Rear Compartment Lid CAUTION: Refer to Fastener Caution Procedure Loosen the rear compartment lid hinge bolts (Qty: 4) to perform adjustments (a) and (b). Adjust the rear compartment lid in order to obtain an even gap between the rear compartment lid and the quarter outer panel, the rear tail lamp, and the rear bumper fascia and so that the rear compartment lid is flush with the quarter outer panel, the rear tail lamp, and the rear bumper fascia. Adjustments Rear compartment lid to quarter outer panel (a) 3.0 mm ± 0.75 mm (0.12 in ± 0.03 in) Tail lamp to rear compartment lid (b) 3 mm ± 1 mm (0.12 in ± 0.04 in) Rear compartment lid to rear bumper fascia (c) 5.5 mm ± 1.5 mm (0.22 in ± 0.06 in) Tighten 22 N.m (16 lb ft)

Callout

Component Name

Rear Compartment Lid

CAUTION:

Procedure

Loosen the rear compartment lid hinge bolts (Qty: 4) to perform adjustments (a) and (b).
Adjust the rear compartment lid in order to obtain an even gap between the rear compartment lid and the quarter outer panel, the rear tail lamp, and the rear bumper fascia and so that the rear compartment lid is flush with the quarter outer panel, the rear tail lamp, and the rear bumper fascia.
Adjustments
- Rear compartment lid to quarter outer panel (a) 3.0 mm ± 0.75 mm (0.12 in ± 0.03 in)
- Tail lamp to rear compartment lid (b) 3 mm ± 1 mm (0.12 in ± 0.04 in)
- Rear compartment lid to rear bumper fascia (c) 5.5 mm ± 1.5 mm (0.22 in ± 0.06 in)

Tighten
22 N.m (16 lb ft)
