Headlining Rear Trim Panel Replacement

Preliminary Procedures

1. Lower the rear of headliner. Refer to Headlining Trim Panel Replacement (Standard Wheelbase) Headlining Trim Panel Replacement (Extended Wheelbase) .
2. Remove the coat hooks. Refer to Coat Hook Replacement .
3. Remove both 3rd row rear seat belt retractor covers.
4. Remove the 3rd row rear seat belt retractor upper fasteners. Refer to 3rd Row Seat Belt Retractor Replacement (Short Wheelbase)3rd Row Seat Belt Retractor Replacement (Long Wheelbase) .
5. Remove the body rear corner upper garnish moldings (Extended Wheelbase). Refer to Body Rear Corner Upper Garnish Molding Replacement (Standard Wheelbase)Body Rear Corner Upper Garnish Molding Replacement (Extended Wheelbase) .
6. Remove the 3rd row center seat belt retractor. Refer to 3rd Row Center Seat Belt Retractor Replacement (Long Wheelbase)3rd Row Center Seat Belt Retractor Replacement (Short Wheelbase) .

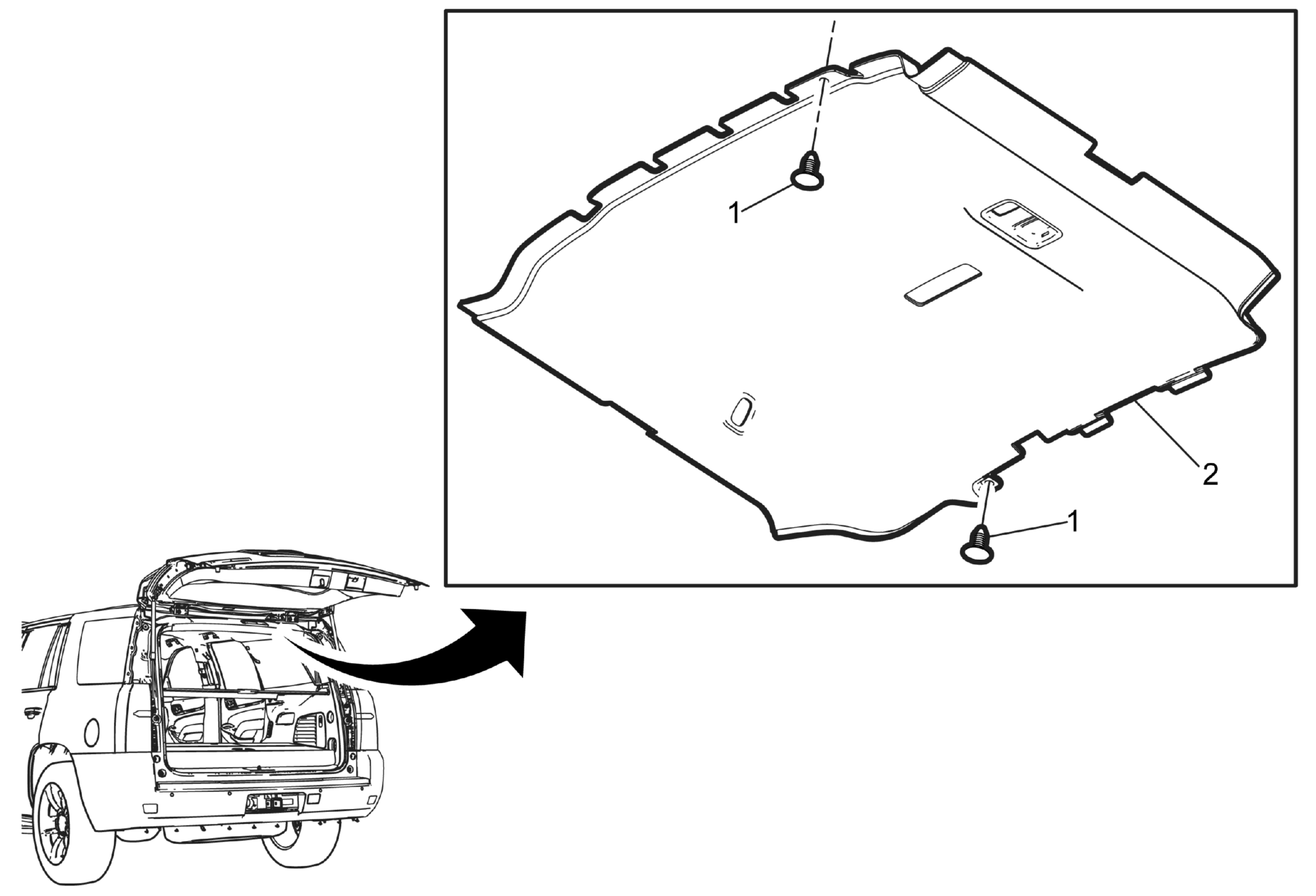

Procedure

1. Disconnect electrical connector.
2. Route 3rd row center belt latch striker thru opening in headliner trim bezel.
