3rd Row Center Seat Belt Retractor Replacement (Short Wheelbase)

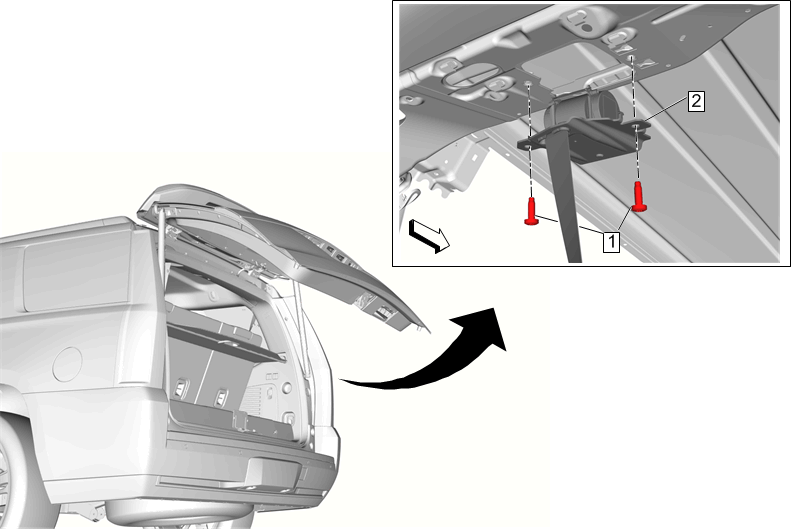

Fig 1: 3rd Row Center Seat Belt Retractor (Short Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the roof rear header garnish molding. Refer to Roof Rear Header Garnish Molding Replacement (Standard Wheelbase) . Remove the body rear corner upper garnish molding. Refer to Body Rear Corner Upper Garnish Molding Replacement (Standard Wheelbase) .
1	3rd Row Rear Center Seat Belt Retractor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Gently pull down on the rear of the headliner to gain access to the retractor fasteners. Tighten 45 N.m (32 lb ft)
2	3rd Row Rear Center Seat Belt Retractor Procedure Disengage and remove the retractor from the vehicle.

Callout

Component Name

Preliminary Procedures

3rd Row Rear Center Seat Belt Retractor Fastener (Qty: 2)

CAUTION:

Procedure
Gently pull down on the rear of the headliner to gain access to the retractor fasteners.
Tighten
45 N.m (32 lb ft)

3rd Row Rear Center Seat Belt Retractor
Procedure
Disengage and remove the retractor from the vehicle.
