3rd Row Center Seat Belt Retractor Replacement (Long Wheelbase)

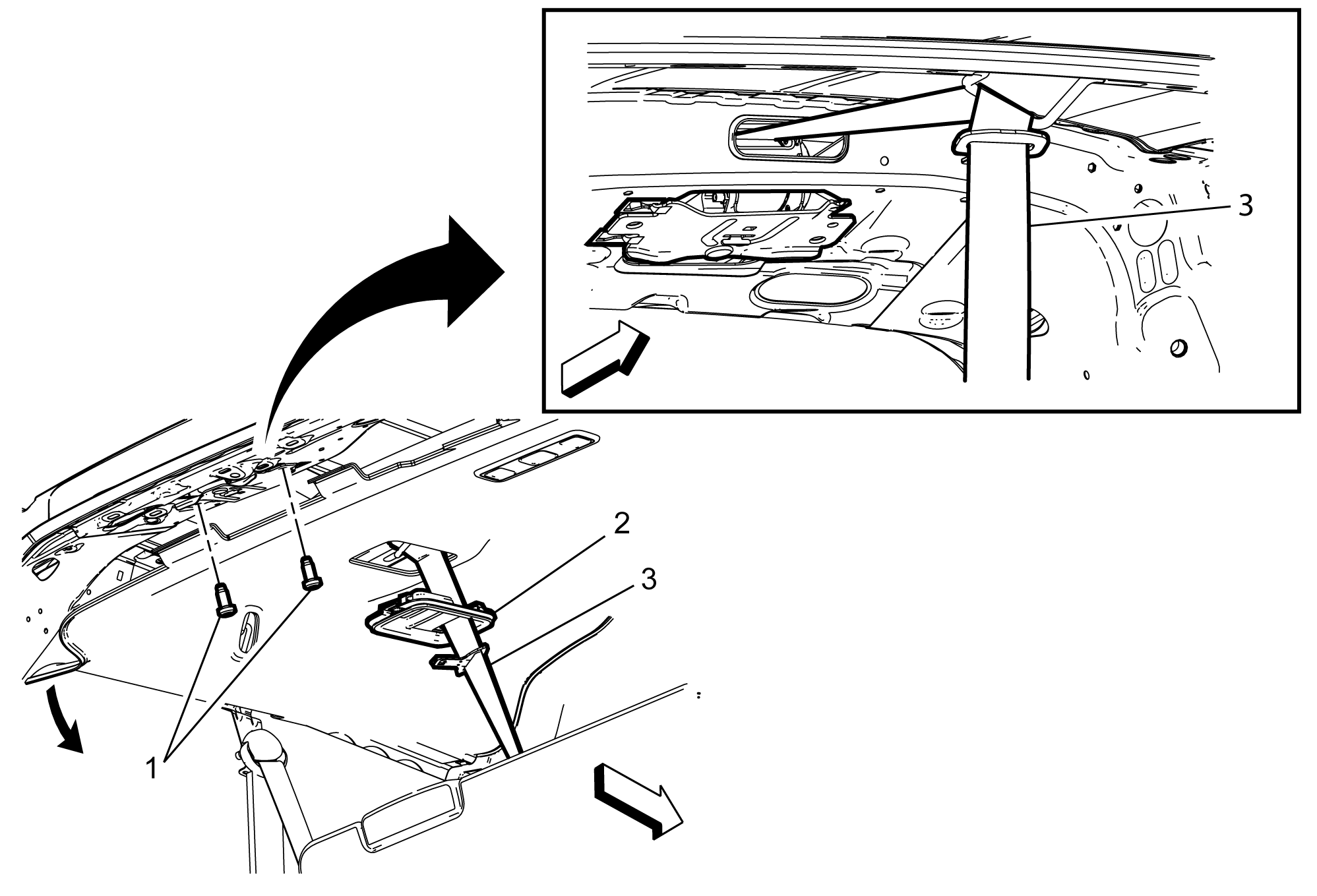

Fig 1: 3rd Row Center Seat Belt Retractor (Long Wheelbase)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the roof rear header garnish molding. Refer to Roof Rear Header Garnish Molding Replacement (Extended Wheelbase) . Remove the body rear corner upper garnish molding. Refer to Body Rear Corner Upper Garnish Molding Replacement (Extended Wheelbase) . Remove the coat hook. Refer to Coat Hook Replacement .
1	3rd Row Rear Center Seat Belt Retractor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Gently pull down on the rear of the headliner to gain access to the retractor fasteners. Tighten 45 N.m (32 lb ft)
2	Rear Seat Belt Opening Bezel Procedure Disengage the shoulder belt from the center belt buckle and slide it through the rear seat belt opening bezel.
3	3rd Row Rear Center Seat Belt Retractor Procedure Slide the belt through the headliner opening and then disengage and remove the retractor from the vehicle.
