3rd Row Seat Belt Retractor Replacement (Short Wheelbase)

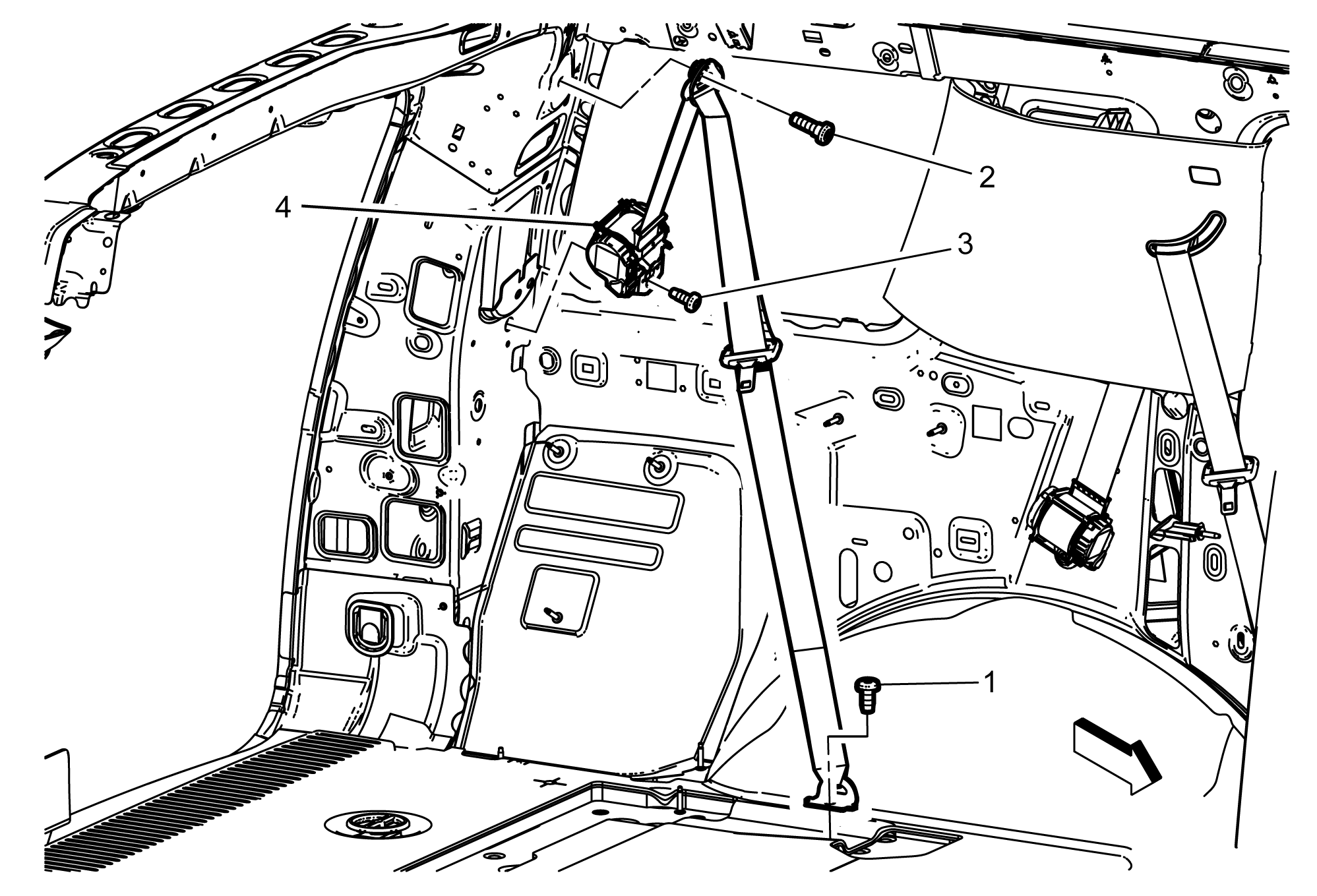

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Left Side, Standard Wheelbase)Quarter Lower Rear Trim Panel Replacement (Right Side, Standard Wheelbase) . |
|
| 1 | 3rd Row Rear Seat Shoulder Belt Anchor Plate Fastener
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (32 lb ft) |
| 2 | 3rd Row Rear Seat Belt Retractor Upper Fastener Tighten 45 N.m (32 lb ft) |
| 3 | 3rd Row Rear Seat Belt Retractor Lower Fastener Tighten 45 N.m (32 lb ft) |
| 4 | 3rd Row Rear Seat Belt Retractor |
