Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

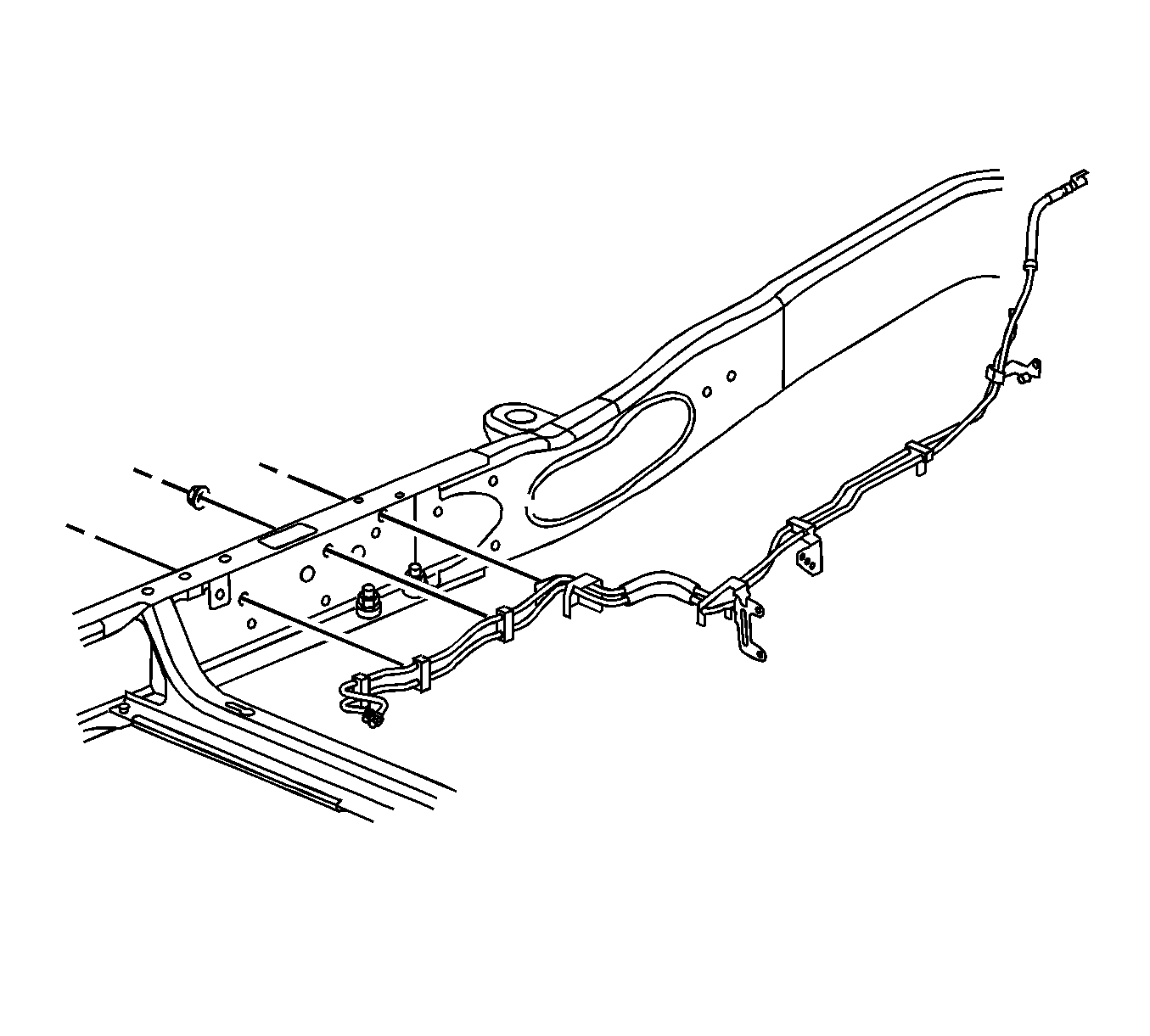

    Fig 1: Fuel/EVAP Line Bundle And Bracket Nuts
    GM1224406Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel/EVAP line bundle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the fuel line bracket nuts.

    Tighten

    Tighten the bolt to 18 N.m (13 lb ft).

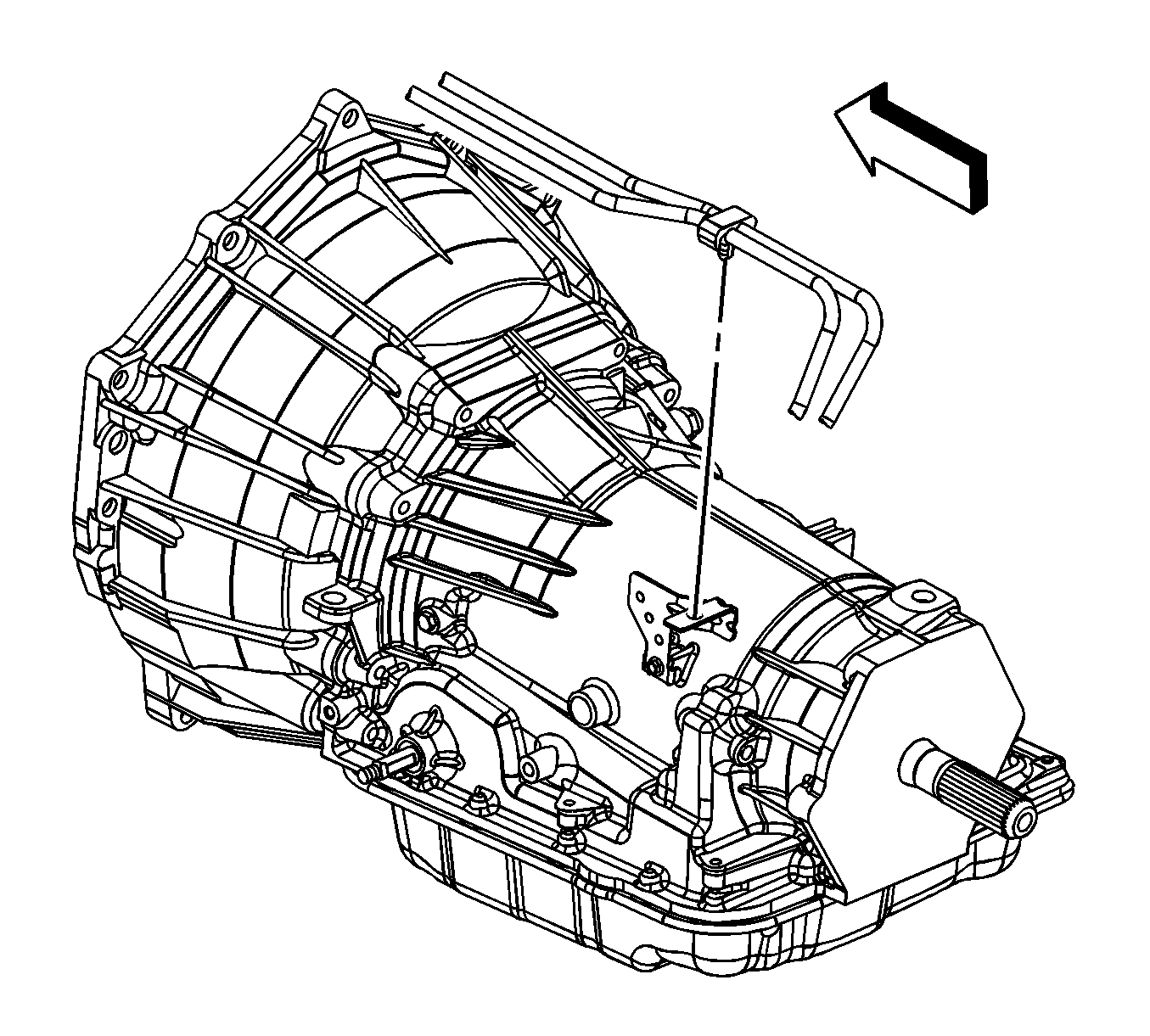

    3. Fig 2: Fuel Line Clip At Bracket
    GM1549616Courtesy of GENERAL MOTORS COMPANY
  3. Install the fuel hose/pipe clip to the bracket on the transfer case.
  4. Install the fuel line clip to the bracket on the automatic transmission.

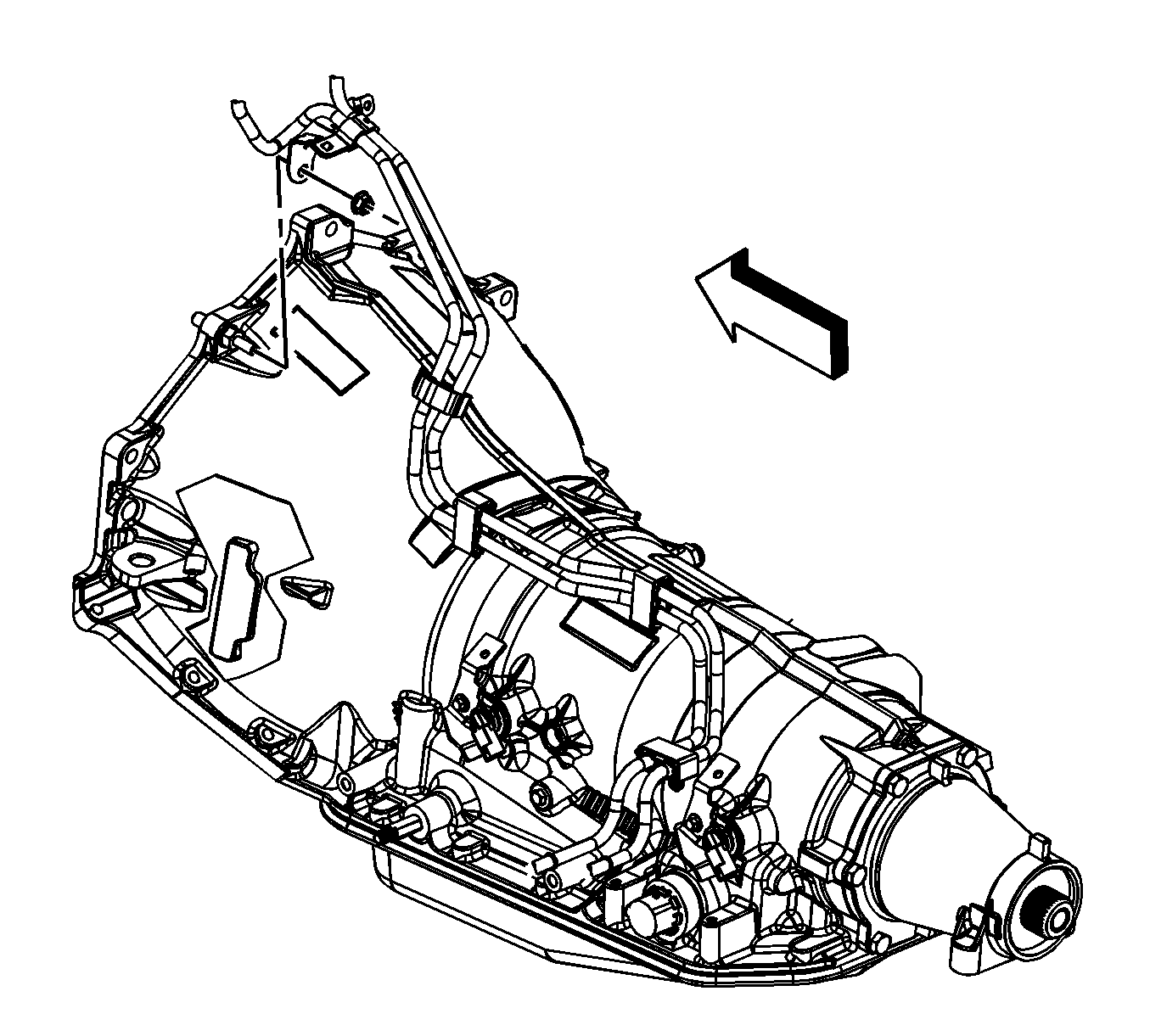

    5. Fig 3: Fuel Pipe Bracket And Nut At Bellhousing
    GM1238747Courtesy of GENERAL MOTORS COMPANY
  5. Install the fuel pipe bracket to the bellhousing stud.
  6. Install the fuel pipe bracket nut.

    Tighten

    Tighten the nut to 20 N.m (15 lb ft).

  7. Lower the vehicle.
  8. Raise the transmission.
  9. Install the transmission support crossmember. Refer to Transmission Support Crossmember Replacement (2WD)Transmission Support Crossmember Replacement (4WD)
  10. Remove the jack stand.
  11. Install the transfer case skid shield. Refer to Transfer Case Skid Shield Replacement
  12. Connect the heated oxygen sensor bank 1 sensor 1. Refer to Heated Oxygen Sensor Replacement - Bank 1 Sensor 1
  13. Position the propeller shaft and connect the u-joint retainers. Refer to Front Axle Propeller Shaft Replacement (NQH)Front Axle Propeller Shaft Replacement (Heavy Duty)

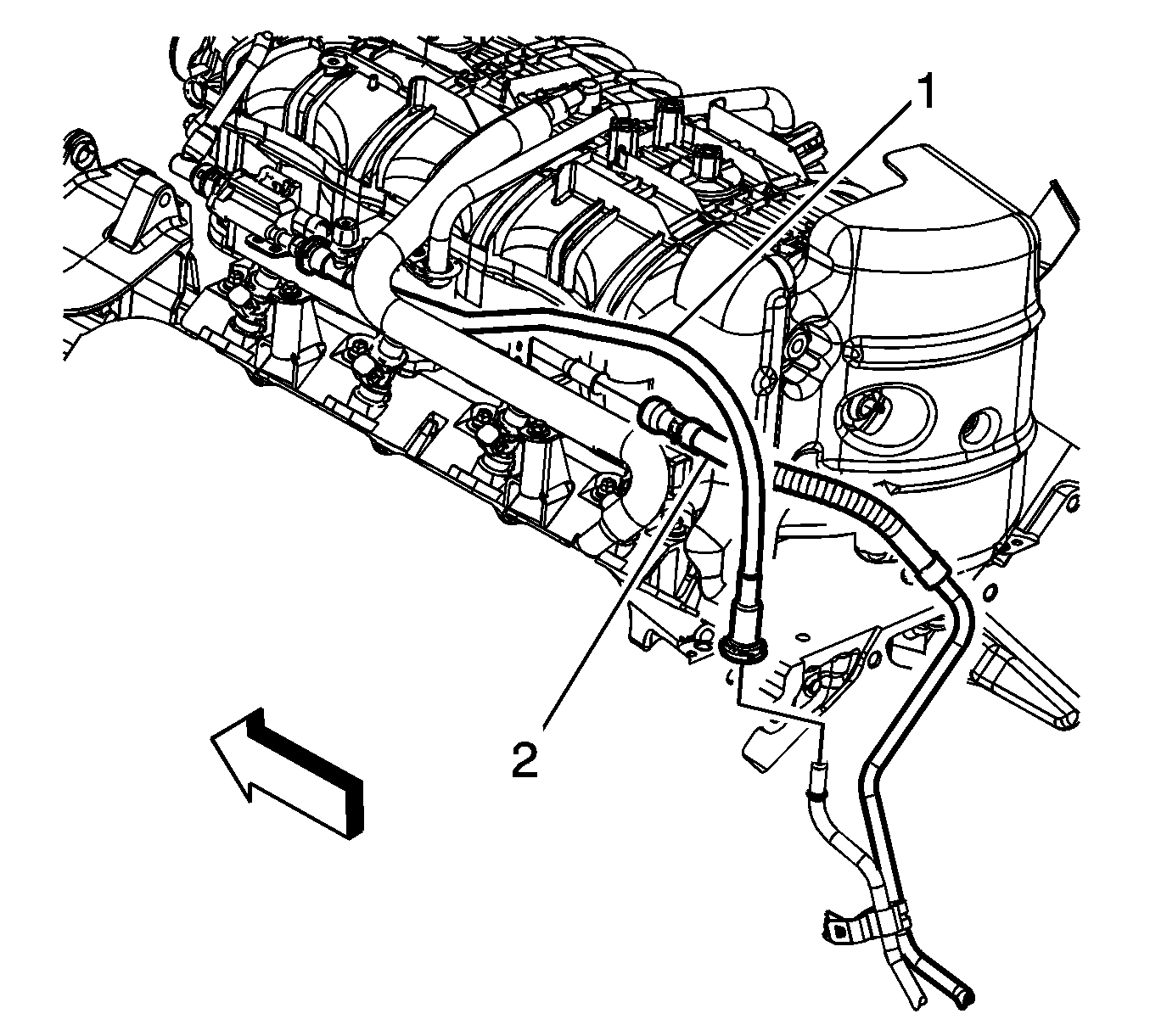

    14. Fig 4: Fuel Feed Pipe, EVAP Canister Purge Tube And Quick Connect Fitting
    GM1696917Courtesy of GENERAL MOTORS COMPANY
  14. Remove the caps from the fuel rail and EVAP line.
  15. Connect the EVAP line (1) quick connect fitting to the chassis line. Refer to Plastic Collar Quick Connect Fitting Service
  16. Connect the fuel feed line (2) quick connect fitting to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service
  17. Install the fuel fill cap.
  18. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery)Battery Negative Cable Disconnection and Connection (Single Battery)
  19. Use the following procedure in order to inspect for leaks:
    1. Turn the ignition ON, with the engine OFF, for 2 seconds.
    2. Turn the ignition OFF for 10 seconds.
    3. Turn the ignition ON, with the engine OFF.
    4. Inspect for fuel leaks.
  20. Install the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement
