Transmission Support Crossmember Replacement (2 WD)

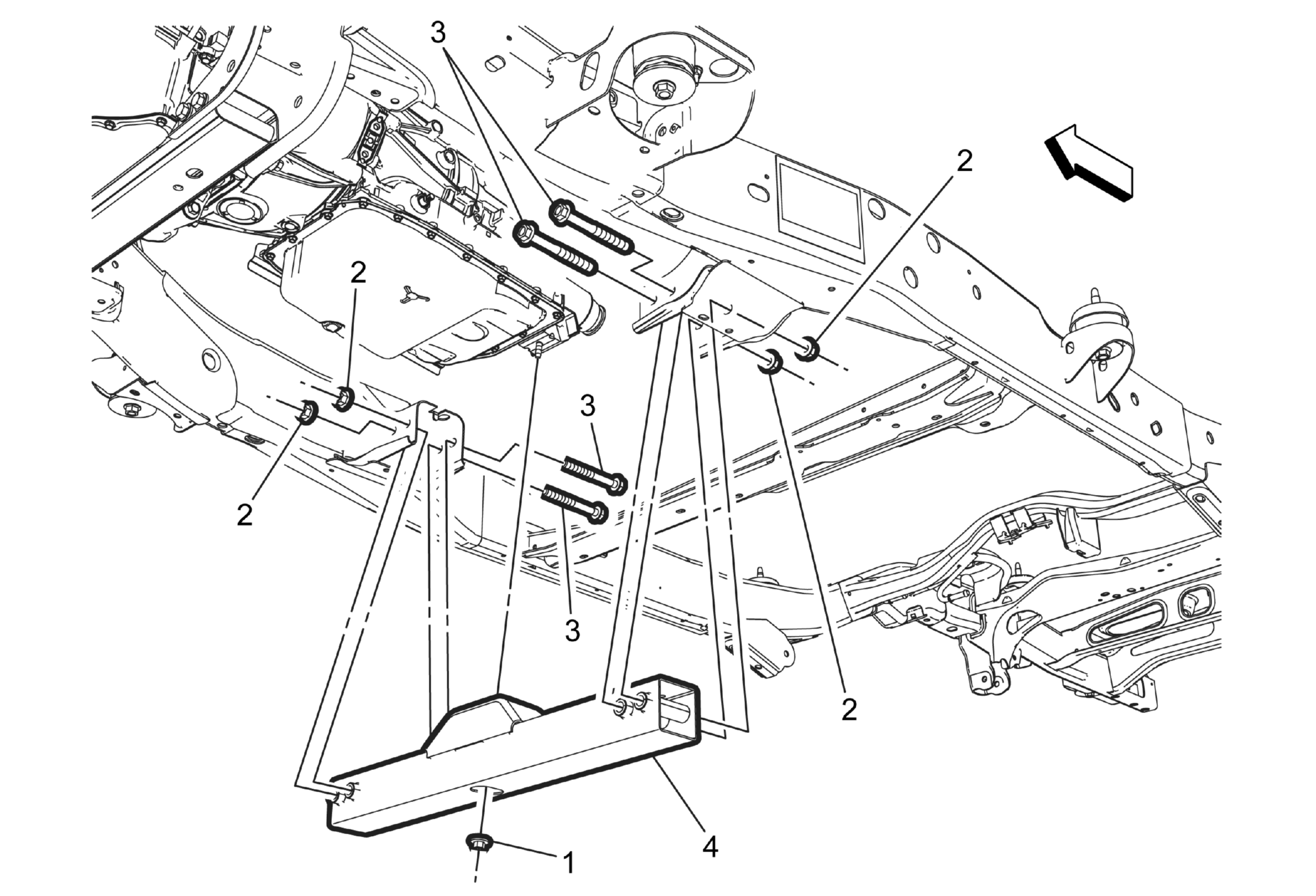

Fig 1: Transmission Support Crossmember (2WD - Light Duty)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Support the transmission with a suitable jack. Remove the transfer case skid shield, if equipped. Refer to Transfer Case Skid Shield Replacement
1	Transmission Mount Nut CAUTION: Refer to Fastener Caution Tighten 55 N.m (41 lb ft)
2	Transmission Crossmember Nut (4) Tighten 95 N.m (70 lb ft)
3	Transmission Crossmember Bolt (4)
4	Transmission Crossmember
