Transfer Case Skid Shield Replacement

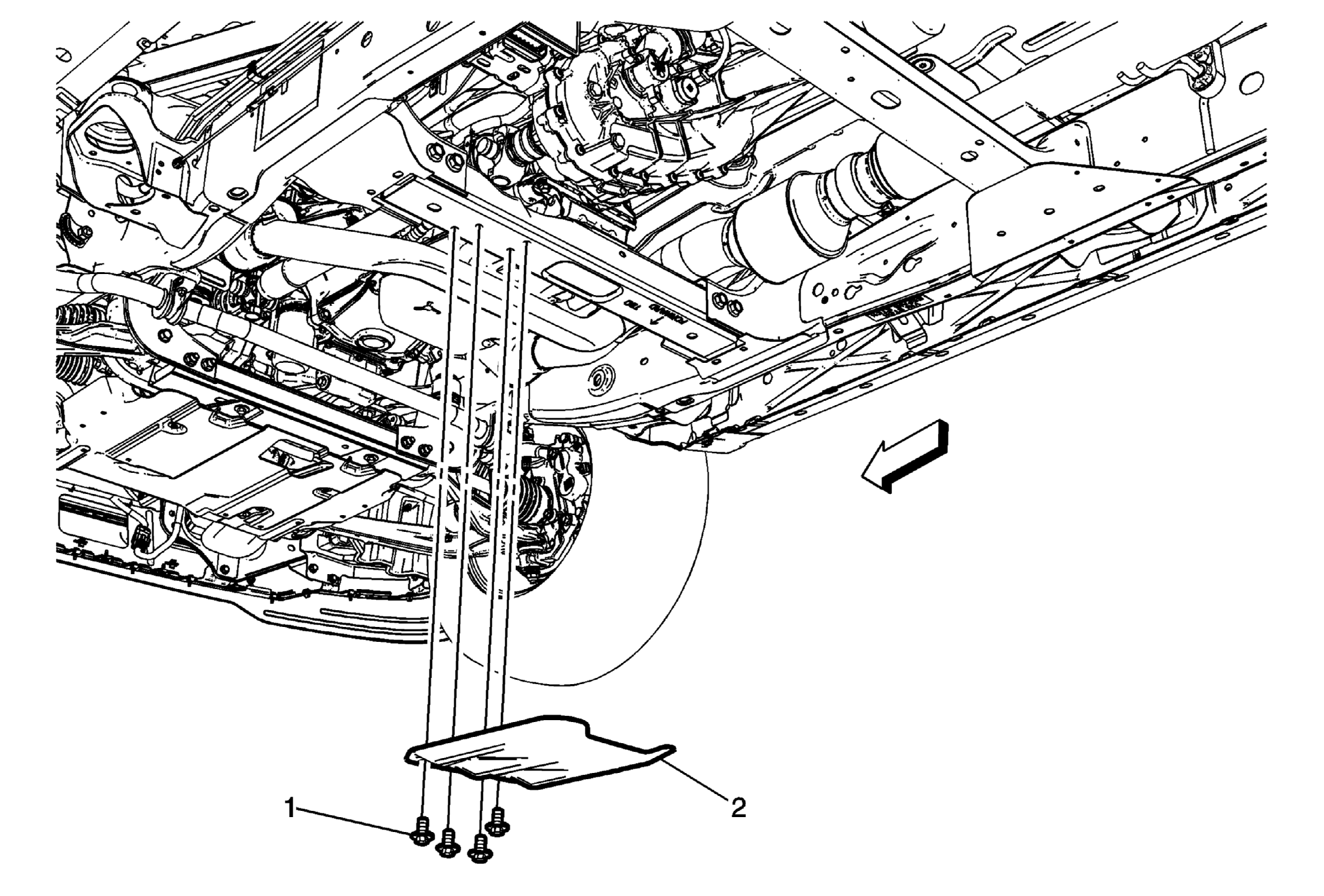

Fig 1: Transfer Case Skid Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Transfer Case Skid Shield Fasteners (Qty 4) CAUTION: Refer to Fastener Caution . Tighten  28 N.m (21 lb ft)
2	Transfer Case Skid Shield
