Installation Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Suburban 3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

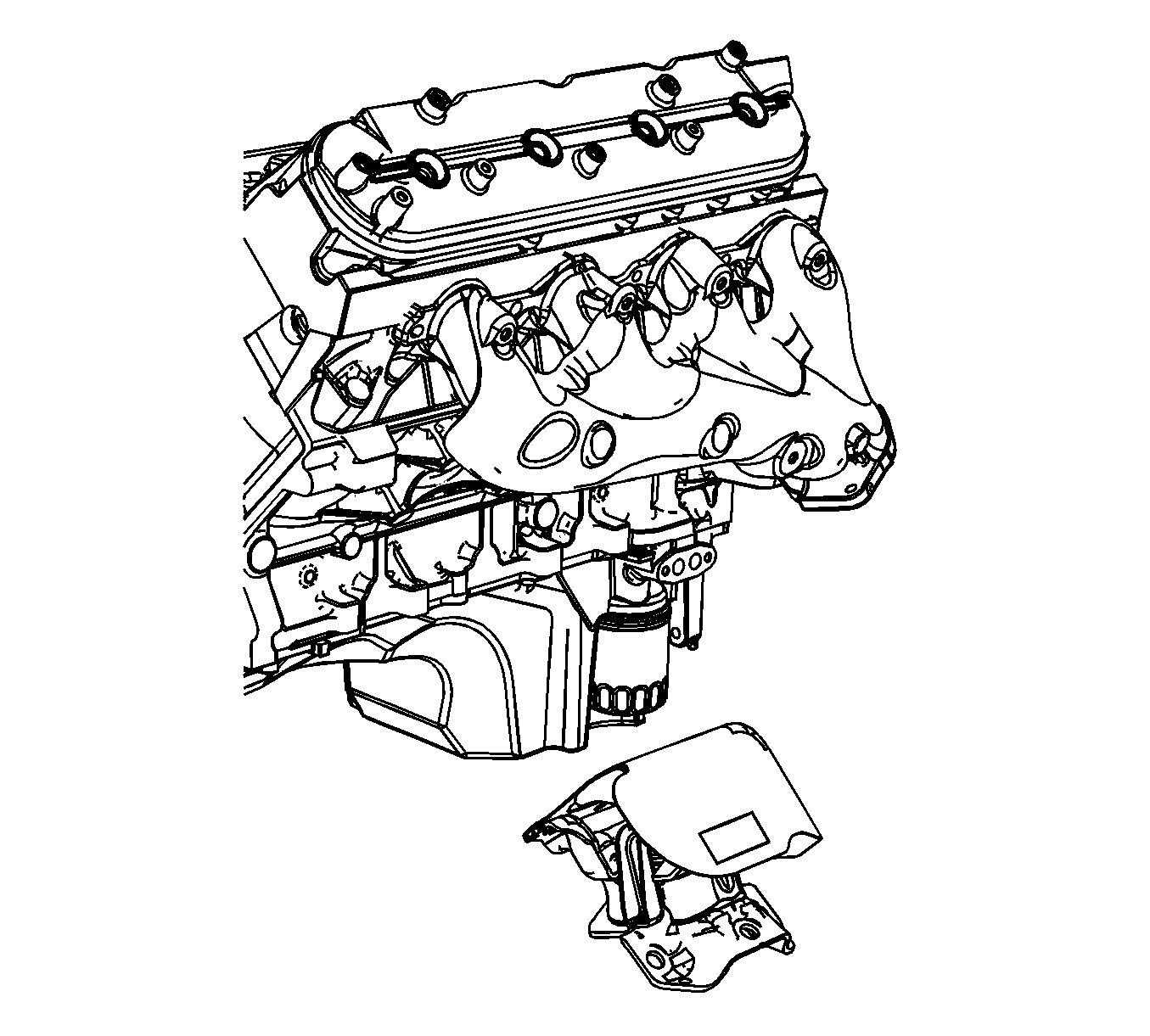

    Fig 1: Engine Mount
    GM1701800Courtesy of GENERAL MOTORS COMPANY
  1. Position the engine mount to the engine.
    2. Fig 2: Engine Mount To Engine Bolts - Left Side
    GM1701533Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the engine mount to engine bolts (1) and tighten to 65 N.m (48 lb ft).
  3. Using the adjustable jack, lower the engine until the engine mount is sitting flush on the frame.
  4. Remove the adjustable jack and block of wood from the engine oil pan.
  5. Install the left side exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Left Side (L96) .

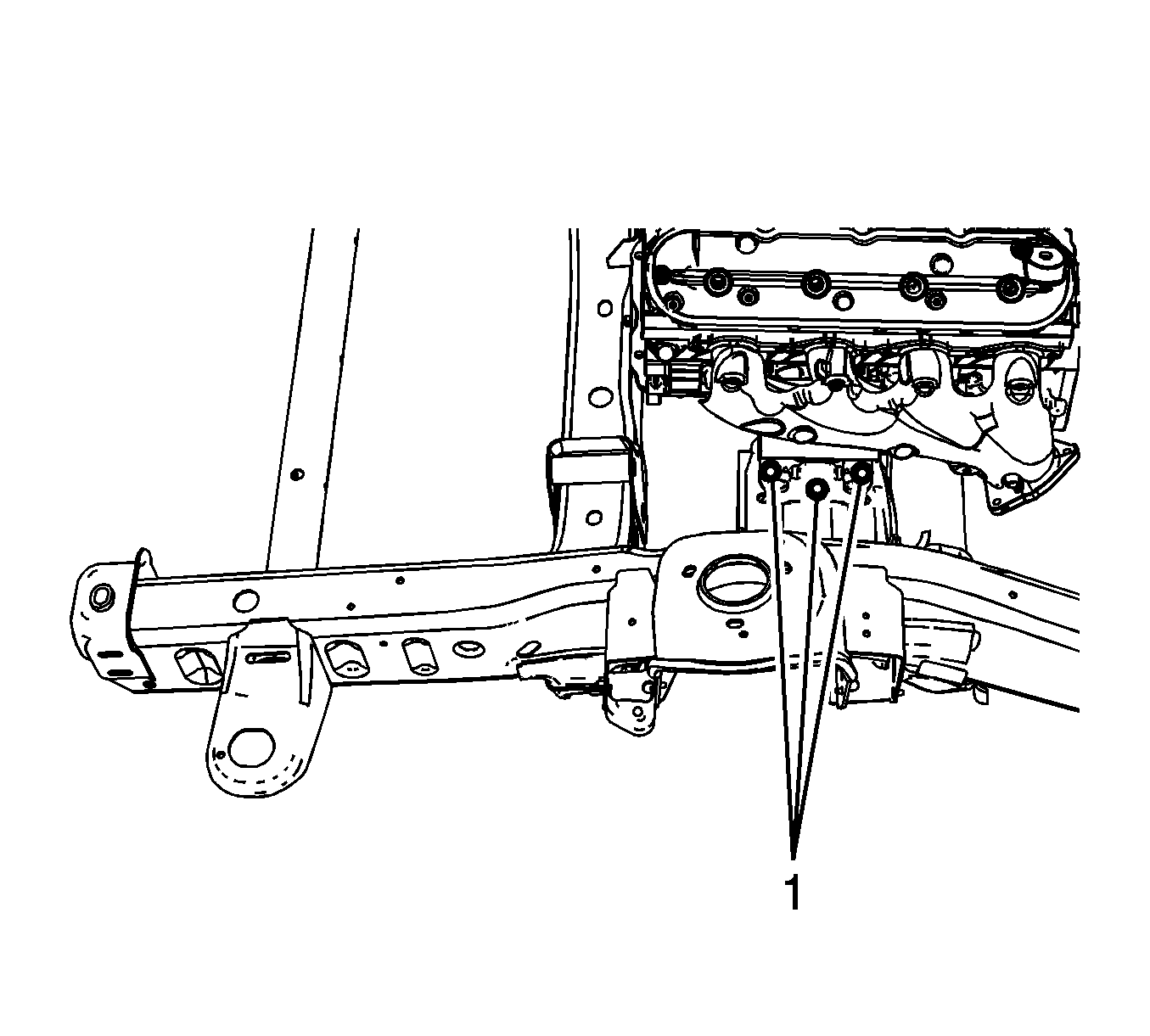

    6. Fig 3: Engine Mount And Bolts - Left Side
    GM1701017Courtesy of GENERAL MOTORS COMPANY
  6. Partially lower the vehicle.
  7. Install the engine mount to frame bolts (1). Tighten the bolts to 110 N.m (81 lb ft) starting with the middle bolt then either side bolt.
  8. Install the left wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Left Side (GMC)Front Wheelhouse Liner Replacement - Left Side (Chevrolet) .
  9. Raise the vehicle.
  10. Install the front stabilizer shaft insulators. Refer to Stabilizer Shaft Insulator Replacement (Light Duty)Stabilizer Shaft Insulator Replacement (Heavy Duty) .
  11. Install the clip for the transmission cooler lines.
  12. Lower the vehicle.
  13. Install the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
