Front Wheelhouse Liner Replacement - Left Side (GMC)

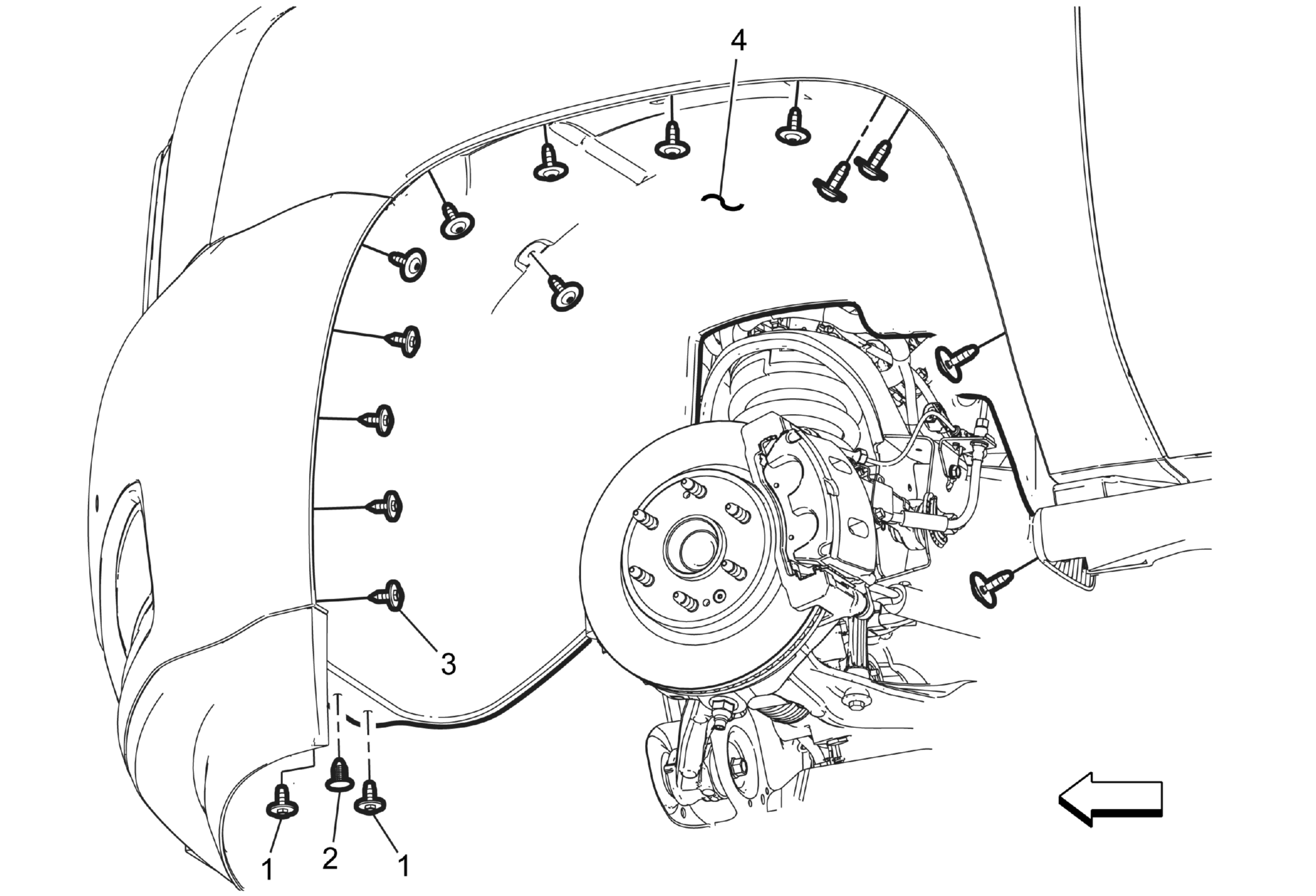

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (6-Lug Wheel)Tire and Wheel Removal and Installation (8-Lug Wheel) . |
|
| 1 | Front Wheelhouse Liner Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 7 N.m (62 lb in) |
| 2 | Front Wheelhouse Liner Plastic Retainer |
| 3 | Front Wheelhouse Liner Fasteners (Qty: 17) Tighten 2.5 N.m (22 lb in) |
| 4 | Front Wheelhouse Liner - Left
NOTE:
Disconnect any electrical harnesses/connectors and attached parts from the left side front wheelhouse liner as needed. |
