Exhaust Manifold Heat Shield Replacement - Left Side (L96)

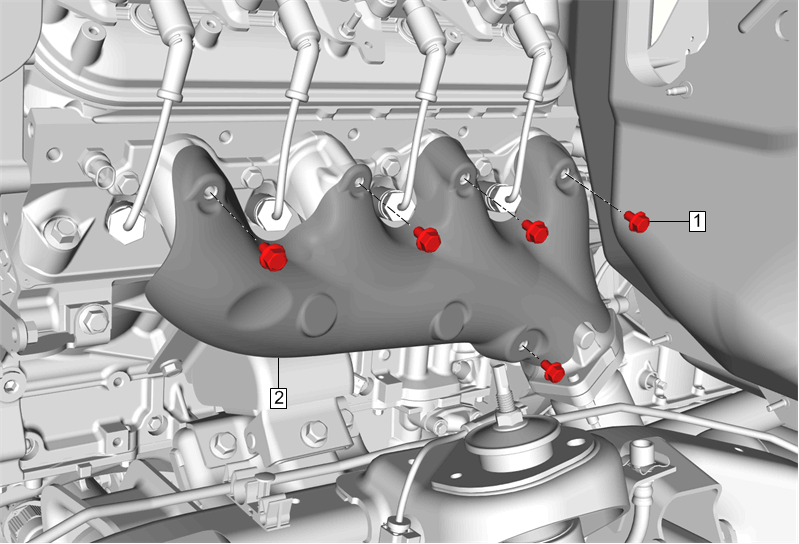

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Hot Exhaust System Warning . |
|
| 1 | Exhaust Manifold Heat Shield Bolt [5x]
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Exhaust Manifold Heat Shield |
