Front Fender Replacement - Right Side (GMC)

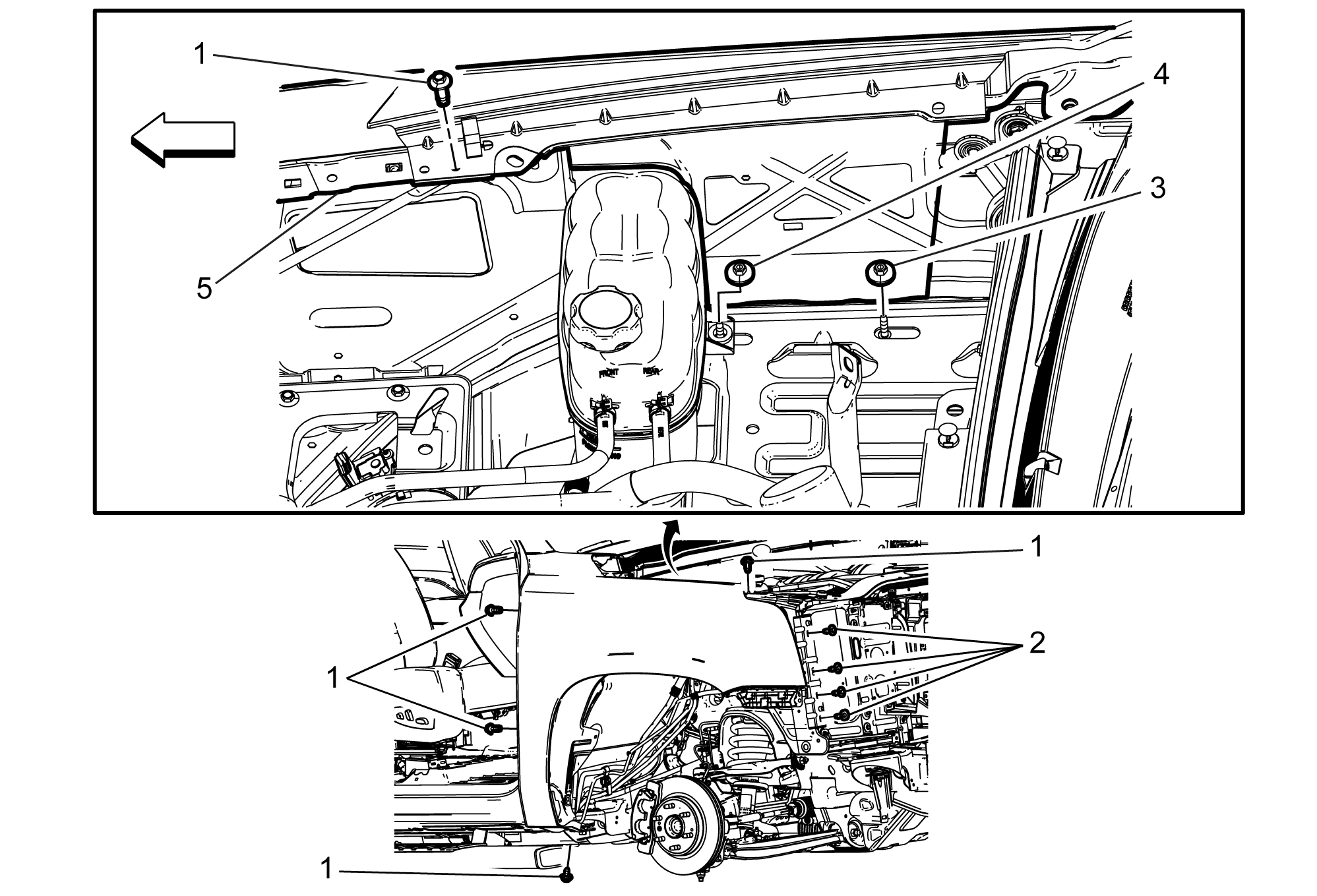

Fig 1: Front Fender - Right Side (GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the headlamp. Refer to Headlamp Replacement (GMC) Remove the front fender rear upper brace. Refer to Front Fender Rear Upper Brace Replacement . Remove the air cleaner bracket. Refer to Air Cleaner Bracket Replacement . Remove the coolant reservoir bottle from the right fender and set it aside. Do not open the cooling system. Refer to Radiator Surge Tank Replacement (L83 L86) . Remove the battery tray. Refer to Battery Tray Replacement . Remove the right hood hinge. Refer to Hood Hinge Replacement . Remove the right wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Right Side (GMC) . Remove the right hand side assist step. Refer to Assist Step Replacement (Step Pad - BRS)Assist Step Replacement (Assembly - BRS)Assist Step Replacement (BVE-Short Wheel Base)Assist Step Replacement (BVE-Long Wheel Base)
1	Right Fender Bolts (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) NOTE: Apply threadlock compound to the bolts.
2	Right Fender Inner Panel Bolts (Qty 4) Tighten 25 N.m (18 lb ft)
3	Battery Tray Nut Tighten 9 N.m (80 lb in)
4	Surge Tank Nut Tighten 9 N.m (80 lb in)
5	Right Fender Assembly Procedure Transfer any necessary additional parts as needed.
