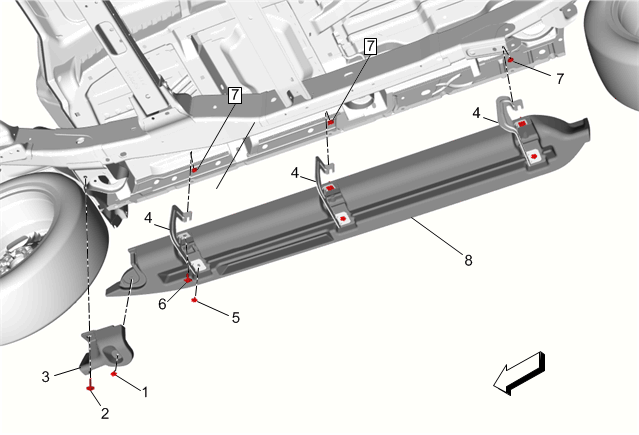

Assist Step Replacement (BVE-Short Wheel Base)
| Callout | Component Name |
|---|---|
| 1 | Assist Step Front (RH) Extension Bolt with Compression Limiter
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Assist Step Front (RH) Extension Bolt Tighten 25 N.m (18 lb ft) |
| 3 | Assist Step Front (RH) Extension
NOTE:
Position the extension to the assist step prior to securing the fasteners. |
| 4 | Assist Step Bracket (Qty: 3)
NOTE:
Assemble all of the brackets to the assist step prior to hanging the assist step brackets to the lower rocker panel mounting holes. |
| 5 | Assist Step Support Bracket Bolt (Qty: 3) Tighten 6 N.m (53 lb in) |
| 6 | Assist Step Support Bracket Bolt (Qty: 3) Tighten 20 N.m (15 lb ft) |
| 7 | Rocker Panel Bolt (Qty: 3) Tighten 6 N.m (53 lb in) |
| 8 | Assist (RH) Step
NOTE:
Loosen the rocker panel bolts and slide the assist step support brackets away from the rocker panel. |
