Headlamp Automatic Control Module Replacement (Daytime Running Lamp)

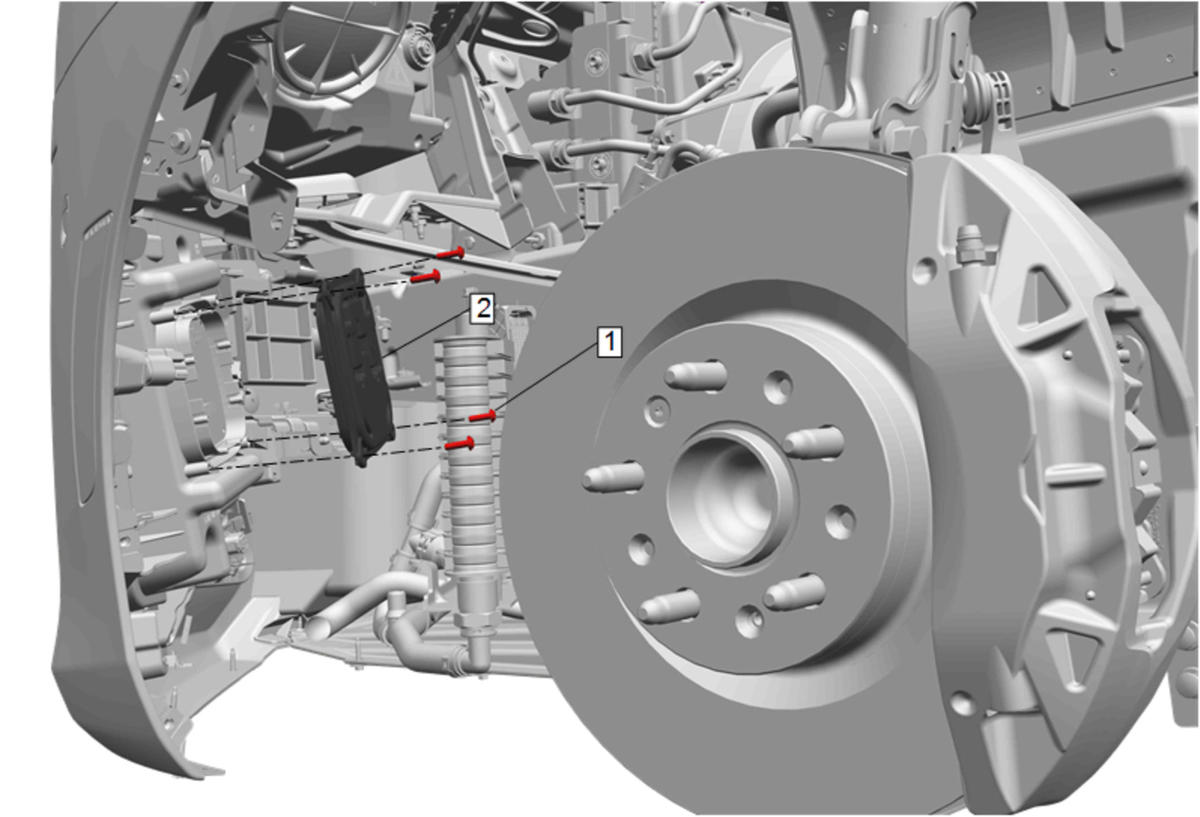

Callout	Component Name
Preliminary Procedures Front Wheelhouse Liner Replacement (CTS)Front Wheelhouse Liner Replacement (CTS-V) { If equipped }Auxiliary Radiator- Left Side - Reposition away - Engine Auxiliary Radiator Replacement - Left Side (LF3 LTG with KL9 V03)
1	Headlamp Automatic Control Module Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Headlamp Automatic Control Module Procedure Pull the headlamp automatic control module straight out and disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Headlamp Automatic Control Module Bolt [4x]

CAUTION:

Tighten
1.5 N.m (13 lb in)

Headlamp Automatic Control Module
Procedure
Pull the headlamp automatic control module straight out and disconnect the electrical connector.
