Front Wheelhouse Liner Replacement (CTS-V)

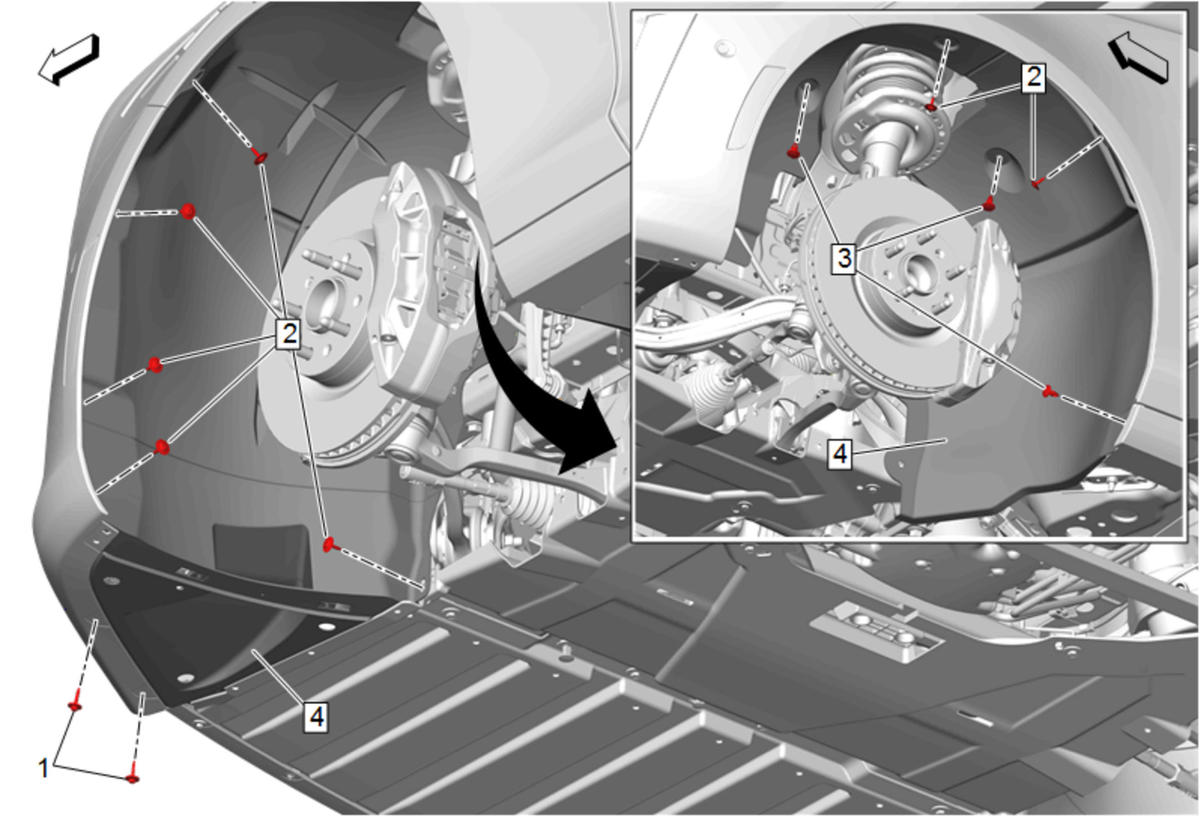

Callout	Component Name
Preliminary Procedures Engine Lower Front Splash Shield Replacement Front Tire Front Air Deflector Replacement Remove the front compartment air deflector screws. Front Bumper Fascia Air Deflector Replacement - Center (CTS-V)
1	Front Wheelhouse Liner Lower Bolt [2x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Wheelhouse Liner Bolt [7x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
3	Front Wheelhouse Liner Retainer [3x]
4	Front Wheelhouse Liner
