Engine Auxiliary Radiator Replacement - Left Side (LF3 LTG with KL9 V03)

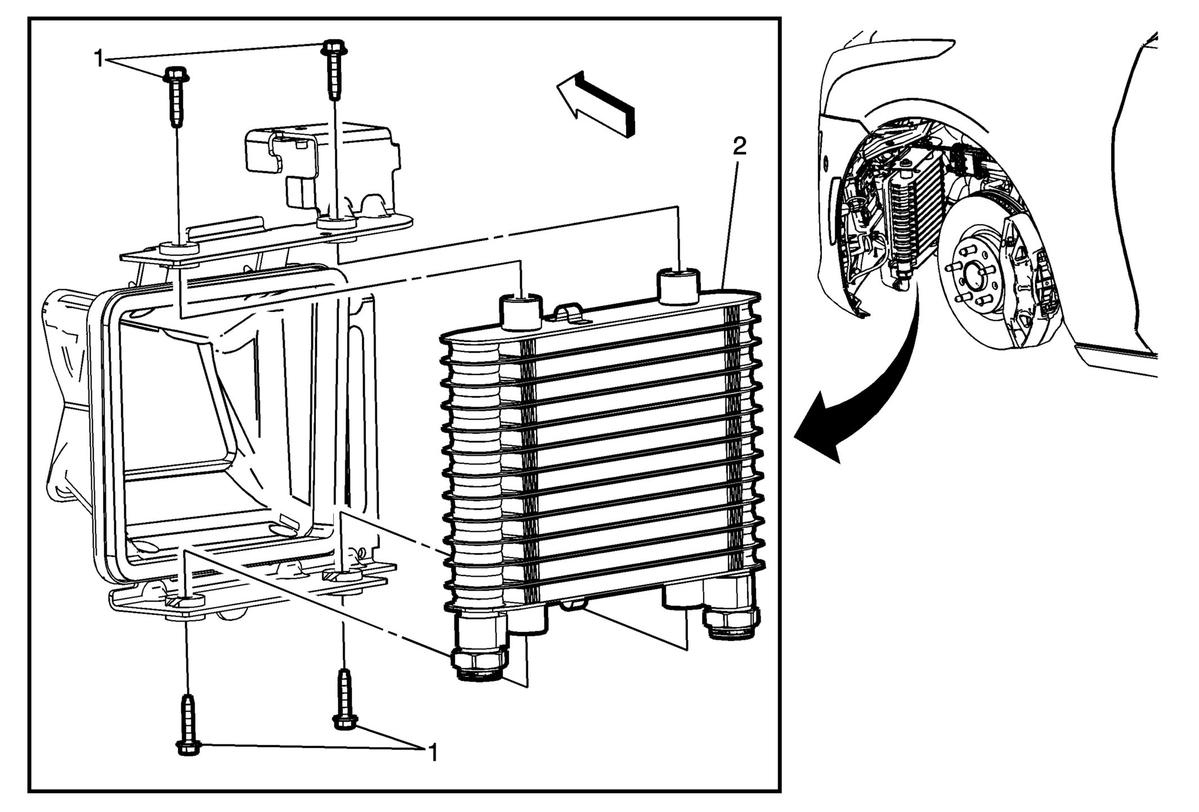

GM3601623Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the left front wheelhouse liner (4). Refer to Front Wheelhouse Liner Replacement (CTS) .
  2. Remove auxiliary radiator inlet hose from the auxiliary radiator. Refer to Auxiliary Radiator Inlet Hose Replacement (LF3) Auxiliary Radiator Inlet Hose Replacement (LTG with KL9 V03) .
  3. Remove auxiliary radiator outlet hose from the auxiliary radiator. Refer to Auxiliary Radiator Outlet Hose Replacement (LF3) Auxiliary Radiator Outlet Hose Replacement (LTG with KL9 V03) .
1 Auxiliary Radiator Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Auxiliary Radiator

Procedure

  1. Fill the charge air cooling system. Refer to Charge Air Cooling System Draining and Filling (LF3) .
  2. Check the charge air cooling system for leaks.
