Front Wheelhouse Liner Replacement (CTS)

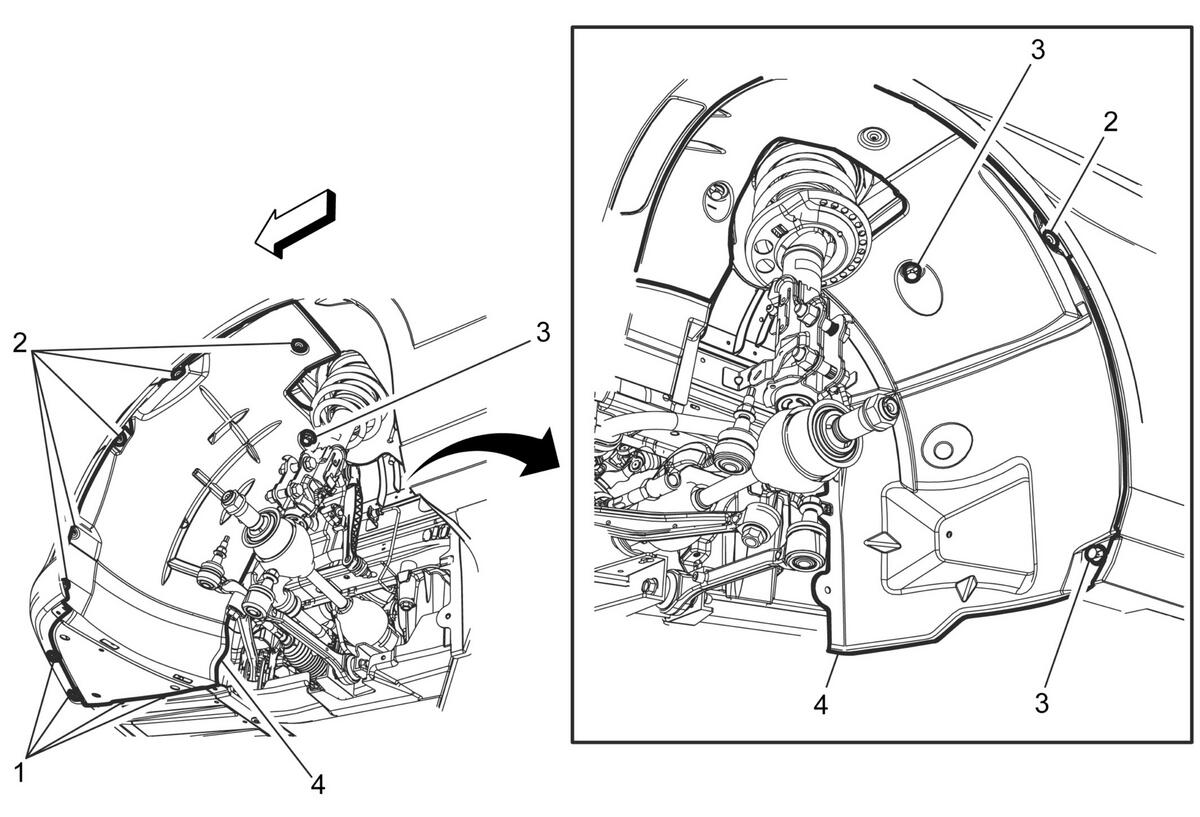

Callout	Component Name
Preliminary Procedure Remove the engine lower front splash shield. Refer to Engine Lower Front Splash Shield Replacement . Remove the front tire front air deflector. Refer to Front Tire Front Air Deflector Replacement .
1	Front Bumper Fascia and Air Deflector Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Wheelhouse Liner Fasteners (Qty: 6) Tighten 2.5 N.m (22 lb in)
3	Front Wheelhouse Liner Push-In Retainer (Qty: 3)
4	Front Wheelhouse Liner
