Front Floor Panel Carpet Replacement - Right Side

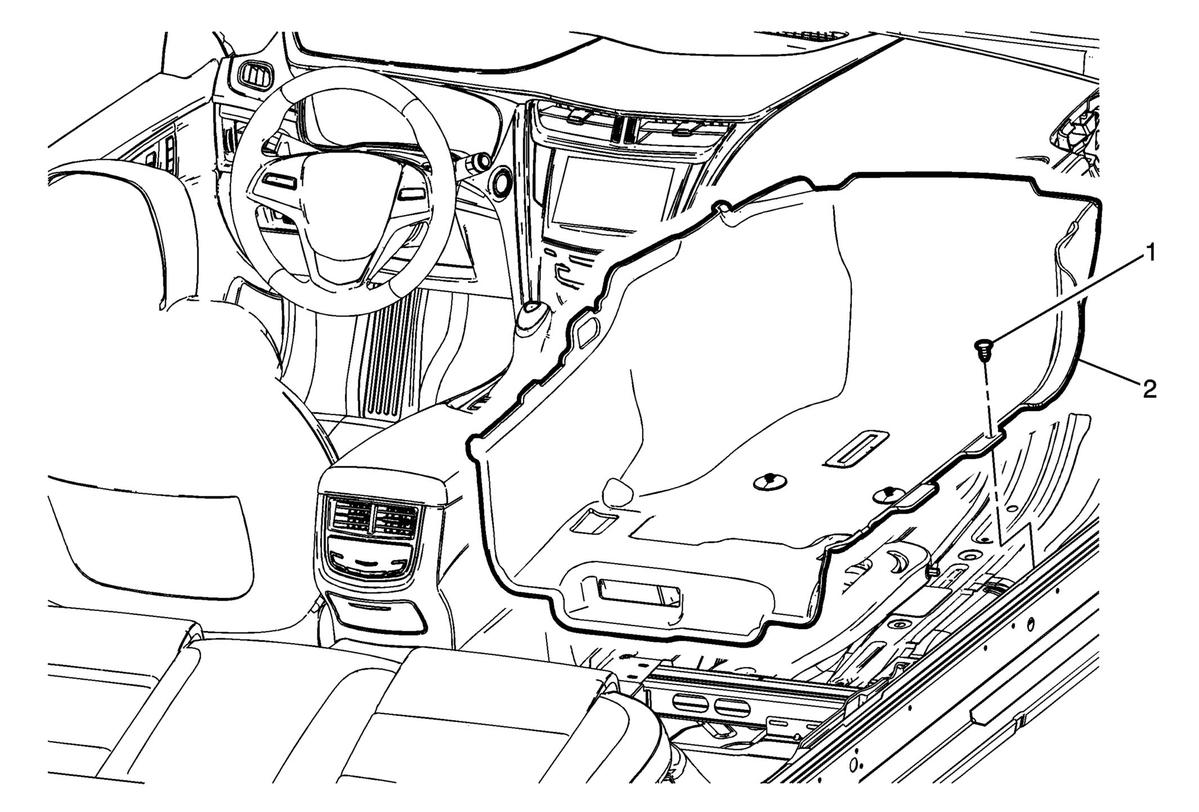

Callout	Component Name
Preliminary Procedures Remove the passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the passenger side front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement . Remove the front floor console side trim panel - right side. Refer to Front Floor Console Side Trim Panel Replacement - Right Side . Remove the center lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement . Remove the floor rear air outlet duct - right side, insert portion only. Refer to Floor Rear Air Outlet Duct Replacement - Right Side .
1	Floor Carpet Retainer Procedure Use a plastic flat-bladed tool to aid in the removal of the push-in retainer.
2	Front Floor Panel Carpet Assembly - Right Side

Callout

Component Name

Preliminary Procedures

Remove the passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the passenger side front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement .
Remove the front floor console side trim panel - right side. Refer to Front Floor Console Side Trim Panel Replacement - Right Side .
Remove the center lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
Remove the floor rear air outlet duct - right side, insert portion only. Refer to Floor Rear Air Outlet Duct Replacement - Right Side .

Floor Carpet Retainer
Procedure
Use a plastic flat-bladed tool to aid in the removal of the push-in retainer.

Front Floor Panel Carpet Assembly - Right Side
