Center Pillar Lower Trim Panel Replacement

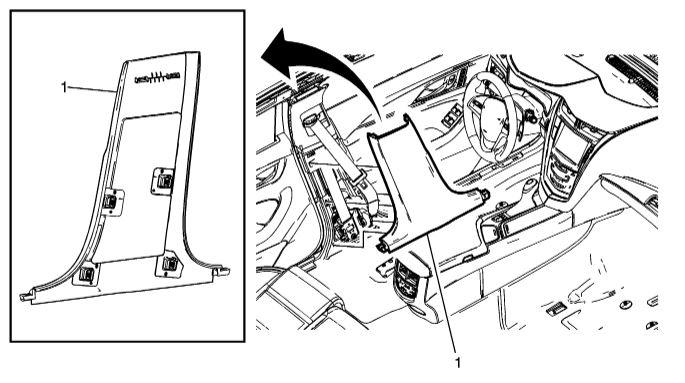

GM3462145
Callout Component Name

Preliminary Procedures

  1. Remove the front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement .
  2. Remove the rear side door sill garnish molding. Refer to Rear Side Door Sill Garnish Molding Replacement .
  3. Move the driver or passenger seat to the full forward position.
1 Center Pillar Lower Trim Panel Assembly
Procedure
Ensure the seat belt webbing does not become trapped during installation.
