Preliminary Procedures
- Remove the right side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
.
- Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement
.
- Remove the right side front floor panel carpet. Refer to Front Floor Panel Carpet Replacement - Right Side
.
|

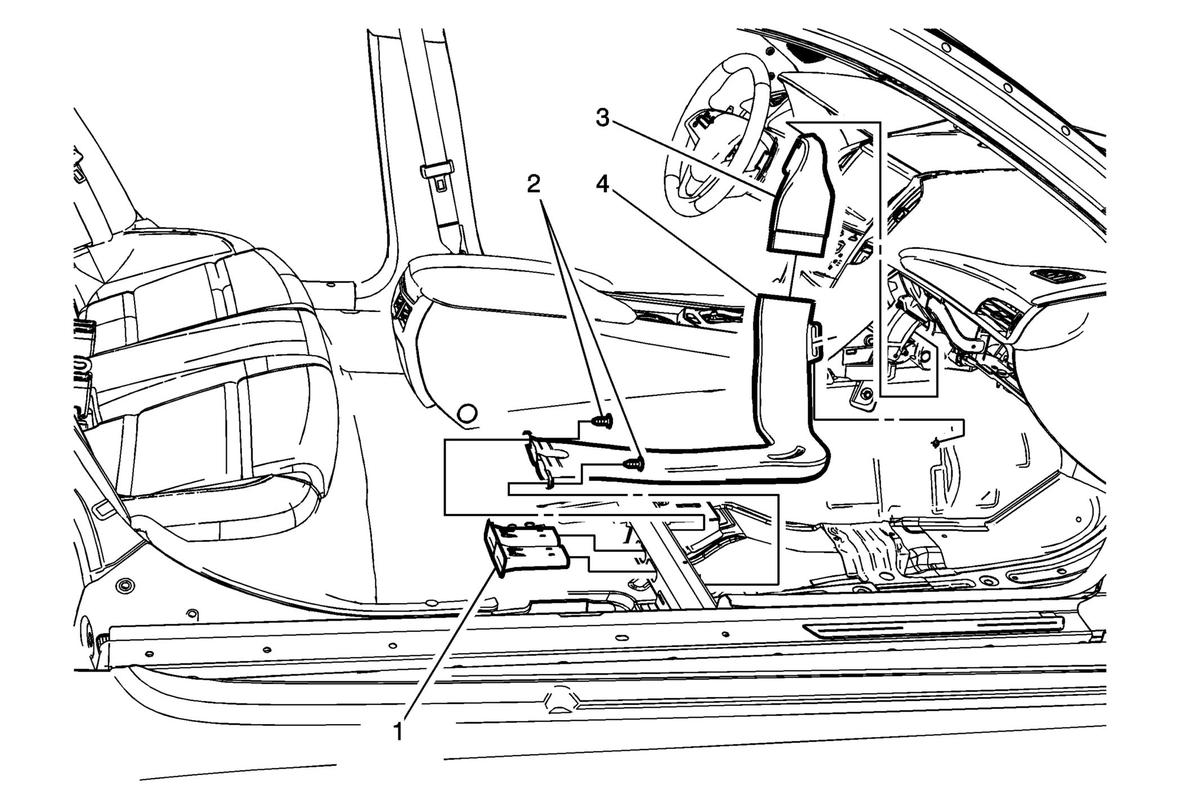

| 1 |
Floor Rear Air Outlet Duct - Right Side Central
Procedure
Replace the right side central floor rear air outlet duct as necessary. |
| 2 |
Floor Rear Air Outlet Duct Fastener - Right Side (Qty: 2) |
| 3 |
Floor Rear Air Outlet Duct Adaptor - Right Side Upper Procedures
- After removing the floor rear air outlet duct as an assembly, separate the adapter from the duct.
- Replace the need right side floor rear air outlet duct as necessary.
|
| 4 |
Floor Rear Air Outlet Duct - Right Side Lower Procedures
- Remove the floor rear air outlet duct and the floor rear air outlet adapter as an assembly.
- Replace the need right side floor rear air outlet duct as necessary.
|
