Rear Window Panel Trim Replacement (With DB3)

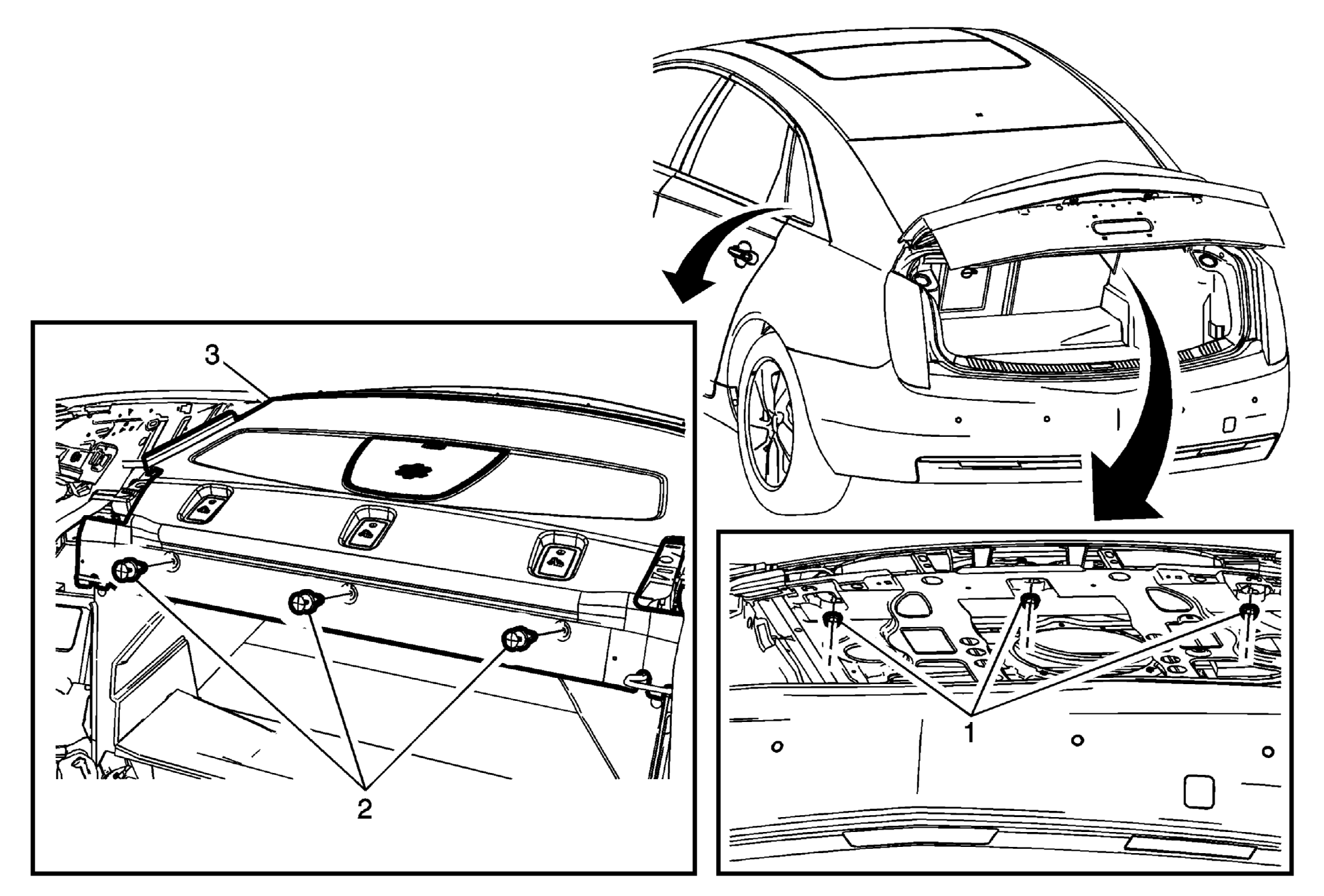

Fig 1: Rear Window Panel Trim & Fasteners (With DB3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Lower the rear window panel stowage compartment cover to access the retainers through the rear compartment. Refer to Rear Window Panel Stowage Compartment Cover Replacement . Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement . Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .
1	Rear Window Panel Trim Fastener (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Rear Window Panel Trim Push-In Fastener (Qty: 3) Procedure Fold down the rear seats to access the retainers.
3	Rear Window Panel Trim Assembly Procedure With the aid of an assistant, guide the rear window panel forward in the vehicle and upwards to clear the speaker system. When replacing the rear window panel trim assembly, transfer all necessary components. Ensure the rear window trim panel feet are seated into the rear window sheet metal drain shoe.
