Quarter Window Trim Finish Panel Replacement

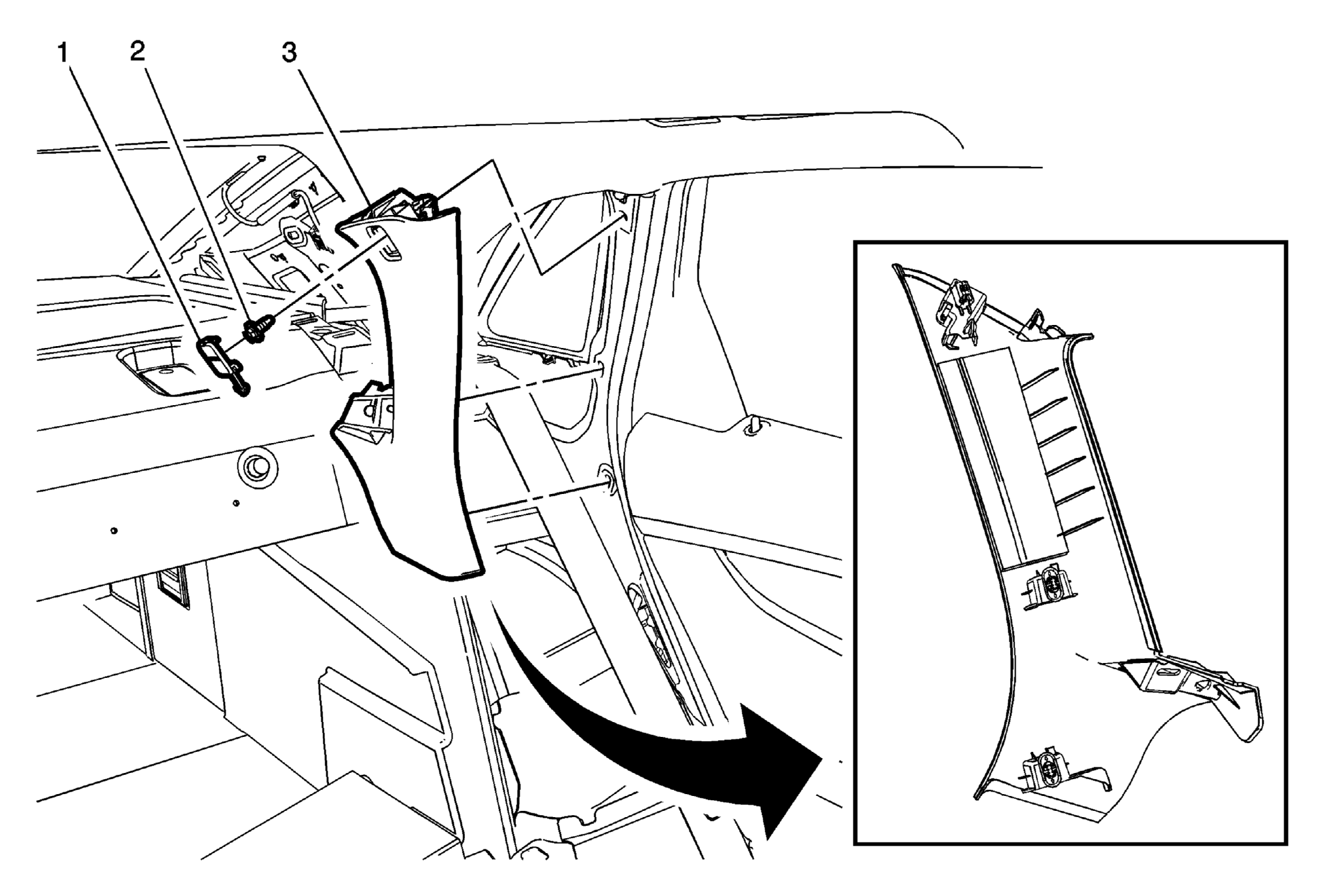

Fig 1: Quarter Window Trim Finish Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the rear seat back cushion bolster. Refer to Rear Seat Back Bolster Replacement . Remove the quarter window lower trim finish panel. Refer to Quarter Window Lower Trim Finish Panel Replacement .
1	Quarter Window Trim Finish Panel Bolt Cap
2	Quarter Window Trim Finish Panel Fastener CAUTION: Refer to Fastener Caution .
3	Quarter Window Trim Finish Panel Assembly Procedure Use a trim tool or equivalent to aid in the removal.
