Body Side Rear Window Garnish Molding Replacement

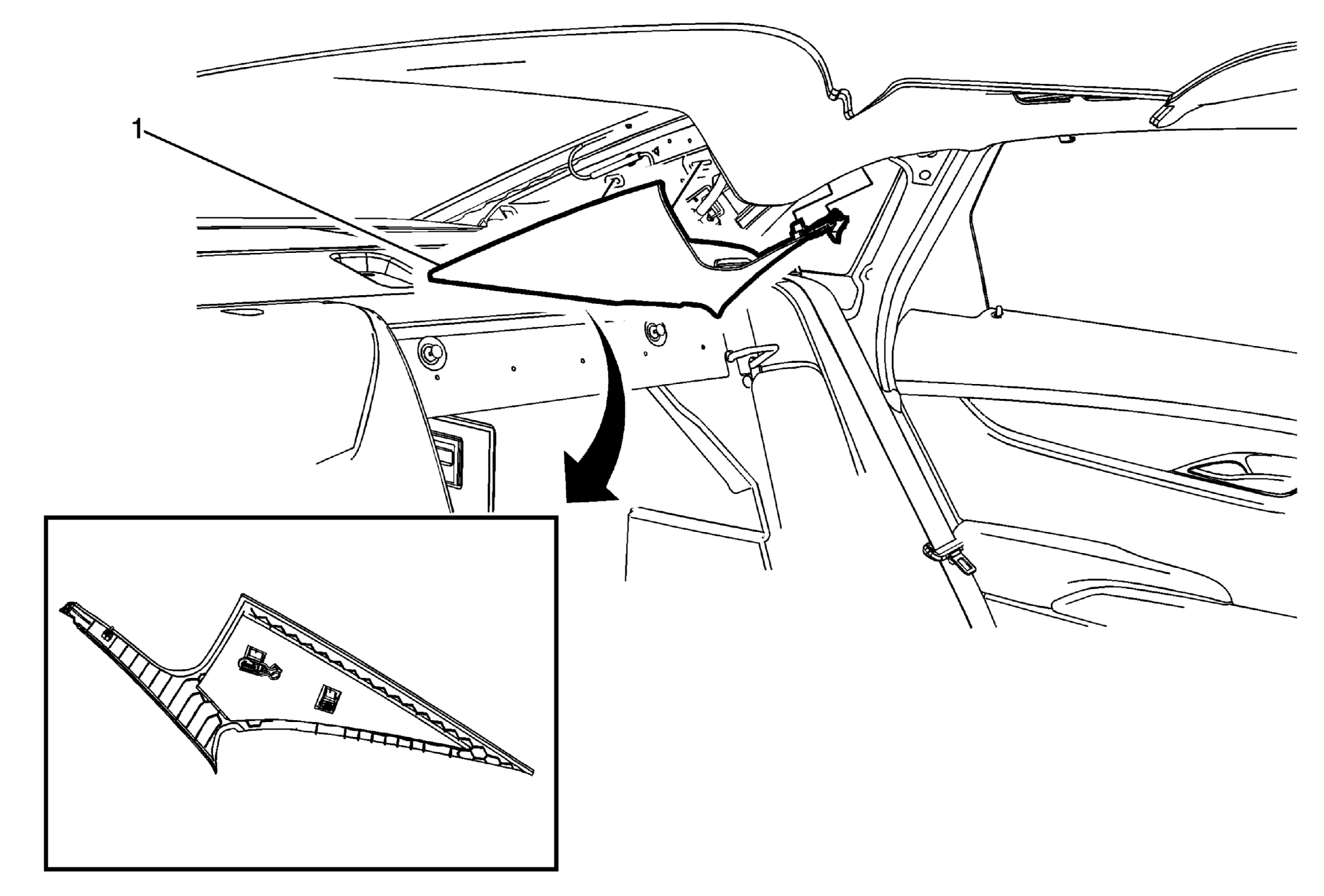

Fig 1: Body Side Rear Window Garnish Molding
GM2769008Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .
1 Body Side Rear Window Garnish Molding Assembly

Procedure

  1. The tether clip at the upper portion of the garnish molding MUST be replaced every time the body lock pillar upper trim panel is removed.
  2. Pull outward from the top front to release the upper portion of the molding, then move upward to release the tabs.
  3. Release the tether to remove.
