Rear Window Panel Stowage Compartment Cover Replacement

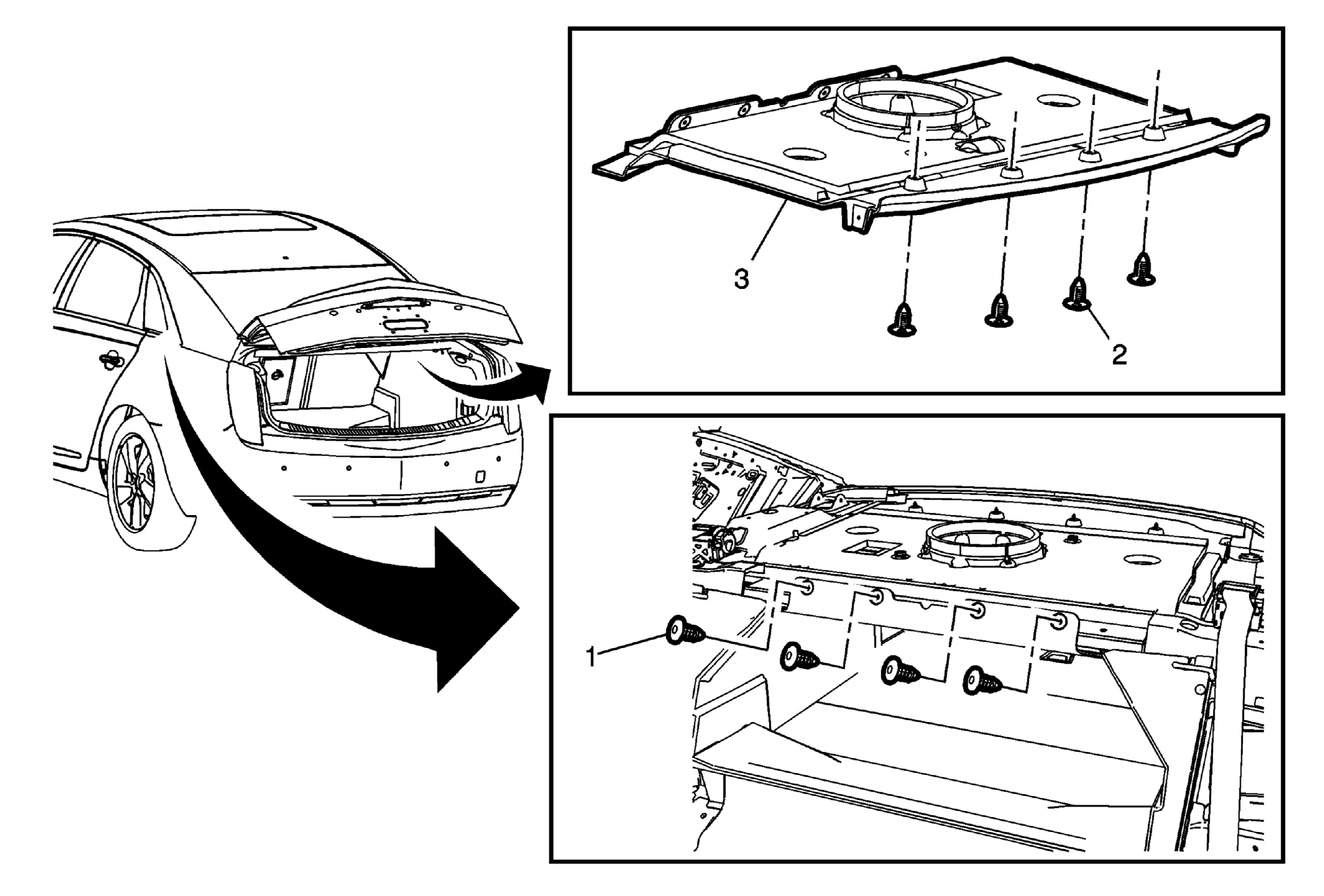

Fig 1: Rear Window Panel Stowage Compartment Cover & Retainers
GM2770207Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove or loosen the rear window panel trim in order to gain access to the rear window panel stowage compartment cover retainers. Refer to Rear Window Panel Trim Replacement (Without DB3) Rear Window Panel Trim Replacement (With DB3) .
1 Rear Window Panel Stowage Compartment Cover Retainer (Qty: 4)
Procedure
Use a trim removal tool to aid in the removal of the retainers.
2 Rear Window Panel Stowage Compartment Cover Retainer (Qty: 4)

Procedures

  1. Open rear compartment lid to access retainers.
  2. Use a trim removal tool to aid in the removal of the retainers.
  3. Disconnect electrical connector.
3 Rear Window Panel Stowage Compartment Cover Assembly
